• Model NO.：GD-6536C
• Usage：Determine The Distillation Characteristics
• Delivery Time：10 Working Days(If Urgent, We Can Push)
• Test Parameter：Petroleum Products
• Transport Package：Wooden Case for Gd-6536c
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

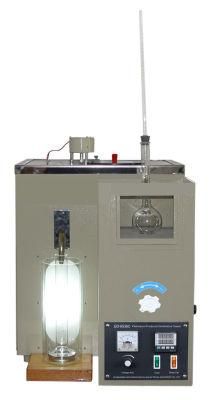

Product nameGD-6536C Low Temperature Laboratory Petroleum Distillation ApparatusPower supplyAC 220 V±10%, 50 HzHeating power1000 WReceiving cylinder100 ml. Scale division 1 ml.Distillation flask125 ml, as per GB/T6536 and ASTM D86.ThermometerTotal immersion. They are from -2 to 300 ºC and from -2 to 400 ºC. The scale divisions of them are 1 ºC.Flask support boardSiC. Diameters of holes are φ32mm, 38mm, and 50mm.Temperature controller(1) Range: 0 ºC to 60 ºC
(2) Accuracy: ±0.5ºC
(3) Display: LEDAmbient temperature≤30ºCRelative humidity≤85%Refrigerated compressorNew-type refrigeration compressorMaximum power consumption2500 W



Related Products

Parameter	GD-6536A	GD-6536B	GD-6536C	GD-0165
Standards	ASTM D86	ASTM D86	ASTM D86	ASTM D1160
Measurement range	Ambient temperature~400ºC	0~60ºC	0~60ºC	Ambient temperature~100ºC
Precision	±0.5ºC	±0.5ºC	±0.5ºC	±1ºC
Refrigeration	No	Yes(compressor)	Yes(compressor)	No
Single/Double unit	Double	Double	Single	LCD
Atmospheric/Vacuum	Atmospheric	Atmospheric	Atmospheric	Vacuum

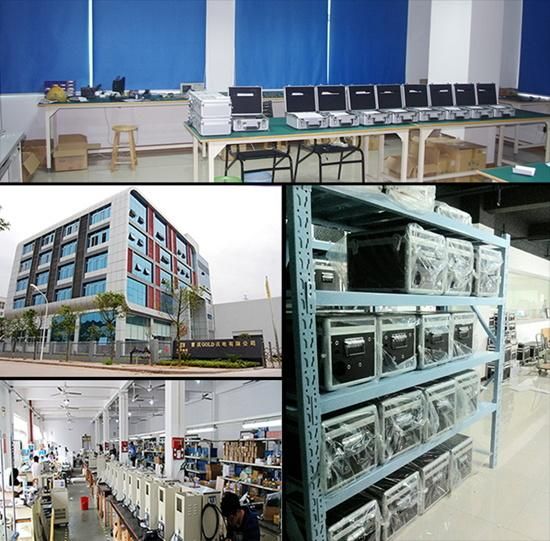

Company  Information:

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .
