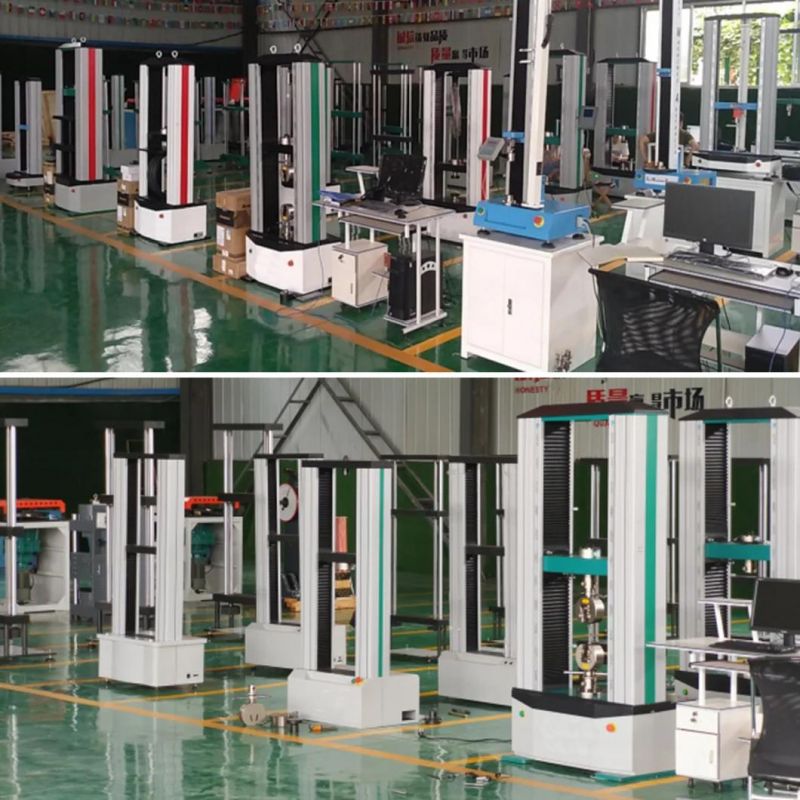

Computer Controlled Electronic Universal Bending Testing Machine

EBPu Electromechanical Equipment (Zhejiang) Co., Ltd.
  • Max Diameter of Workpiece：Customized
  • Mass Scope of Workpiece：Customized
  • Type：Universal Testing Machine
  • Maxcapacity：20kn
  • Accuracy Grade：1 or 0.5
  • Load Way：Electronic Load

Base Info

  • Model NO.：UTM-20
  • Loading Method：Static Load
  • Display：Computer Screen Digital Display
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC380V
  • Oil Cylinder Position：Servo Motor Control
  • Product Name：Computer Controlled Universal Testing Machine
  • Function 1：Tensile Testing Machine
  • Function 2：Compression Testing Machine
  • Function 3：Benting Testing Machine
  • Function 4：Yield Strength Testing Machine
  • Function 5：Deformation Testing Machine
  • Function 6：Auto Testing Machine
  • Function 7：Process Testing Machine
  • Crosshead Travel：1000mm
  • Effective Tensile Space：700mm
  • Effective Test Width：400mm
  • Load Resolution：1,300000
  • Deformation Resolution：1,500000
  • Load Control Speed：0.01 - 50 Kn,S
  • Transport Package：Plywood Box

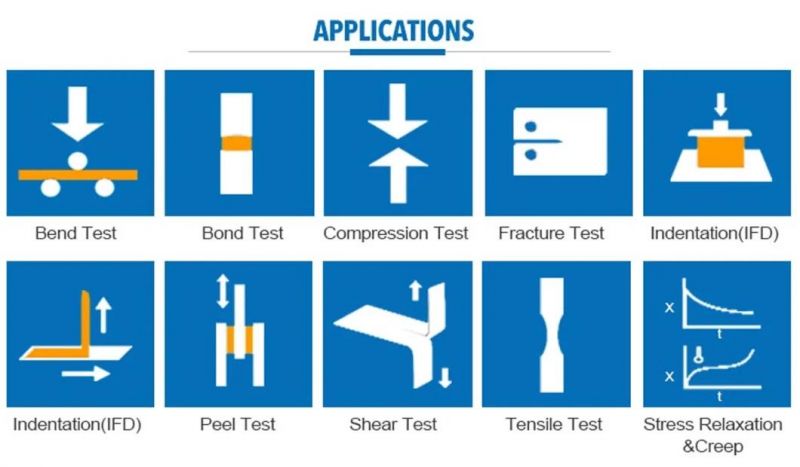

  • Specification：Tensile testing, compress testing, bending testing
  • Trademark：EBP
  • Origin：Zhejiang, China
  • HS Code：9024101000
  • Production Capacity：90 Sets Per Month

Description

Testing SpecificationMax.load 20KNLoad accuracyClass 1  (class 0.5 optional)Load range1%-100%FS  (0.4%-100%FS optional)Load resolution1/300000Deformation Measurement Range 0.2%~100%FSDeformation accuracy≤±1%  (≤±0.5% optional)Deformation resolution1/500000Load control speed0.01~50 kN/sDeformation control speed0.002~0.5mm/s Control SpecificationStress rate0.005%~5%FS/sStress rate accuracy range When rate < 0.05% FS/s, the precision± 2%
When rate ≥ 0.005%FS/s, the precision ±0.5%Deformation rate0.005%~5%FS/sDeformation rate accuracy range When rate < 0.05% FS/s, the precision± 1%
When rate ≥ 0.005%FS/s, the precision ±0.5%Displacement control accuracy ±0.5%Constant load, deformation and displacement control0.5%~100%FSConstant load, deformation and displacement control accuracy Preset value≥10%FN, within the ±0.1% of preset value;
Preset value<10%FN, within the ±1% of preset value Clamping SpecificationsTensile grip Manual Wedge FixtureRound specimen clamping rangeΦ4-9mm,(9-14,14-20mm optional)Flat specimen clamping range0-7mm,(7-14,14-20mm optional)Compression PlateΦ100x100 mmBending fixture3 point bending fixture (optional)Electronic Extensometer for metal materialYUU10/50 (optional)Large deformation extensometer for rubberDBX-800 (optional)4. Main Unit Feature:
4.1 Rigid floor-standing frame loading structure with upper space for tensile and lower one for compression and bending test


4.2 Precise ball screws withstand the whole loading with long-life use and compact layout.
4.3 Speed control system is set under the table and comprises the synchronous toothed belt and pulley for high-efficient transmission, which are featured with low noise and maintenance free.
4.4 Fixed crossbeam as upper ones, and sits above the frame and with middle crossbeam as loading beam with smooth travel when testing . The high-accuracy sensor is installed below the crossbeam.
4.5 Load automatic withstanding,, stress, strain control, cycle control and self programming.
4.6 High precision load sensor for guarantee accurate and stable measure
4.7 Wide crossbeam travel speed from 0.05 ~ 500mm / min
4.8 Overload protection: as test force exceeds 2%-5% of the maximum test force of each file, overload protection, it will stop.

5.Components Supply list
ItemMain bodyMaterial
1Upper beam1set
2Cross beam 1 set
3High precision ball screw 2 sets
5Servo motor Taiwan TECO Brand (Japan Panasonic Brand optional)
6Load sensorChina Brand  (America Transcell Brand optional)
7Reducers Taiwan Brand
8Synchronous beltChina Brand 1PC
9ComputerLenovo, 1PC with LCD screen and all new
10PrinterHPA4 color ink-jet printer, 1PC



ItemClampingQTY
1Manual Wedge Tensile fixture
(hydraulic automatic clamping fixtures optional)		1 set
2Round Jaws Φ4-9,(9-14,14-20mm optional)
Flat Jaws: 0-7,(7-14,14-20mm optional)		1 set
3Compression Plate 100x100mm1 set
43 point bending fixture (optional)1 set
5Electronic Extensometer for metal (optional)1 set
6Large deformation extensometer for rubber (optional)1 set


6. Data Acquisition system
61. The data acquisition system of machine consists of two high precision A/D conversion channel and the maximum resolution should be 1/300000 (minimum)
6.2. USB powered data -logger with USB 2.0 and RS- 232 pc interface, 5-keys joystick, 2MB RAM, Automatic recognition facility, Internal signal generator and 12-bit conversion resolution

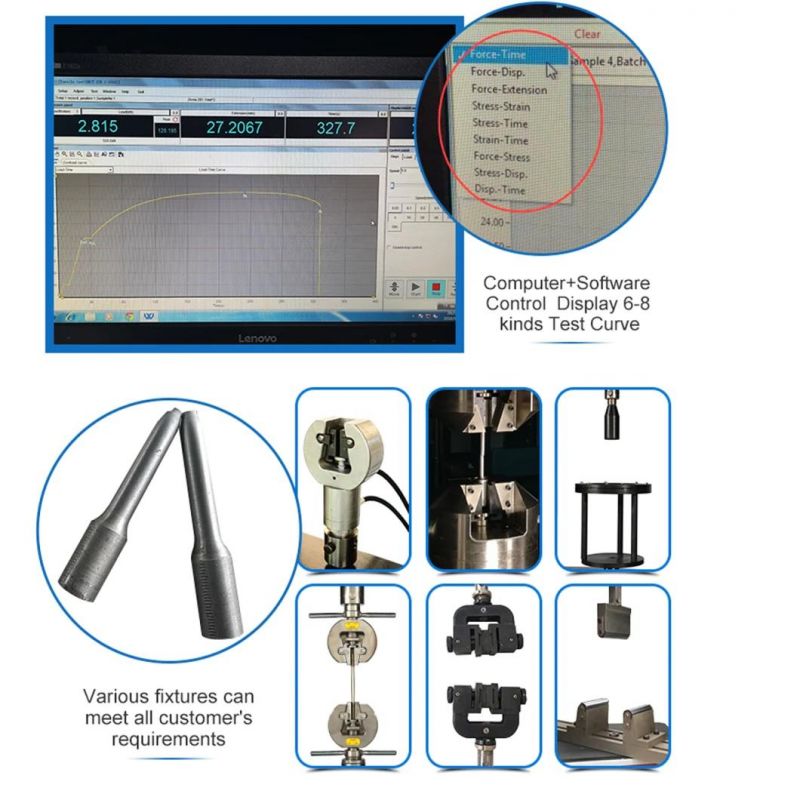

7. Software
7.1 Batch and report processing program facility in doc and exl format
7.2 The software is fully compliance with the corresponding international standards like ISO, ASTM and GB standards
