Digital Double Column Packages Drop Testing Equipment
Dongguan Haida Equipment Co., Ltd.- Type：Free Drop Test Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Display：Digital
- Control：Computer Control
Base Info
- Model NO.：HD-A520-1
- Weight：100-500Kg
- Power Source：AC220V
- Product Name：Package Drop Testing Equipment
- Design Criteria：ISO, JIS, Ista
- Maximum Load：100 Kg
- Drop Height：400~1300 mm
- Single-Wing Area (W*L)：350*760 mm
- Drop Panel Area (W*L)：1200*1400 mm
- Specimen Max. Size (L*W*H)：1000*1000*800 mm
- Outside Dimension (L*W*H)：1400*1200*1940 mm
- Control Box Size (L*W*H)：350*350*1100 mm
- Specimen Max. Weight：640 Kg
- Transport Package：Strong Wooden Case
- Specification：ISO 2248, JIS Z0202-87, GB,T4857.5-92
- Trademark：Haida
- Origin：China
- HS Code：9024109000
- Production Capacity：50 Sets Per Month
Description
Configuration :
- Outside material: advanced paint coat
- Display: LCD display
- Power system:drive device(imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)
- Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control
- Safety device:upper and lower limitation device, automatic off-power device if electricity leakage occurs

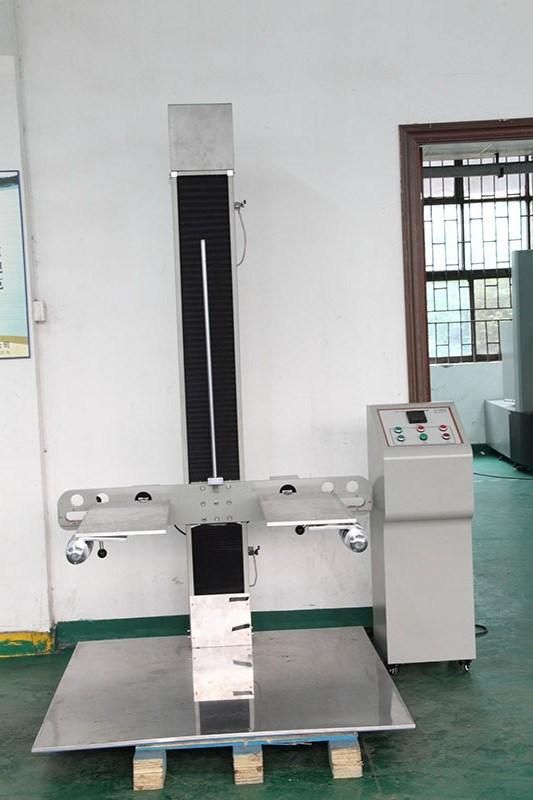

Product images:
Our Company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Our Services
After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Customer feedback:
