En 61000 Testing ESD Simulator Gun

Shanghai Shinegil Trading Co., Ltd.
  • Product Name：En 61000 Testing ESD Simulator Gun
  • Application：for Electrostatic Discharge Immunity Test
  • Standard：IEC , En 61000-4-2
  • Warranty：1 Year
  • Power Supply：Custom
  • OEM Service：Available

Base Info

  • Model NO.：ESD 30K
  • Certificate：ISO9001
  • Discharge Mode：Contact and Air Discharge
  • Discharge Circuits：150PF 330ohm
  • Discharge Trigger：Manual, Automatic and Remote
  • Transport Package：Wooden Case, Pallet
  • Specification：weight: 10kg
  • Production Capacity：2000sets,Year

Description

ModelESD 20KStandardIEC61000-4-2,GB/T 17626.2Operation7" Touch Panel DisplayOutput voltage0.2~±20kVPolarityPositive/ negative/ alternatingEnergy storage capacity150pFDischarge resistor330ΩDischarge current rise time0.6~1nsThe first peak current (±15%)7.5A at 2kV/ 15.0A at 4kV/ 22.5A at 6kV/ 30.0A at 8kV Current at 30ns (±30%)4.0A at 2kV/ 8.0A at 4kV/ 12.0A at 6kV/ 16.0A at 8kVCurrent at 60ns (±30%)2.0A at 2kV/ 4.0A at 4kV/ 6.0A at 6kV/ 8.0A at 8kVHolding Time (air discharge)≥5sDischarge ModesContact Discharge & Air DischargeOperating ModesSingle discharge & repetitive dischargesDischarge TriggerManual, automatic or remoteWorking ModeIEC level mode/ user mode/ program mode/ voltage rising patternsDischarge Interval0.05~9.99sDischarge Count1~9999Power SupplyAC220V ± 10%,50/60Hz (custom specific on demand)Ambient Temperature15ºC~35ºC
Company Information
Shanghai EMCSOSIN/ Shanghai SHINEGIL is a professional supplier that specialized in R&D, manufacturing and selling EMC testing equipments. We've been committed to the electromagnetic compatibility (EMC) testing field, offering professional equipments which are widely used in electronics manufacturing, electric power, new energy, telecommunication, aerospace, teaching, renewable energy, automotive and other industries, as well as scientific research. We provide customers with professional EMC system integration solutions. We are also ISO9001 certified.
Our self-developed electrostatic discharge (ESD) generator, electrical fast transient (EFT)/ burst generator, lightning surge generator, voltage dips simulator and so on enjoy a high reputation both at home and abroad. To provide best service and create value for customers is our eternal pursuit!
En 61000 Testing ESD Simulator Gun

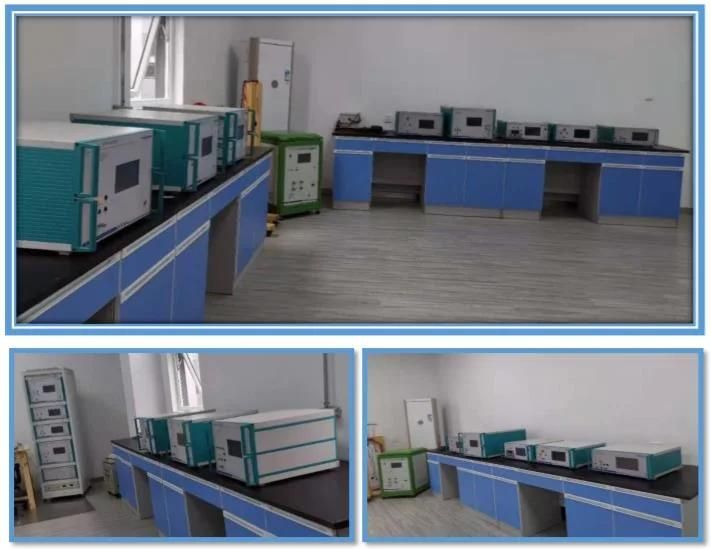

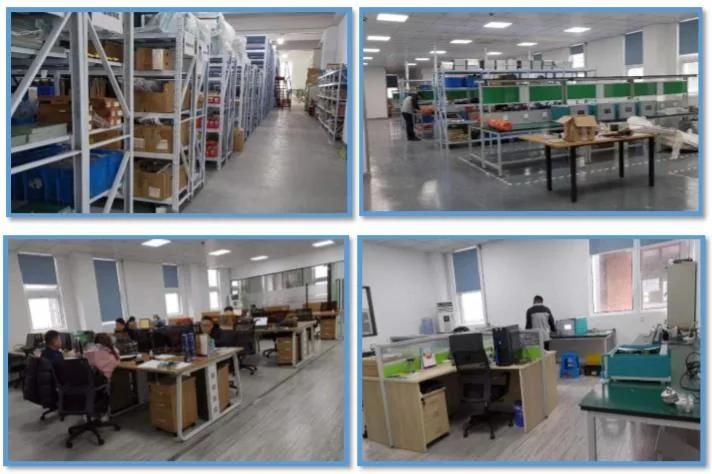

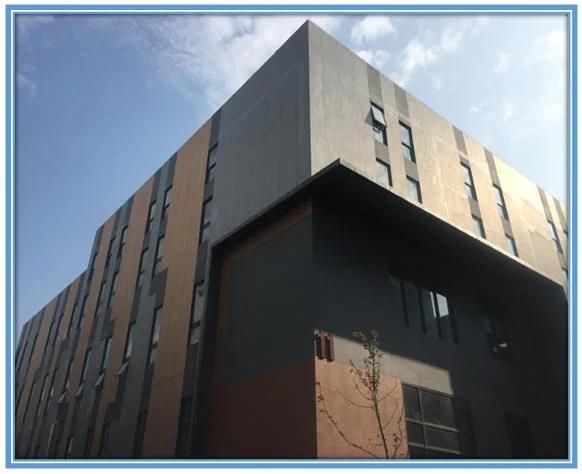

Manufactory and Office
En 61000 Testing ESD Simulator Gun
En 61000 Testing ESD Simulator Gun
En 61000 Testing ESD Simulator Gun

Qualification and CertificateEn 61000 Testing ESD Simulator GunEn 61000 Testing ESD Simulator GunEn 61000 Testing ESD Simulator GunEn 61000 Testing ESD Simulator GunEn 61000 Testing ESD Simulator GunEn 61000 Testing ESD Simulator Gun
Our Client
En 61000 Testing ESD Simulator Gun

Packing
En 61000 Testing ESD Simulator Gun

Our Service
1) Our product engineers and application technicians answer various questions and deal with emergencies in real time.
2) Professional engineers will guide the installation & debugging of equipments so that users can operate devices independently and solve problems in daily test.
3) Free warranty for 1 year and lifelong maintenance.
4) Free upgrade service for the users is available as per international standard updates requirements.

If you have any further query on EMC/ EMI testing equipments, electrical fast transient/ burst generators, pls do not hesitate to contact us at linda<at>shinegil<dot>com

We look forward to working with you sincerely!
