Portable Vibration Measuring Instrument Vibrometer

Guangzhou Amittari Instruments Co., Ltd.
  • Type：Vibration Testing Machine
  • Displacement Range：0.001-4.000 mm Equivalent Peak-Peak
  • Velocity：0.1-400.0 mm,S True RMS
  • Acceleration：0.1-400.0 M,S² Equivalent Peak
  • Accuracy：±5%+2 Digits
  • Transducer：Piezoelectric Accelerometer

Base Info

  • Model NO.：AV-160A
  • Power Supply：4X1.5vaaa (Um-4) Battery
  • Transport Package：Portable Plastic Case
  • Specification：140x70x30mm
  • Trademark：AM
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：999PCS,Month

Description

Transducer

Piezoelectric accelerometer

Accuracy±5%+2 digitsMeasurement RangeDisplacement :  0.001-4.000 mm  equivalent peak-peak / 0.04-160.0 milVelocity :              0.1-400.0 mm/s  true RMS / 0.004-16.00 inch/sAcceleration :     0.1-400.0 m/s² equivalent peak / 0.3-1312 ft/s² / 0.0-40gFrequency RangeDisplacement : 10Hz. ~ 1kHz.Velocity :10Hz. ~1kHz.

Acceleration: 10Hz. ~ 10kHz.

Operating ConditionsTemperature : 0-50 ºCHumidity : below 95% RHAnalogue OutputAC output 0~2.0V peak full scale (load resistance: above 10k)Power Supply4x1.5vAAA (UM-4) BatterySize140x70x30mmWeight130g (Not including Batteries)



Product Accessories









Standard Accessories

Main Unit



Magnetic suction seat

Probe (cone) / Probe (spherical) Portable box Brochures

Piezoelectric sensor

Carrying CaseOperation Manual



Optional Accessories



Headset

USB data output

Bluetooth data output



Buying Guide

When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.

The following three items are basic optional accessories choices

Standard Accessories+USB data output

Standard Accessories+Bluetooth data output



Bluetooth Accessories

Amittari  instruments generally can be supplied with Bluetooth data  utput function ( except few instruments ) . As Bluetooth data  output is included in optional accessories, not  standard delivery, it needs to be indicated when choose 10 meters to 100 meters distance can be chosen. Please kindly contact with the customer-service worker if you need Bluetooth data output.

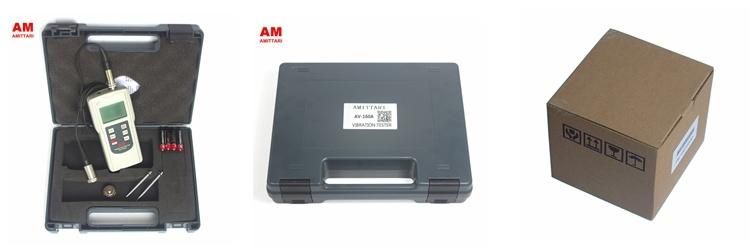

Package
