• Model NO.：BE-8101
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Transport Package：Each Set Protected with Resin Fiber and PP Film, T
• Specification：Test Space 600x700x600(customizable)
• Trademark：DGBELL
• Origin：Guangdong China
• HS Code：9031809090
• Production Capacity：100set ,Month

Basic Info.

Model NO. BE-8101 Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Under Transport Package Each Set Protected with Resin Fiber and PP Film, T Specification Test Space 600x700x600(customizable) Trademark DGBELL Origin Guangdong China HS Code 9031809090 Production Capacity 100set /Month

Product Description

Professional Manufacturers Battery Crush Tester According to UL1642/UN38.3

Product Image

Application

This battery crush test chamber is used for battery crush tests. This battery testing equipment simulates the conditions of the battery crushing and displays communication results. Besides, it has excellent security measures, such as an Explosion-proof pressure relief device, Smoke exhaust device, Explosion-proof chain. This battery testing equipment is a must-have test device for battery manufacturers and researchers.



Related Standard Test Requirements

• IEC 62133-2017
• UL 1642
• UN 38.3

Technical parameters

Model	BE-8101
Max. Pressure	1KN-20KN (Can be customized according to requirements)
Piston Diameter	32mm
Driving Mode	Hydraulic Press
Unit Conversion	Kg/N/Lb
Crush Range	0~300MM
Extrusion Accuracy	±1%
Extrusion Remaining Time	0~99 hours 99 mins 99 secs
Controlling Mode	PLC touch screen control system (7-inch touch screen) + remote control
Testing Space	W500xD300xH300 mm
Overall Dimension	W940xD780xH1620 mm
Observation Window	390 X 360mm (20mm thick tempered glass with explosion-proof grid)
Power Supply	AC 380V / 50HZ / 2.0KW
USB Interface	With USB interface, the test data can be output
Auxiliary Function	Explosion-proof pressure relief device, Smoke exhaust device, Explosion-proof chain
Options	Video monitoring system, Temperature, Voltage acquisition system, Fire extinguishing system

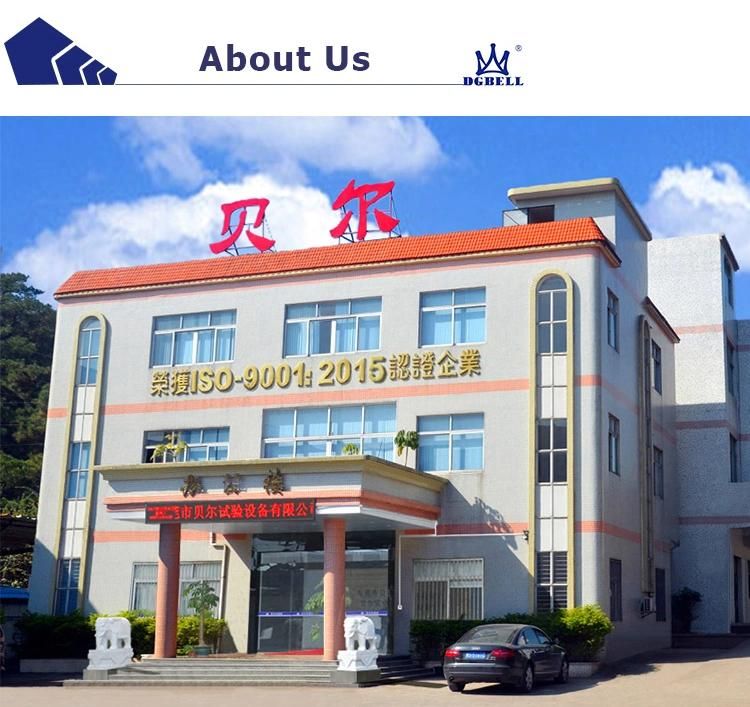

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.

15+ years experience in test chambers manufacturing, High performance for your projects.

With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.

Complete QC inspection process,Guarantee high quality of each machine.

1.IQC Incoming Quslity Control2.IPQC InPut Process Quality Control
3.FQC Final Quality Control
4.OQC Outgong Quality Control

Our service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;
3.Equipment Calibration;
4.Daily maintenance and maintenance of equipment Free technical training for visiting factories 24-hour Online contact Free software upgrades
Free information:
1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1.Social media 24 hours online communication;
2.Email contact;
3.Video Conferencing;
