• Model NO.：HZ-9003C
• Version：Hzpd-2000
• CPU：Clocked at 533MHz
• RAM：Running Memory 256MB DDR2, 1GB Nandflash
• SD Memory Card：8g TF Card Above
• Camera：3-Megapixel Camera, High-Definition Camera
• Frequency Range：20-150kHz
• Sensor：40kHz X 1ea
• Conductor Type：Stranded
• Application：Transformer
• Conductor Material：Copper Clad Steel
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9030899090
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZ-9003C Version Hzpd-2000 CPU Clocked at 533MHz RAM Running Memory 256MB DDR2, 1GB Nandflash SD Memory Card 8g TF Card Above Camera 3-Megapixel Camera, High-Definition Camera Frequency Range 20-150kHz Sensor 40kHz X 1ea Conductor Type Stranded Application Transformer Conductor Material Copper Clad Steel Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9030899090 Production Capacity 100 PCS/Month

Product Description

China Factory Good Quality Cheap Ultrasonic Partial Discharged PD Analyzer


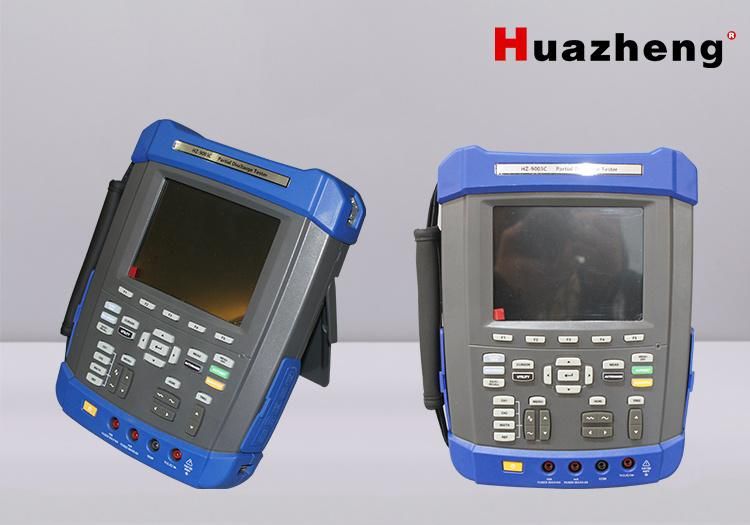

I.Portable partial discharger inspector Overview:

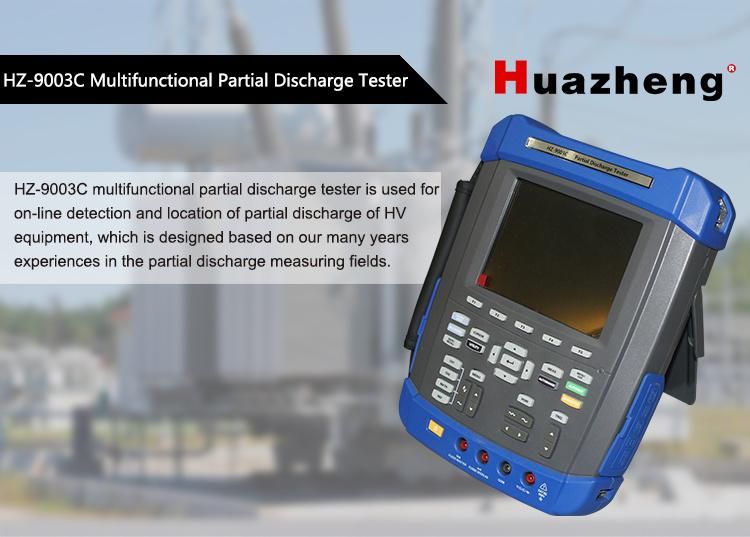

Portable partial discharge inspector is mainly used for live detection of high voltage electrical equipment. This product is simple to operate and adopts portable structure design which can inspect on line. It equips with specific sensors to detect various high-pressure devices, which can detect the insulation state changes inside the equipment timely. So the insulation failure could be dealt with in time.



II.Portable partial discharger inspector Technical Parameter:

       1) Sensor type: high frequency current sensor, UHF sensor, TEV sensor, ultrasonic sensor

       2) TEV transient earth voltage measurement: detecting frequency band: 1M-100MHz

Detection range: 0-80dbmV

Resolution ratio: 1dB

Accuracy: ±1dB

      3) Non-contact ultrasonic measurement: detection range: -5dBuV~70dBV

Resolution ratio: 1dB

Accuracy: ±1dB

Sensor sensitivity: -65dB

Sensor center frequency: 40Hz

Sensor diameter: 16mm

Heterodyne frequency: 38.4KHz

4) UHF measurement: detection range: -80dBm-0

  Detecting frequency band: 300MHz-1500MHz

  Resolution ratio: ±1dB

  Sensor sensitivity: equivalent altitude >13mm

5)HFCT high frequency current measurement: detection range: 1pC-10000pC

 Sensor detecting frequency band: 1MHz-100MHz

 Sensor transfer impedance:>12mV/mA

 Resolution ratio: 1pC

6) Contact ultrasonic measurement: Sensor detecting frequency band: 20kHz-200kHz

 Sensor peak sensitivity:>70dB

  Resolution ratio: 1dB

7)Synchronization mode: internal synchronization, wireless external synchronization

8) Alarm threshold setting and indication function: partial discharge indication (right side color bar indicator), tap shift indication (red color is suggested to shift the gear), battery power indication.

9) Working power: high capacity Li-ion battery pack, once charging can work six hours.

10) Peripherals storage interface: 16G Micro SD card



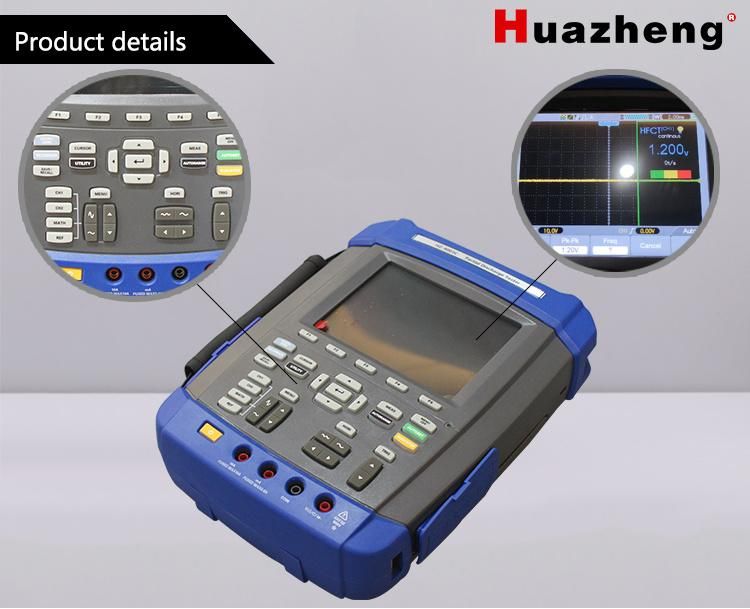

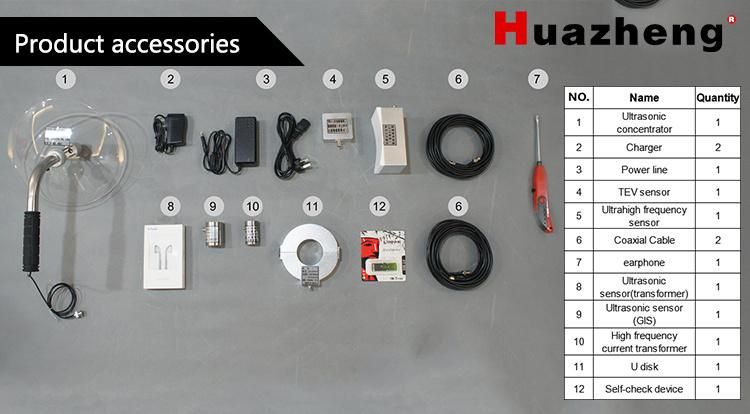

III.Portable partial discharger inspector Product Configuration:



Item	Description
Display screen	3.5 inch color LCDs; display resolution: 320×240
Sensor	UHF sensor; AE ultrasonic sensor; TEV transient voltage sensor;HFCT high frequency current sensor
External tapping	Sensor external interface: headset interface; Micro SD card (16G);Charging port; USB port
Ext. dimension	L×W×H (225mm×100mm×70mm)
Wight	0.5kg
