• Model NO.：STSZ-1Q
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Electric Digital
• Weight：300
• Power Source：380V ,220V
• Oil Cylinder Position：No
• Specimen Size：Dia 39.1X80mm
• Axial Load：10kn
• Lift Speed Range(mm/Min)：0.003-4.800
• Max. Stroke：35mm
• Max. Confining Pressure：1MPa
• Max. Back Pressure：0.6MPa
• Pore Water Pressure：0-1MPa
• Volume Change Range：0-50ml
• Min. Division：0.1ml
• Axial Displacement Range：0-30mm
• Transport Package：Wooden Case
• Specification：1.5CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STSZ-1Q Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Electric Digital Weight 300 Power Source 380V /220V Oil Cylinder Position No Specimen Size Dia 39.1X80mm Axial Load 10kn Lift Speed Range(mm/Min) 0.003-4.800 Max. Stroke 35mm Max. Confining Pressure 1MPa Max. Back Pressure 0.6MPa Pore Water Pressure 0-1MPa Volume Change Range 0-50ml Min. Division 0.1ml Axial Displacement Range 0-30mm Transport Package Wooden Case Specification 1.5CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

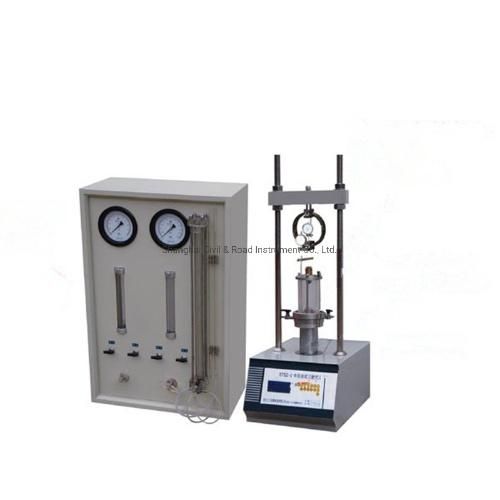

STSZ-1Q 10KN Triaxial Testing Equipment

Application:
Reliable information about soil strengths is a governing factor for safe and effective construction of embankments and foundation systems. Triaxial testing of soils involves preparing and mounting undisturbed or remolded specimens in a Test Chamber pressurized with water to create a confining pressure around the specimen. The Test Chamber is placed in a Pro-Loader Load Frame for testing by axial loading. Testing a specimen under confining pressure gives information about shear resistance, strength and cohesion, to predict such things as slope stability and structural foundation behavior. Tests can be conducted with specimens in unconsolidated-undrained condition as described in ASTM D2850, or consolidated-undrained or consolidated-drained conditions as noted in ASTM D4767.

Triaxial Control Panels regulate air and fluid pressures in the Testing Chambers through a system of burettes, valves and regulators, and are a central point for supply connections of air, water, and drains. These Control Panels also used for hydraulic conductivity/flexible wall permeability testing as described in ASTM D5084.

Bench Triaxial Test Apparatus is designed for laboratory and educational use as well as institute for civil engineering test. It is a type of strain controlled apparatus to determine the specimen with maximum confining pressure of 1Mpa and sample diameter of Φ39.1x80mm,Φ61.8x125mm. It is used to determine the strength and deformation characteristics of the soil specimen under the static axial load. It can perform unconsolidated-undrained shear test (UU), consolidated-undrained shear test (CU) and consolidated-drained shear test (CD).

Technical parameters:


Specimen size	Φ39.1×80mm
Axial load	10kN
Lift speed range(mm/min)	0.003~4.800
Max. Stroke	35mm
Max. confining pressure	1MPa
Max. back pressure	0.6MPa
Pore water pressure	0-1MPa
Volume change range	0-50ml
Min. division	0.1ml
Axial displacement range	0-30mm
