Laboratory Automatic Package Drop Impact Test Machine
Dongguan Haida Equipment Co., Ltd.- Warranty：1 Year
- Type：Drop Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Dynamic Load
Base Info
- Model NO.：HD-A520
- Display：Digital
- Control：Computer Control
- Weight：100-500Kg
- Power Source：AC220V
- Design Criteria：ISO, JIS, Ista
- Model：HD-A520
- Display Method：Digital Height Indicator (Optional)
- Drop Height：300~1300 mm
- Drop Panel Area (W* L)：1700*1400 mm
- Specimen Max. Size(L* W* H)：1000* 700* 1000 mm
- Arm Size：290*240*8 mm
- Drop Flat Deviation：< 1 Degree
- Specimen Max. Weight：60 Kg
- Outside Dimension (L* W* H)：1700* 1400* 2015 mm
- Transport Package：Strong Wooden Case
- Specification：ISO 2248, JIS Z0202-87, GB,T4857.5-92
- Trademark：Haida
- Origin：China
- HS Code：9024109000
- Production Capacity：50 Sets Per Month
Description

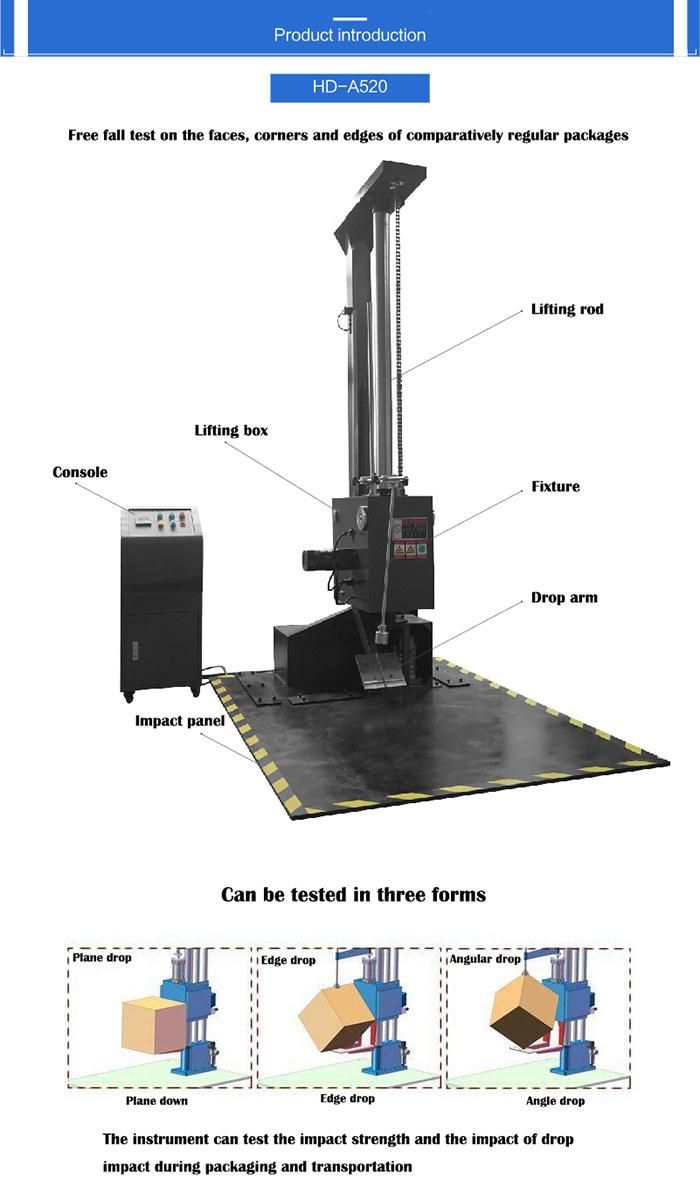

During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And this device simulates the drop/ fall of a finished product to evaluate the damage. All the rhombohedrons, angles and faces of the products can be tested.

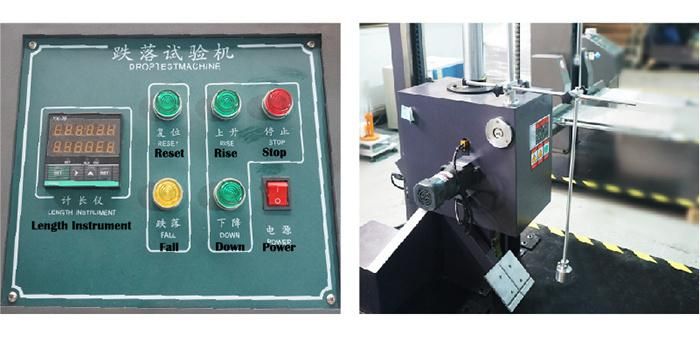

Operation of control chamber:
A. It adopts electromagnet control system to control the dropping swing
B. It has automatic return function, electric dropping and electro-motion rising device and dropping test function
C. The testing height can be digital set up.
Test standards:
GB/T4857.5,ISO 2248,JIS Z0202,ASTM D5276
5. Configuration
After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
FAQ
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Operation of control chamber:
A. It adopts electromagnet control system to control the dropping swing
B. It has automatic return function, electric dropping and electro-motion rising device and dropping test function
C. The testing height can be digital set up.
Test standards:
GB/T4857.5,ISO 2248,JIS Z0202,ASTM D5276
5. Configuration
- Outside material: advanced paint coat
- Display: LCD display
- Power system:drive device(imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)
- Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control
- Safety device:upper and lower limitation device, automatic off-power device if electricity leakage occurs
- Accessories:electric wire 1 piece, guarantee certificate 1 piece, operational manual 1 piece
