• Model NO.：STYJG-500C
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：850
• Power Source：AC380V
• Oil Cylinder Position：Under
• Capacity：500kn
• Measuring Range：0-500kn
• Relative Indication Error：1%
• Bearing Plates Size：Dia 995mm,800mmx800mm
• Max. Distance Between Upper and Lower Pl：270mm
• Piston Stroke：300mm
• Piston Diameter：250mm
• Rated Pressure of The Hydraulic Pump：15MPa
• Power：0.75kw
• Features：Hydraulic Loading and Electronic Force Measurement
• Transport Package：Wooden Case
• Specification：950x400x1160mm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STYJG-500C Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Manual Control Weight 850 Power Source AC380V Oil Cylinder Position Under Capacity 500kn Measuring Range 0-500kn Relative Indication Error 1% Bearing Plates Size Dia 995mm,800mmx800mm Max. Distance Between Upper and Lower Pl 270mm Piston Stroke 300mm Piston Diameter 250mm Rated Pressure of The Hydraulic Pump 15MPa Power 0.75kw Features Hydraulic Loading and Electronic Force Measurement Transport Package Wooden Case Specification 950x400x1160mm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

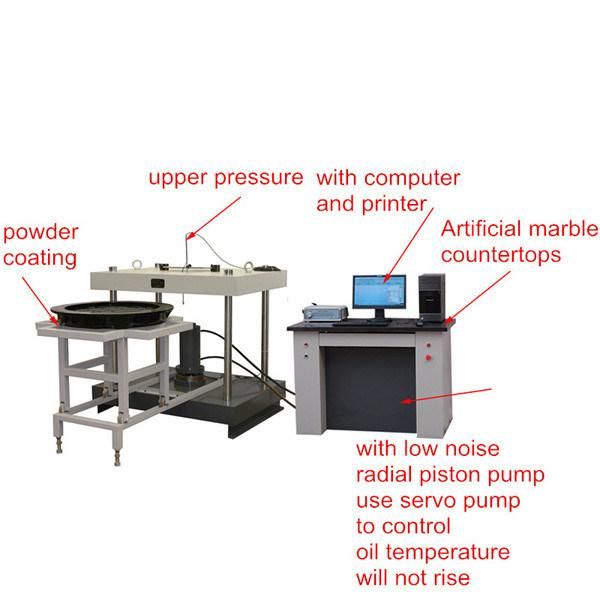

STYJG-500C PC Controlled Manhole Cover Compression Testing Machine

Application: perform compressive strength test for manhole covers and determine mechanical properties for other materials.

Features: hydraulic loading and electronic force measurement; PC controlled, max. load maintenance, power-off data protection; automatically data processing by software and testing report printing.

Parameters:


Capacity	500kN
Measuring range	0-500kN
Relative indication error	±1%
Bearing plates size	Φ995mm,800mm×800mm
Max. distance between upper and lower plates	270mm
Piston stroke	300mm
Piston diameter	250mm
Rated pressure of the hydraulic pump	15MPa
Power	0.75kW
