Full Automatic High Temperature Bending Tester Used to Test The Bending Strength of Refractories at High Temperature and Normal Temperature
Zhengzhou CY Scientific Instrument Co., Ltd.- Service Temperatur：1450,1600c
- Measure Accuracy：0.1%
- Temp.-Controlling Accuracy：Addition and Subtraction 1c
- Transport Package：Wooden Case
- Specification：176mm x 350mm x 356mm
- Trademark：CYKY
Base Info
- Origin：Zhengzhou, China
- HS Code：9013809000
- Production Capacity：200
Description
Instrument features of Full automatic high temperature bending tester:
1. The main engine adopts international popular portal frame structure, multi-stage mechanical deceleration, vertical mechanical rigidity beam loading;
2. Ac frequency conversion speed control, imported inverter, controlled loading in the test process;
3. Mechanical electric sample pushing, using an integrated miniature reduction motor, the process of sample pushing is completed automatically;
4. ICM industrial field control module with high precision anti-interference performance is adopted, and the control software PID algorithm is adopted.
5. The collection cycle of pressure value is less than 2ms, and the control cycle is less than 10ms, ensuring real-time follow-up control, which is 100% higher than the control precision of similar products. Load stress control adopts force feedback double PID frequency conversion speed control.
6. The loading device not only meets the requirements of (0.15 ± 0.015)MPa/s; And (0.05±0.005)MPa/s standard loading rate, but also evenly applied to the sample higher than 1MPa/s fast and lower than 0.01MPa/s slow loading, recorded and indicated the sample fracture load and timely load, indicating the accuracy of up to 0.5 class.
7. The equipment will operate automatically after starting up and record and draw "temperature-time" and "stress-time" curves.
8. The control system adopts industrial IPC for full automatic control, multi-window control software under Windows system, automatic control of temperature and loading process, real-time dynamic recording of test results, and playback of the whole process of the test. The test data is stored in ACCESS database mode, and can be checked and inquired by third-party software at any time.
9. The software and hardware dual filtering anti-interference processing effectively ensures the accuracy and reliability of temperature and pressure signal acquisition and sample pushing position under high temperature electromagnetic environment.

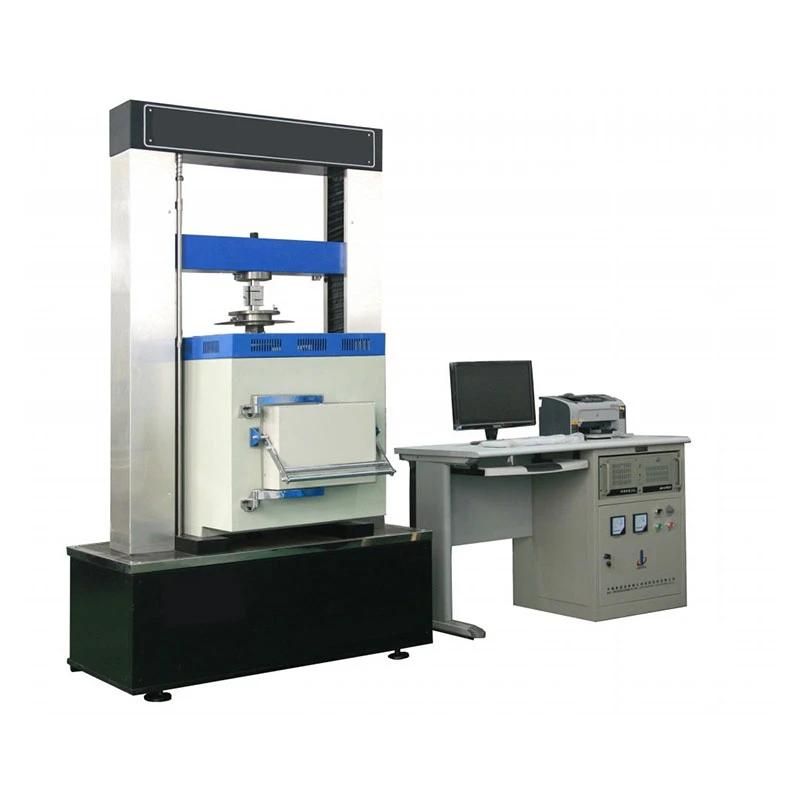

Product pictures of Full automatic high temperature bending tester:
Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
More questions, please contact customer service.
