• Model NO.：HM-YDQW
• Weight：150kg
• Power Source：AC380V
• Frequency：50Hz
• Phase：Single Phase
• Partial Discharge：1-3PC
• Output Voltage：0-280kv
• Dielectric Loss：<0.3%
• Noise：≤60dB
• Waveform Deviation Factor：<3%
• Rated Capacity：150kVA
• Output Voltage(Customized)：AC 0-1000kv
• Rated Capacity(Customized)：5-1000kVA
• Insulation Medium：Oil,Dry and Sf6 Gas Type
• Model Name：AC Hipot Tester
• Parameter：Customized
• Transport Package：Wooden Box with Foam Inside
• Specification：800 (L) * 710 (W) * 1380mm (H)
• Trademark：HMDQ
• Origin：Hubei, China(Mainland)
• HS Code：9030339000
• Production Capacity：50sets,Month

Basic Info.

Model NO. HM-YDQW Weight 150kg Power Source AC380V Frequency 50Hz Phase Single Phase Partial Discharge 1-3PC Output Voltage 0-280kv Dielectric Loss <0.3% Noise ≤60dB Waveform Deviation Factor <3% Rated Capacity 150kVA Output Voltage(Customized) AC 0-1000kv Rated Capacity(Customized) 5-1000kVA Insulation Medium Oil,Dry and Sf6 Gas Type Model Name AC Hipot Tester Parameter Customized Transport Package Wooden Box with Foam Inside Specification 800 (L) * 710 (W) * 1380mm (H) Trademark HMDQ Origin Hubei, China(Mainland) HS Code 9030339000 Production Capacity 50sets/Month

Product Description

Power Frequency Partial Discharge Testing Equipment /hipot tester

I.Overview

Power Frequency Partial Discharge Testing Equipment /hipot tester is mainly used for testing frequency voltage insulation level of various insulation materials, insulation structure and electrical products, also as partial discharge frequency testing power supply for testing object such as transformer, mutual inductor and lightning arresters. It widely used in electrical manufacturing, power operation departments, research institutes and universities.



II.Configuration

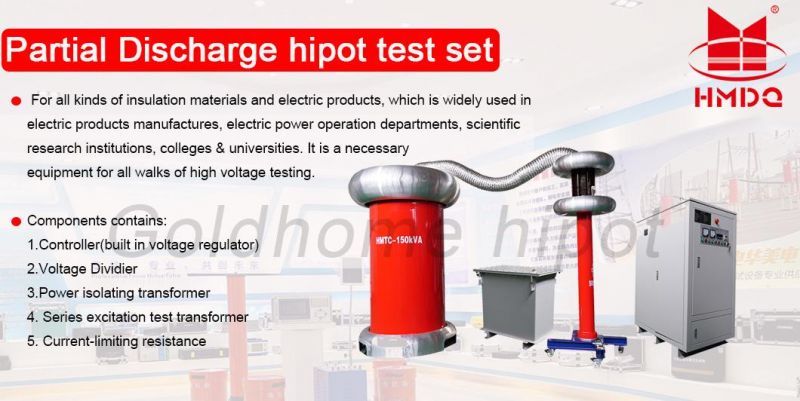

HM-YDQW HV Test Equipment Power Frequency Partial Discharge Testing Equipemtn Composition.
1.Testing transformer

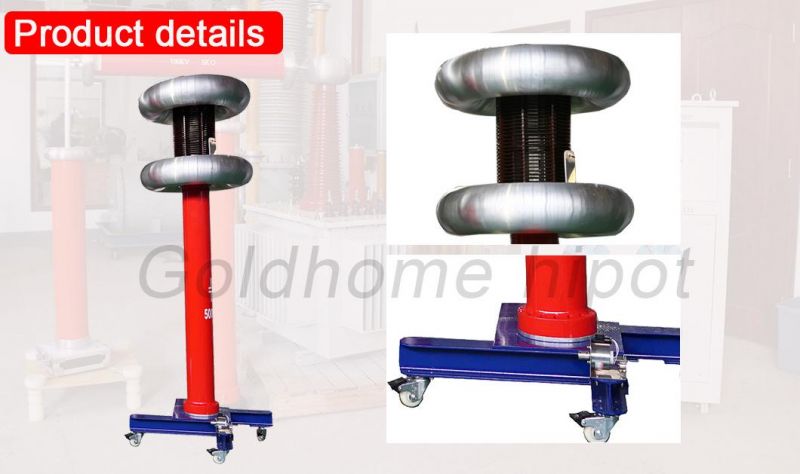

2.Voltage Divider (concurrently as coupling capacitor)
3.Current Limiting Resistors
4.Power Isolation Filter
5.Console
6.Limb voltage regulator ( built-in Console)

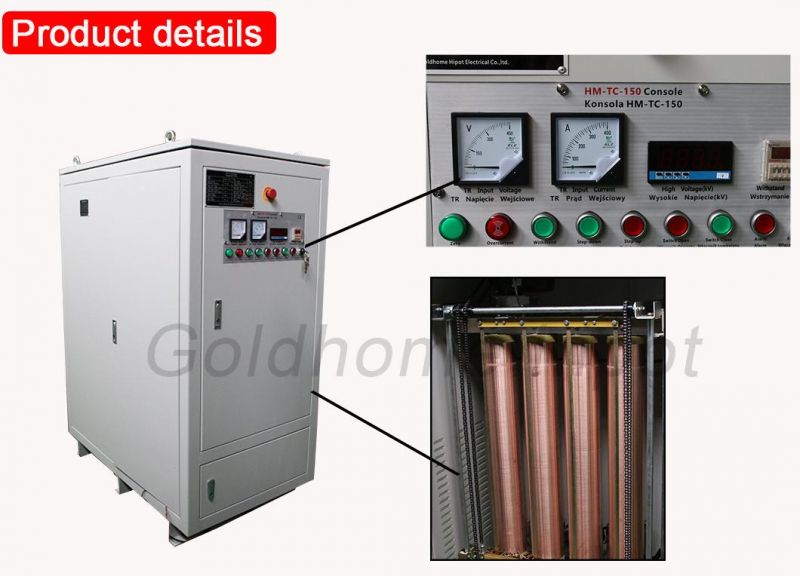

III. Function Of The Console
The Console is equipped with over-current protection function, upper and lower voltage function, voltage withstand time recording, protection function, emergency button, alarm bell and door linkage.
The Console is equipped with capacitance voltage divider measuring voltmeter (digital
three-and-a-half), transformer primary winding ammeter and voltmeter.
The Console is equipped with upper and lower voltage regulator protection.
Power of Console is single phase power ;Running time: same as Testing Transformer.

Power Frequency Partial Discharge Testing Equipment /Hipot Tester
Main Parameter:


Rated Capacity	5-1000kVA	Impedance Voltage	10%
Input Voltage	AC 220V/AC 380V	Output Voltage Waveform	Power frequency, sine wave
Output Voltage	AC 0-1000kV	Surface Temperature	Oil immersed:<55ºC Gas: <50ºC
Partial Discharge	Under rated voltage≤5PC	No-load Loss	0.2%-0.35%
Insulation Mode	Oil, Gas	Allowed Continuous Operation Time	1min as per

Remark:Power Frequency Partial Discharge Testing Equipment can be customied according to  user's needs.


Take 150kVA/280kVA for example, one of the components parameter as belowTechnical Parameter for Test TransformerPhase :single phase
Frequency:50Hz
Rated capacity:150kVA
Input voltage:0.4kV
Input current:375A
Output voltage:0~280kV
Output current: 0.53A
Waveform deviation factor:≤3%
Measurement winding voltage ratio:1000:1
Insulation level: low voltage input terminal to ground power frequency voltage withstand level 5kV/1min
Dielectric loss: <0.3%
Noise:≤60dB
Partial discharge: 0-250kV ,the partial discharge is ≤1-3PC; 0-280kV, the partial discharge is ≤3-5pc
Running time: under rated voltage and current,start form environment temperature,can run 30min.
under 2/3 rated voltage and current, continuous running.
Single test transformer impedance :  3%-12%
Waveform deviation factor: <3%

Remark:Inquriy All parameter of the whole test equipment,please contact us.


Power Frequency Partial Discharge Testing Equipment /hipot tester

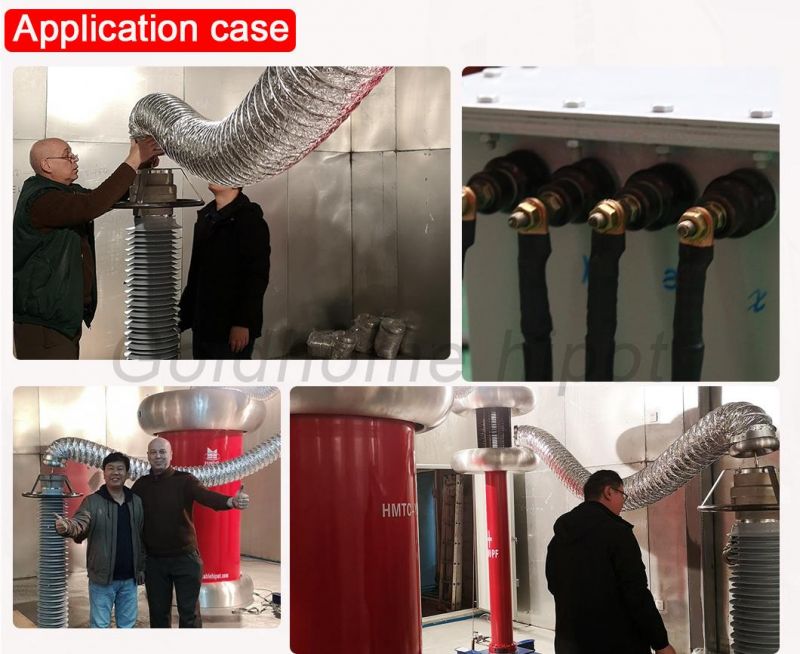

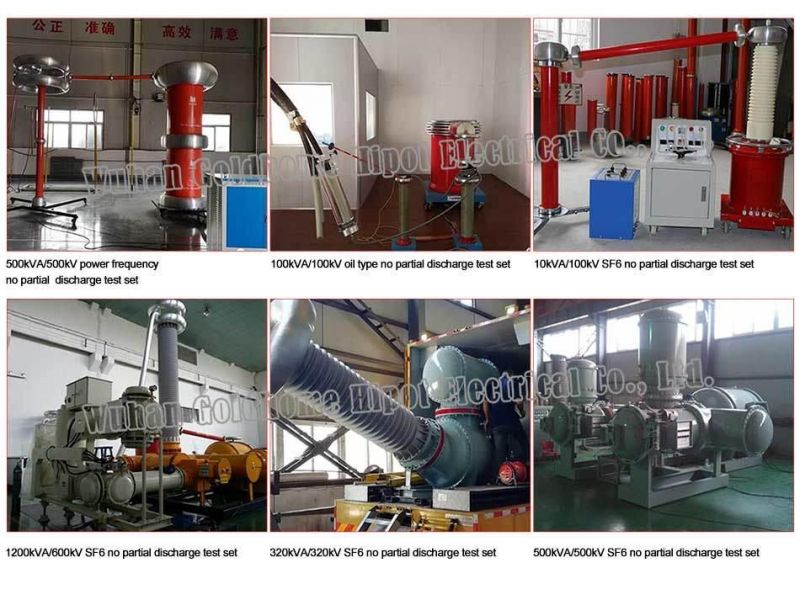

According to structure , the device can be divided into four type: single phase iron shell type,
single phase iron shell series type, single phase insulating clinger type and single phase insulating clinger series type. Usually single phase iron shell type is suitable for the occasions where voltage capacity is low and easy to carry , or the equipment is fixed and its voltage capacity is high but with low requirement for partial discharge . Single phase insulating clinger type is usually suitable for the occasions where the requirement of partial discharge is high, but low voltage and fixed. Single phase insulating clinger series type is mainly used for the occasions where the requirement of partial discharge is high,and high voltage,large capacity and easy to carry. All above four type can be select by user's requirement.
