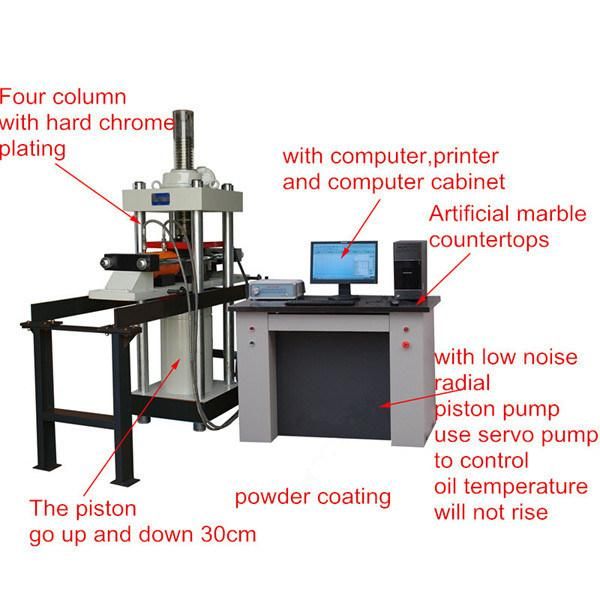

Stye-2000r PC Controlled Rock Shear and Compression Testing Machine
Shanghai Civil & Road Instrument Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：850
- Type：Compression Testing Machine
- Maxcapacity：2000kn
- Accuracy Grade：1
- Load Way：Electronic Load
Base Info
- Model NO.：STYE-2000R
- Loading Method：Dynamic Load
- Display：Digital
- Control：Automatic Digital
- Weight：1300
- Power Source：AC380V
- Oil Cylinder Position：Under
- Max. Testing Power：2000kn
- Transport Package：Wooden Case
- Specification：950x400x1560mm
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. STYE-2000R Loading Method Dynamic Load Display Digital Control Automatic Digital Weight 1300 Power Source AC380V Oil Cylinder Position Under Max. Testing Power 2000kn Transport Package Wooden Case Specification 950x400x1560mm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description
STYE-2000R PC Controlled Rock Shear and Compression Testing Machine| Application | perform the shear test and compression test for rock. |
| Max. testing power | 2000kN |
| Relative indication error | <±1% |
| Size of the bearing plate | 320mm×260mm |
| Max. distance between upper and lower pressure plates | 310 mm |
| Piston stroke | 90 mm |
| Shearing Jack capacity | 500kN |
| Shearing sensor | 500kN |
| Features | It adopt high accurated sensor, full automatic pc controlled loading, overload protection. |
