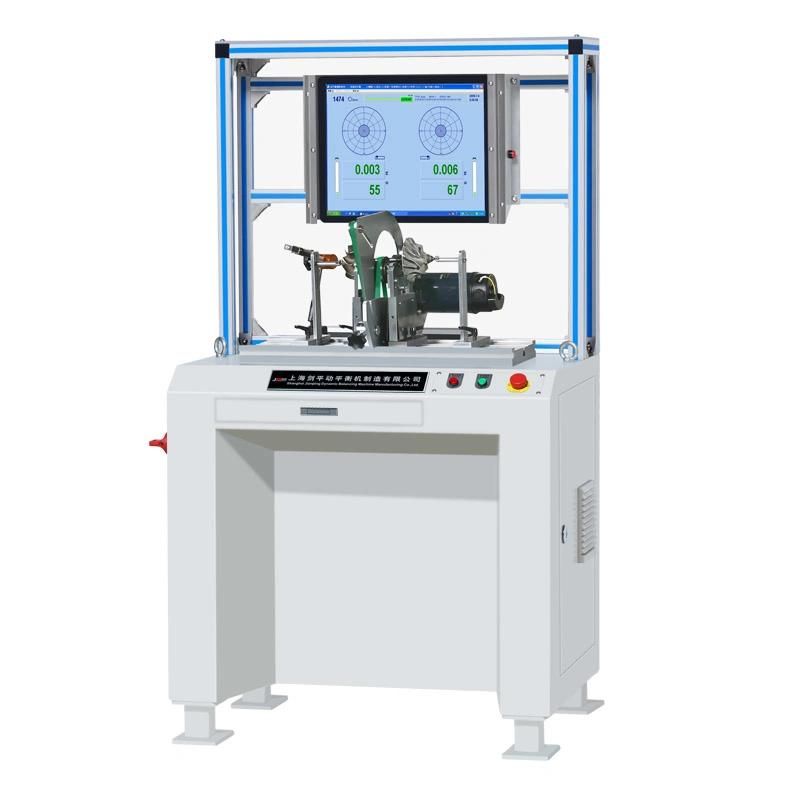

Belt Drive Balancing Machine for Car Turbocharger (PHQ-16A)



Production Description

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

Delivery inspection



Range of Application

Belt Drive Balancing Machine with JP380 Measuring Unit (PHQ-16A ) is also widely used in balancing rotatable bodies, such as kinds of small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by Nylon belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency.

Factory Outlook



Special Features

The measuring unit employs JP-580B Electrical Measuring unit is a system of top function and precisionIt can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer mainboard which equiped with 15-inch LCD screen and 1G Memory, Electric board 4G, Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Package and transport



Production Parameters

Technical data at a glance	PHQ-16A
Max Mass of Workpiece (kg)	5/16
Max Diameter of Workpiece (mm)	300
Distance between Two Support Bearings (mm)	60-400
Journal Diameter Scope of Workpiece (mm)	5~40
Diameter Scope of Driving Belt (mm)	15~150
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min)	~1470
Motor Power (kw)	0.23DC Stepless speed regulation
Min Achievable Residual Unbalance Amount (emar)	≤ 0.3g. mm/kg
