• Model NO.：HME-1200
• Protective Characteristics：Open Relay
• Action Principle：Electromagnetic Type
• Size：Subminiature
• Type：Electric Parameter Relay
• Usage：Protection Relay Test
• Phase：6
• Electricity Type：AC DC
• AC Current Output：6 Routes, 30A,450va
• AC Voltage Output：6 Routes, 120V,84va
• AC Output Accuracy：0.2%
• DC Current Output：6 Routes, ±10A,200va
• DC Voltage Output：6 Routes, ±160V,80va
• DC Output Accuracy：0.5%
• Transport Package：Standard Export Wooden Package
• Specification：420× 360× 210mm3
• Trademark：RELAYTESTAR
• Origin：Hubei China
• HS Code：9030820000
• Production Capacity：5000platform,Year

Product Description

High Power 6-phase Protection Relay Test SystemSetting Range

6-Phase AC(L-N)

6x0…40A

3-Phase AC(L-N)

3x0…80A

1-Phase AC(LL-LN)

1x0…240A

DC(L-N)

6x0…±20 A

Power

6-Phase AC(L-N)

6x300VA At 40A

3-Phase AC(L-N)

3x450VA At 80A

1-Phase AC(LL-LN)

1x1000VA At 240A

DC(L-N)

6x120VA At 20A

Accuracy

AC: ±1mA(≤0.2A), ≤0.1% (0.2~40A)

DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~20A)

Resolution

1mA

Setting Range

6-Phase AC(L-N)

6x0…150V

3-Phase AC(L-N)

3x0…300V

DC(L-N)

6x0…±175V

Power

6-Phase AC(L-N)

6x80VA At 150V

3-Phase AC(L-N)

3x100VA At 300V

DC(L-N)

6x80VA At 175V

Accuracy

AC: ±2mV(0.2~2V), ≤0.1% (2~150V)

DC: ±10mV (0.5~5V), ≤0.2% (5~175V)

Resolution

1mV

Auxiliary DCFrequency

Range: 0~1200Hz

Accuracy:<1mHz(0~65Hz);<10mHz(65~450Hz);<20mHz(450~1200Hz)

Resolution: 0.001Hz

Phase

Range: -360° ~+360°

Accuracy: 0.1°

Resolution: 0.01°

Harmonic

Superposition Order: 2~24 Times

Distortion: ≤0.5%

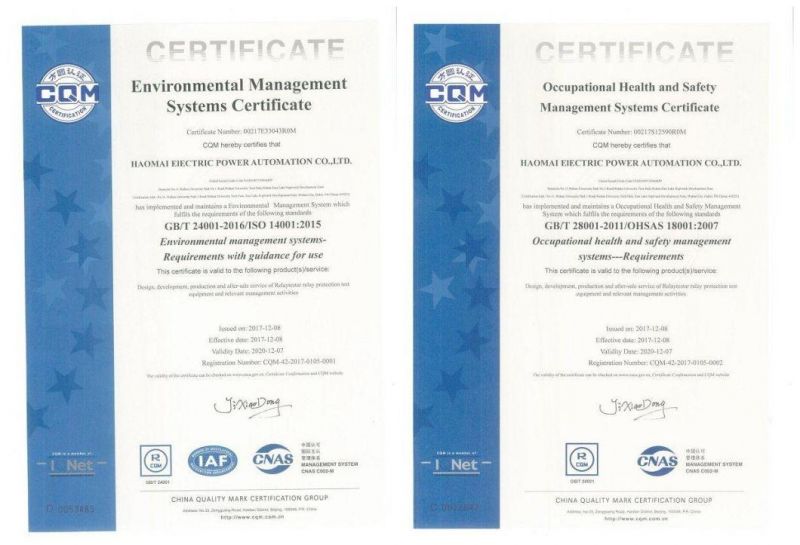

Certifications
