• Model NO.：GD-17144
• Loading Method：Dynamic Load
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Micro Carbon Residue：ASTM D4530 Micro Carbon Residue Tester
• Micro Method Carbon Residue：Automated Micro Carbon Residue Tester
• ASTM D4530：Micro Conradson Residue and Ash Tester
• Measurement Range：0.10% (M,M)~30.0%(M,M)
• Temperature of Coke Chamber：500c
• Temperature Control Accuracy：+,-2c
• Heating Power：1500W
• Dimension：520mm*360mm*525mm
• Transport Package：Wooden Case or Venner Case
• Specification：refer to ASTM D4530
• Trademark：GOLD
• Origin：Chongqing of China
• HS Code：9031809090
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. GD-17144 Loading Method Dynamic Load Control Computer Control Weight 0-100Kg Power Source AC220V Micro Carbon Residue ASTM D4530 Micro Carbon Residue Tester Micro Method Carbon Residue Automated Micro Carbon Residue Tester ASTM D4530 Micro Conradson Residue and Ash Tester Measurement Range 0.10% (M/M)~30.0%(M/M) Temperature of Coke Chamber 500c Temperature Control Accuracy +/-2c Heating Power 1500W Dimension 520mm*360mm*525mm Transport Package Wooden Case or Venner Case Specification refer to ASTM D4530 Trademark GOLD Origin Chongqing of China HS Code 9031809090 Production Capacity 100 Sets / Month

Product Description

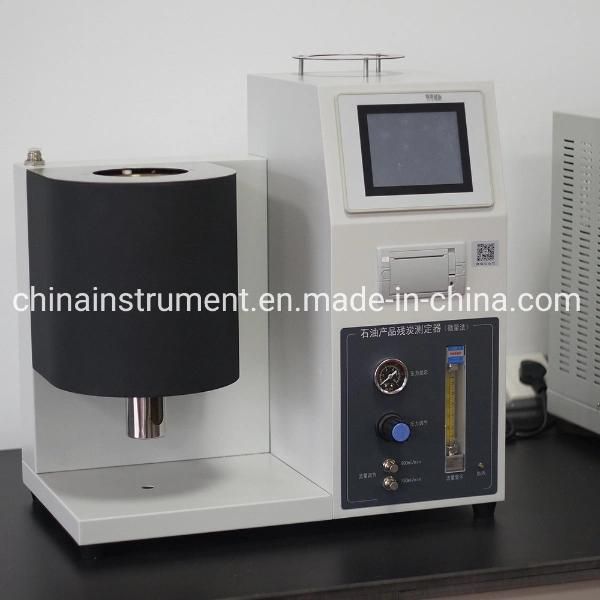

GD-17144 Auto Micro Carbon Residue Tester to determine Micro (Conradson) Carbon residue of petroleum products


Micro Method Carbon Residue Tester:

The Micro Carbon Residue Tester is an automatic airtight furnace that is pre-programmed to run tests to determine Micro (Conradson) Carbon residue of petroleum products. It is applied to determine the amount of carbon residue formed after evaporation and pyrolysis of petroleum materials under certain conditions and is intended to provide some indication of the relative coke forming tendency of such materials.


Features:
 1. The Micro Carbon Residue Tester adopts all-in-one structure. It consists of two parts: electrical control chamber and high temperature heating furnace. The design is simple and reasonable.
2.  The Micro Carbon Residue Tester adopts single chip machine system. The instrument controls the whole procedures automatically according to program preset.
3. The screen adopts all English interface. Operator can do determination by prompts on the screen even no need to read the operation manual. Easy to operate.
4. The Micro Carbon Residue Tester controls the flow rate of nitrogen, temperature heating rate and preset temperature automatically. Easy to adjust the flow rate. The heating rate is accurate and temperature control is stable.
5. It collects test data and calculates results automatically. It can print and save the data according to customer's requirements.
6. The measurement range of this instrument is 0.10% (m/m)~30.0%(m/m).The test result is equivalent to Conradson method if the carbon residue is higher than 0.10%(m/m).
7. The carbon residue apparatus can also be used to determine the petroleum products composed of distillate oils which carbon residue is lower than 0.10%(m/m). But the specimen shall be sampling to 10%(V/V)distillation residue according to GB/T6536(ASTM D86) firstly.
8. It equips a electric balance to achieve the automation of sample weighing and data input.
9. The Key Features of this instrument are: It can detect the micro residual carbon; It can realize the automation of sample weighing data input; The testing process is fully automated.

Parameters:


1	Power supply	AC(220±10%)V, 50Hz
2	Maximum power consumption	1600W
3	Temperature of coke chamber	500ºC
4	Temperature control accuracy	±2ºC
5	Heating power	1500W
6	Ambient temperature	5ºC~35ºC
7	Relative humidity	≤85%
8	Dimension	520mm×360mm×525mm

ASTM D4530 Micro Carbon Residue Tester:
