• Model NO.：PHQ-1.6A,5A,16A
• Max. Mass of Workpiece：16kg
• Delivery Time：20 Days
• Number of Packing：2 PCS
• MOQ：1 Set Rotor Dynamic Balancing Machine
• Color：Blue
• Usage：Auto Testing Machine
• Item：Rotor Dynamic Balancing Machine
• Transport Package：Packed in Standard Export Wooden Case
• Specification：ISO9001: 2008 CE SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：9031100090
• Production Capacity：1000 Sets,Month
• Package size per unit product：95.00cm * 95.00cm * 163.00cm
• Gross weight per unit product：259.000kg

Technical data at a glancePHQ-1.6/5PHQ-1.6A/5APHQ-16AMax Mass of Workpiece(kg)1.6/51.6/516Max Diameter of Workpiece (mm)Φ300Φ300Φ300Distance Between Two Support Bearings (mm)15~50060~50060~500Journal Diameter Scope of Workpiece (mm)Φ 3~40(120°)Φ 3~40Φ 5~40Diameter Scope of Driving Belt (mm)Φ20~85Φ15~150Φ15~150Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) 185,335,390,7001)~1470~1470Motor Power (kw)0.15DC0.23DC0.23DCMin Achievable Residual Unbalance Amount (emar)≤0.3g· mm/kg≤0.3g· mm/kg≤0.3g· mm/kg
Production Description

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

Range of Application

Horizontal Balancing Machine for Electrical Motor (PHQ-500) is also widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency

Special Features

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments

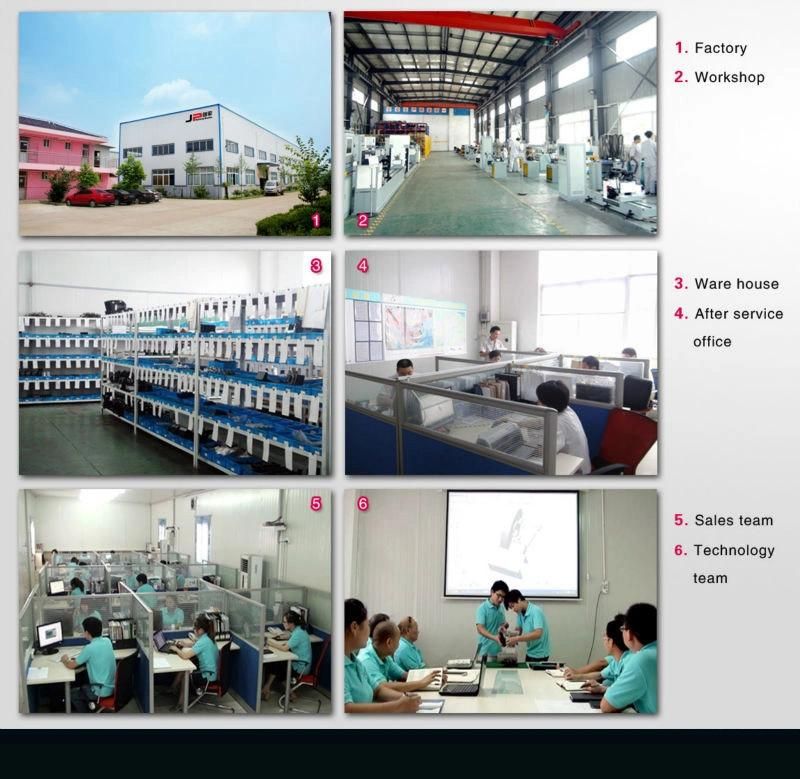

Factory Outlook

 Certificates

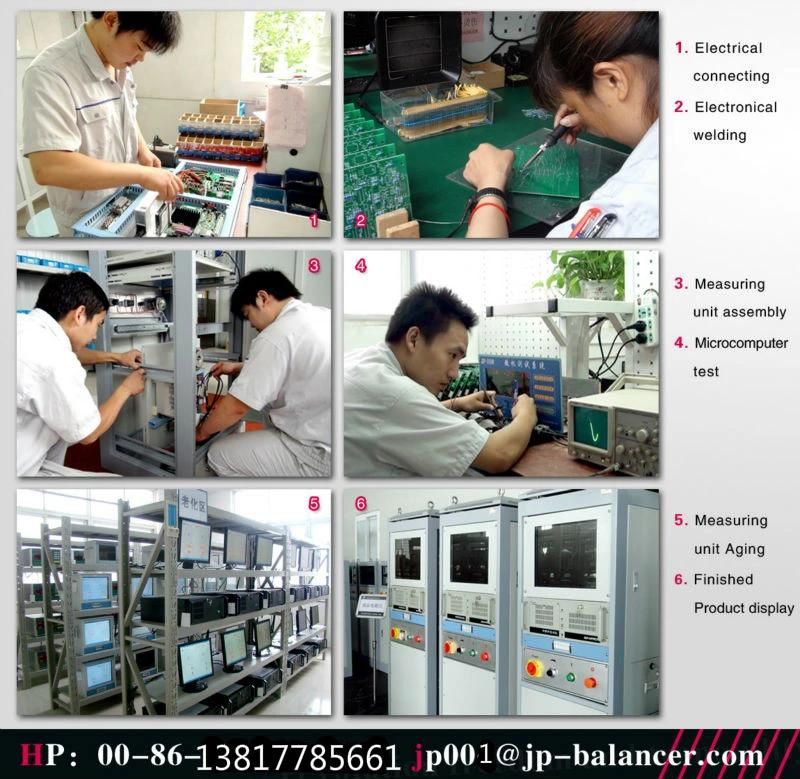

Production Process-Measuring system

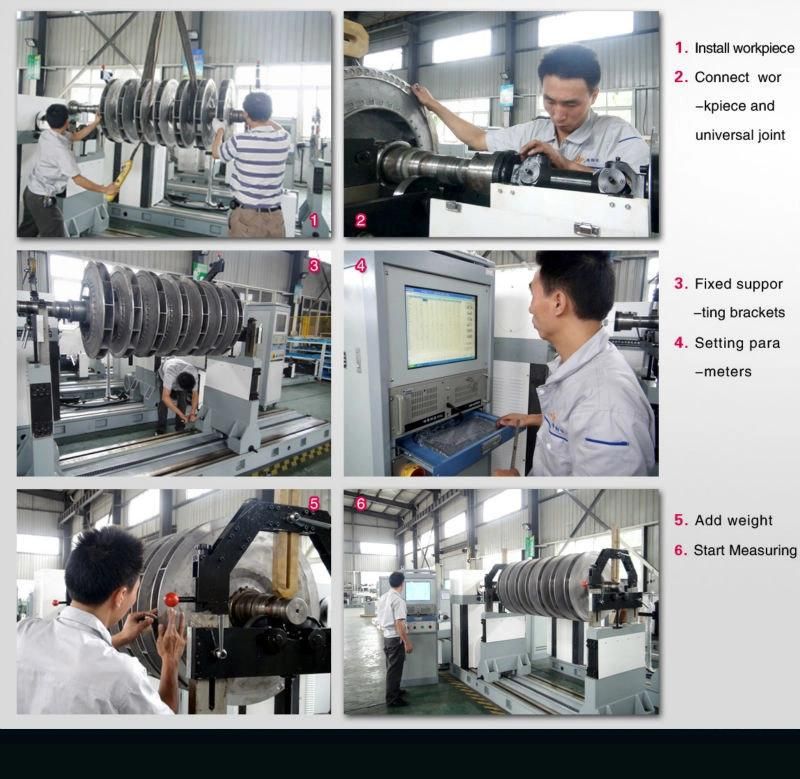

Workshop debugging

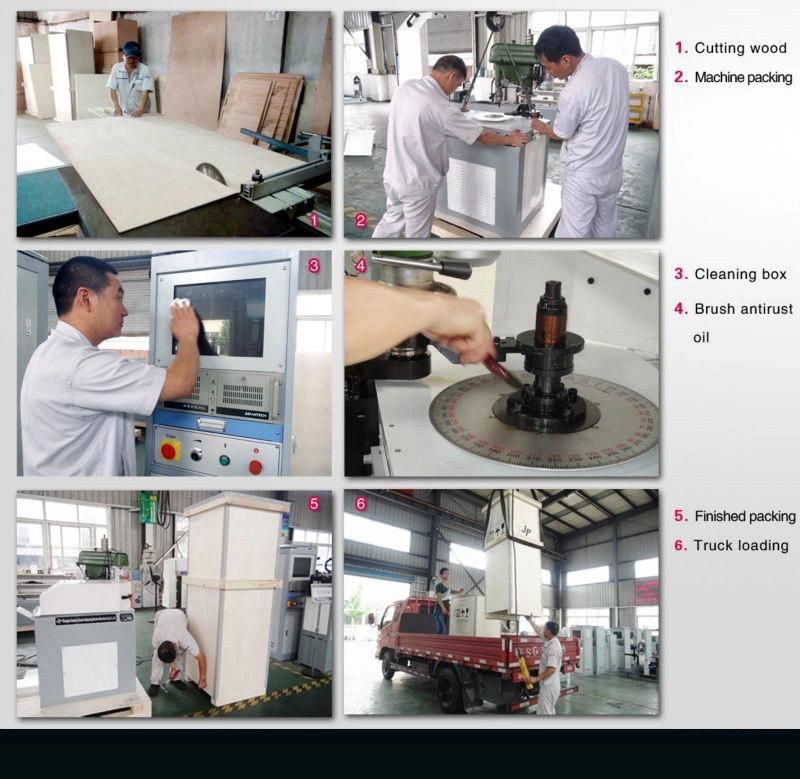

Package and transport
