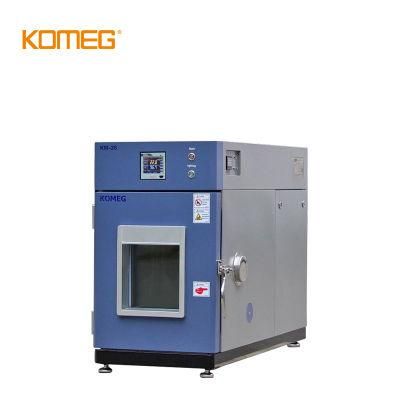

• Model NO.：KMH-36L
• Temp. Range：-20oc~+150oc
• Humidity Range：20-98%R.H.
• Temp. Constancy：+,-0.5oc
• Humidity Constancy：+,-2.5%R.H.
• Humidity Uniformity：+,-5.0r.H.
• Heat up Time：-20 Oc~+100 Oc Within 35mins
• Pull Down Time：+20 Oc~-20 Oc Within 45mins
• Equipment Power：18.5kw
• Transport Package：Strong Plywood Case, Meet International Standards
• Specification：Standard and Customized
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：1000 Sets Per Yesr

ModelKMH-36L36L chamber volumeTemp. range -40°C ~150°C Display resolution0.1°CTemperature stabilityHigh±0.5°C ,low ±1.0°CTemperature uniformity ±2.0°CHeat up time -40°C ~+100°C,within 45 minPull down time +20°C ~-40°C,within 60 minHumidity range20~98%R.H,(standard),   '10~98%R.H,(with humidifier)Humidity constancy±2.5%R.HHumidity uniformity±3.0%R.HInterior Dimension(mm)300W x 400H x 300D Exterior Dimension(mm)880W x 1726H x 1395DInterior materialStainless Steel Plate(SUS 304)Exterior materialBaked Painting Steel Or Stainless steel(SUS304)Insulation materialRigid polyurethane Foam and Glass Fiber WoolTotal power  4KW(heater 2KW included)Max current8AWater Consumption0.65L/hrAmbient Temp.+5°C ~+35°C Power Supply AC 380V±10% 50Hz ,3 phase 4 wires +Ground WiresWeight 250KGSight window sizewith LED lightSample holder 2 pcsFittingscable port(portΦ50mm)*1, chamber lamp*1, power cable *2mSafety device  (standard)No fuse breaker,over pressure,over heat&over current protect,over temp. protect, over load protect for blower, dry heat protect Control SystemBalanced Temperature & Humidity Control (BTHC)SystemRefrigeration systemAir Cooled (Water Cooled is option)Hermetic compressor

Hermetic compressor
Single stage refrigeration system,
CFC-Free refrigerant(HFC-507/HFC-23)

CFC-Free refrigerant(HFC-507/HFC-23)Controller7-inch LCD Touch Screen panel                                                                        Operation model :Program or fix point runningMemory capacity :120programs,1200steps,All repeat 999 cycles, part repeat 99 cyclesNote:
1. We reserve the right to change specifications without prior notice
 2. Customized sizes and configurations available
