• Model NO.：ES-6
• Display：Digital
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC380V
• .Rated Sine Force (N)：1000 to 3500000
• Rated Random Force (N)：1000 to 3500000
• Frequency Range (Hz)：3 to 3500
• Rated Acceleration(M/S2)：400 to 1000
• Rated Velocity(M/S)：1.2 to 1.8
• Rated Displacement (P-P, mm)：25 to 51
• Transport Package：Wooden Case
• Specification：ES Series
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：85141090
• Production Capacity：30 Sets,Month

Overview Product Description

We are manufacturer of Big Force Frequency Electrodynamic Vibration Shaker System Meet IEC 60068 Standard series products, adopted the 'double-magnetic circuit structure',' self-generated skeleton action circles', 'Airborne Support' and 'roller bearings and linear guidance', 'trunnion isolation' advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace,  communications, electronics, electrical appliances, communications, home appliances and other fields.

Product Parameterselectro dynamic vibration system Technical Parameters: ModelRated
Sine
Force (N)Rated
Random
Force (N)Frequency
Range (Hz)Rated
Acceleration
 (m/s2)Rated
Speed
(m/s)Rated
displacement
(p-p)mmMax.
Loading (
Kg)Moving
coil(Kg)Dimension of
Moving coil
(mm)ES-1100010003-3500 400 1.22570 2.5Φ150 ES-22000 20003-35008001.625702.5Φ150 ES-2a 200020003-35003001.640 708Φ230ES-3300030003-350010001.6251003.5Φ150ES-3a 300030003-35004001.640 1209Φ230ES-66000 60003-35001000 1.6251806.5Φ230ES-6a600060003-35001000 1.65125012Φ230ES-1010000100003-3000 10001.85127014Φ240ES-2020000200003-300010001.851300 30Φ320ES-303000030000 3-280010001.85l45040Φ450ES-4040000400003-280010001.851500 50Φ450ES-5050000500003-270010001.85175050Φ450ES-6060000600003-270010001.85175060Φ450ES-100 1000001000003-250010001.851100090Φ450ES-1201200001200003-220010001.851110090Φ500ES-1601600001600003-210010001.8511500150Φ600ES-2002000002000003-200010001.8512500200Φ650ES-3503500003500003-170010001.8514500300Φ870

electro dynamic vibration shaker system Features:
1. Well designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity,

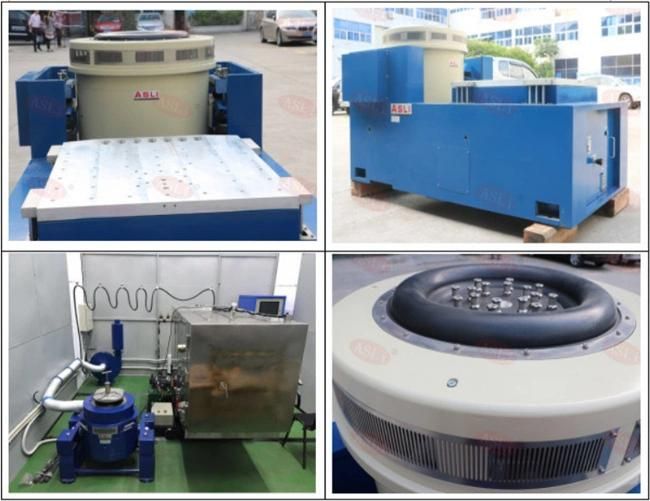

improve low-frequency performance.Detailed Photos

For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK



Saftey device:
1. With no-fuse protection switch
2. Control system with phase sequence protection and low voltage electrical protection.
3. With over-heat protection switch.
4. Over load protection device for refrigeration compressor.
5. Refrigeration compressor high and low voltage protection switch.
6. Refrigeration compressor over oil pressure protection.
7. Lack of Anti-phase protection system.
8. Overload protection for circulation fan motor.

Customer Visit ASLI Company

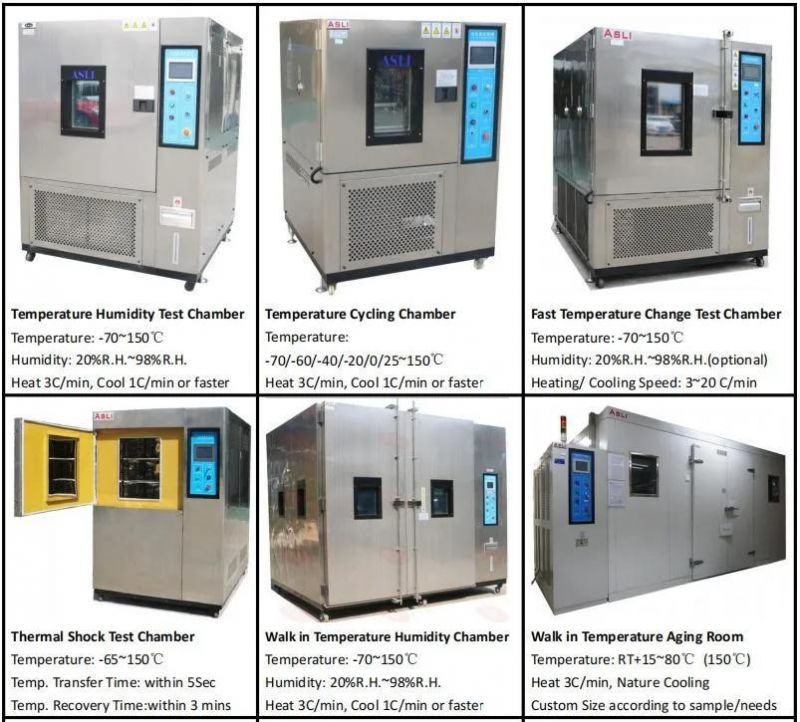

ASLI Products:

Any doubt or needs about Big Force Frequency Electrodynamic Vibration Shaker System Meet IEC 60068 Standard, please feel free to contact me.
