• Model NO.：HZJB-I
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：No

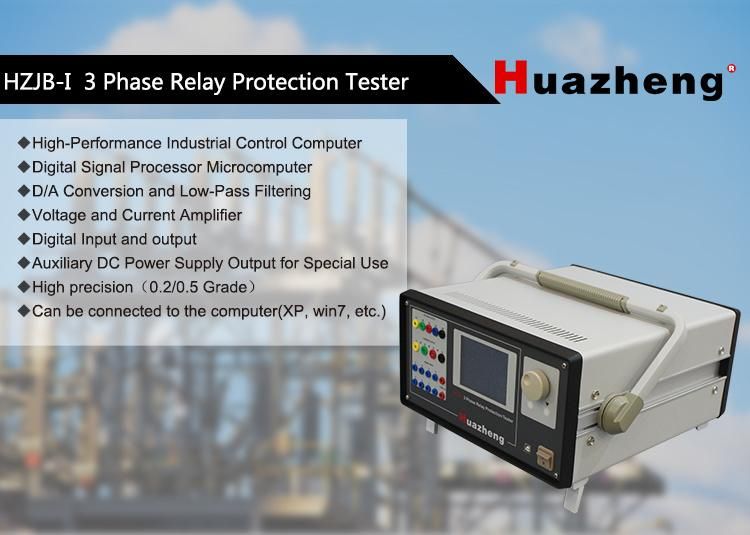

• Usage：Three Phase Relay Protection Tester
• Work Power：110V-400V Adjustable
• Power Frequency：50±1Hz
• Phase：0--360 °
• Power Capacity：300va , Phase
• Line Voltage Range：0--250V
• Power：AC220V ± 10% 50Hz 10A
• Environment Humidity：≤90%Rh
• Work Temperature：-10°c~ 50°c
• Certificate Standard：ISO Ce
• Transport Package：Standard Carton, Box
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Baoding, Hebei
• HS Code：9030820000
• Production Capacity：500set ,Year

Switch parameters input - 7 ways

Empty contact: 1~20mA, 24v

Power contact access:"0": 0~+6V;"1": +11V~+250V

Switch parameters output - 2 couples

DC: 220V/0.2A;AC: 220V/0.5A

Measuring range

0.1ms ~ 9999s

measuring accuracy

0.1ms

Volume and weight



Appearance and size

400×300×180 (mm)

Weight of a single machine

22kg

Supply power

AC 220V±10%,50/60Hz

Environmental temperature

-10ºC~ +50ºC


IV.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

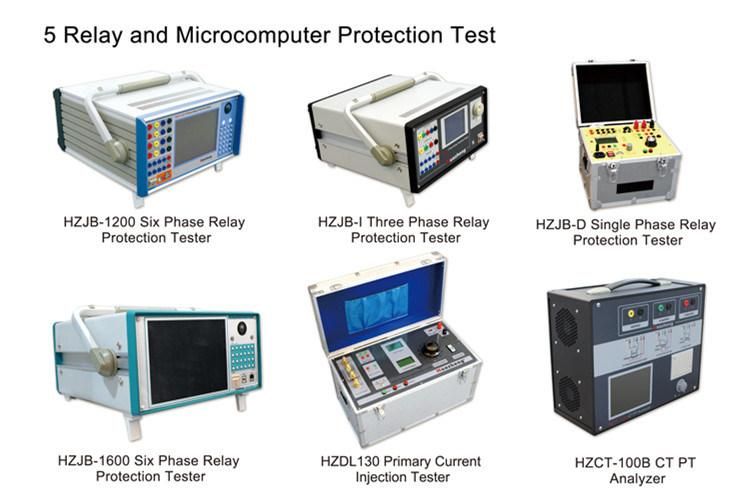

Our main products are Safety Products, Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.


V. Our Services
1. Good after sales service: Any small problem happening will be solved at the most prompt time;
2. We have many years of experience, we have specializing in fastener;
3. Specifications list is available upon your request
4. Welcome to send enquiry,we will reply soon.If you want to know more,pls feel free to contact us.
5. Prompt shipment with professional documents
6. Packing as your request, with photo before shipment
7. High quality and competitive price
8. All the product quality are under strict controll and offer good service.
9. Our produts now are known by lots of our domestic customers and oversea clients.
