• Model NO.：PHGS-5
• Maxcapacity：<1000KN
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Length：1400 Mm
• Width：600 Mm
• Height：1300 Mm
• Gross Weight：380 Kg
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO9001: 2008 CE SGS
• Trademark：Jp
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHGS-5 Maxcapacity <1000KN Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Length 1400 Mm Width 600 Mm Height 1300 Mm Gross Weight 380 Kg Transport Package Packed in Fumigated Wood Box Specification ISO9001: 2008 CE SGS Trademark Jp Origin Shanghai China HS Code 90311000 Production Capacity 1000 Sets/Month

Product Description

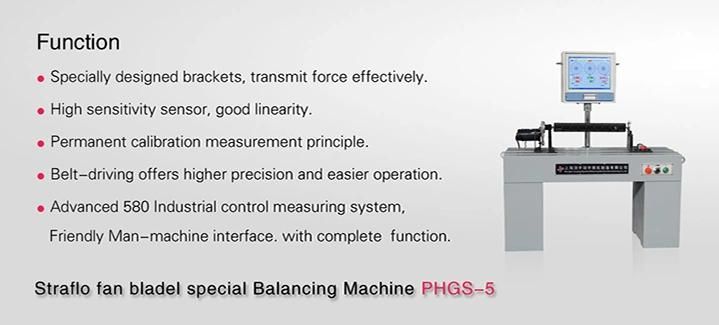

Cross Flow Fan Balancing Machine (PHGS-5)





Production Description

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher accuracy and easier operation
Advanced electrical measuring system and friendly man-machine interface

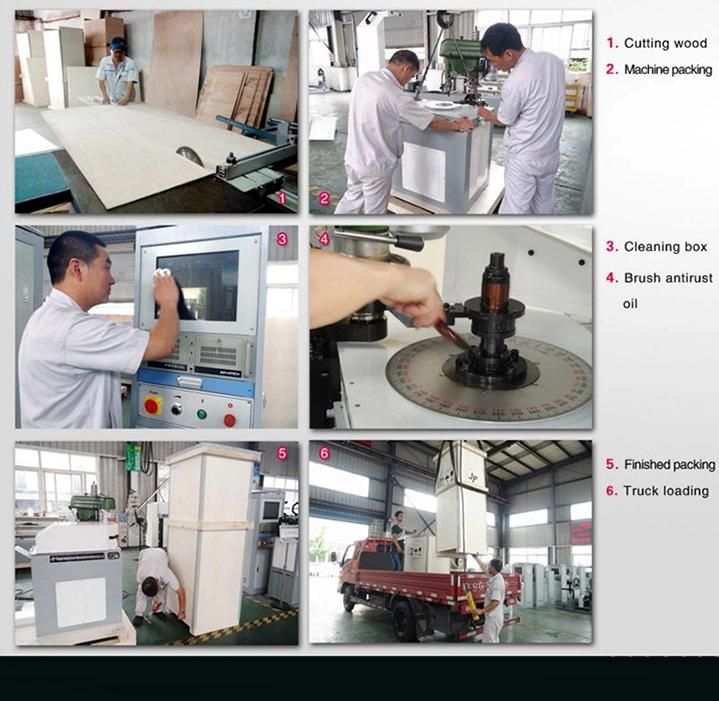

Package and transport



Range of Application

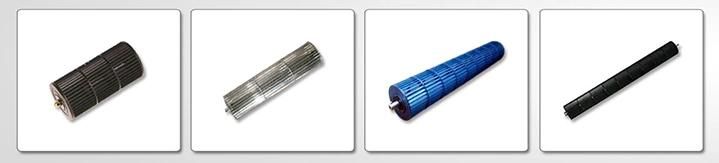

Tubular Fan Blade Balancing Machine (PHGS-16) is mainly applied to balance products like straflo bellows of air- conditioner, Cross-flow fan of air- conditioner and other similiar rotating workpiece balance and corection. This machine adopts DC speed regulating motor, Driven by belt, easy to assemble, quick booting, high eficiency. With advantages of high accuracy, high measuring speed and low fault rate. etc.

Delivery inspection



Special Features

The measuring unit employs JP-580B Electrical Measuring unit is a system of top function and precisionIt can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer mainboard which equiped with 15-inch LCD screen and 1G Memory, Electric board 4G, Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Certificates



Production Parameters

Technical data at a glance	PHGS-5/16
Max Mass Scope of Workpiece (kg)	5/16
Max Diameter of Workpiece (mm)	150
The distance between two bearing pedestals (mm)	Min60
Length of Workpiece(mm)	900
Rotation Speed of the Main Axis (r/min)	896,1390 Stepless speed regulation
Journal Diameter Scope of Support Bearings (mm)	5-12
Motor Power (kw)	0.23 DC
Min Achievable Residue Unbalance Amount (emar)	5g. mm/kg

After Sale Service:
Professional engineer and application specialists respond to your requests efficiently
Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer
Follow up the case, record the entire process. Solution will be provide with 24 hours
Meanwhile, the problem complaint will be reported to QC department
QC will find defect from which department, who is in charge to identify responsibility
Collecting and record customer respond, suggestion, requirement
Warranty period:
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
About Us:
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. Is a professional manufacturer of dynamic balancing machine, which is high-tech technology enterprises of Optical-electro-mechanical Integration,

There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
