Digital Automatic Spring Tension & Compression Testing Machine, Seal Spring Tester
Shanghai Trisun Parts Manufacture Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：5000n
- Type：Compression Testing Machine
- Maxcapacity：>1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：TS500N
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Oil Cylinder Position：Under
- Lapping Machine：Table Type
- Polishing Machine：Lapmaster
- Table Lapping Machine：Kemet
- Lightband Polishing：Polishing Machine
- Flatness Tester：Flatness Tester
- Flatness Glass：Optical Glass
- Polishing Seal Faces：Lapping Machine
- Polishing Thrust Bearing：Polishing Cloth
- Portable Polishing Machine：Polishing Plate
- Sealing Rings：Polishing Machine
- Spring Tension Tester：Ts500n Spring Compression Tester
- Spring Compression Tester：Spring Tension Tester
- Spring Testing Machine：Mechanical Seal Spring
- Spring Tester：Spring Tension and Compression
- Seal Spring Tester：Digital and Automatic Spring Tester
- Transport Package：Wooden Box
- Trademark：Trisun
- Origin：China
- HS Code：9031809090
- Production Capacity：5000 Set,Year
Description
Basic Info.
Model NO. TS500N Loading Method Dynamic Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Lapping Machine Table Type Polishing Machine Lapmaster Table Lapping Machine Kemet Lightband Polishing Polishing Machine Flatness Tester Flatness Tester Flatness Glass Optical Glass Polishing Seal Faces Lapping Machine Polishing Thrust Bearing Polishing Cloth Portable Polishing Machine Polishing Plate Sealing Rings Polishing Machine Spring Tension Tester Ts500n Spring Compression Tester Spring Compression Tester Spring Tension Tester Spring Testing Machine Mechanical Seal Spring Spring Tester Spring Tension and Compression Seal Spring Tester Digital and Automatic Spring Tester Transport Package Wooden Box Trademark Trisun Origin China HS Code 9031809090 Production Capacity 5000 Set/YearProduct Description

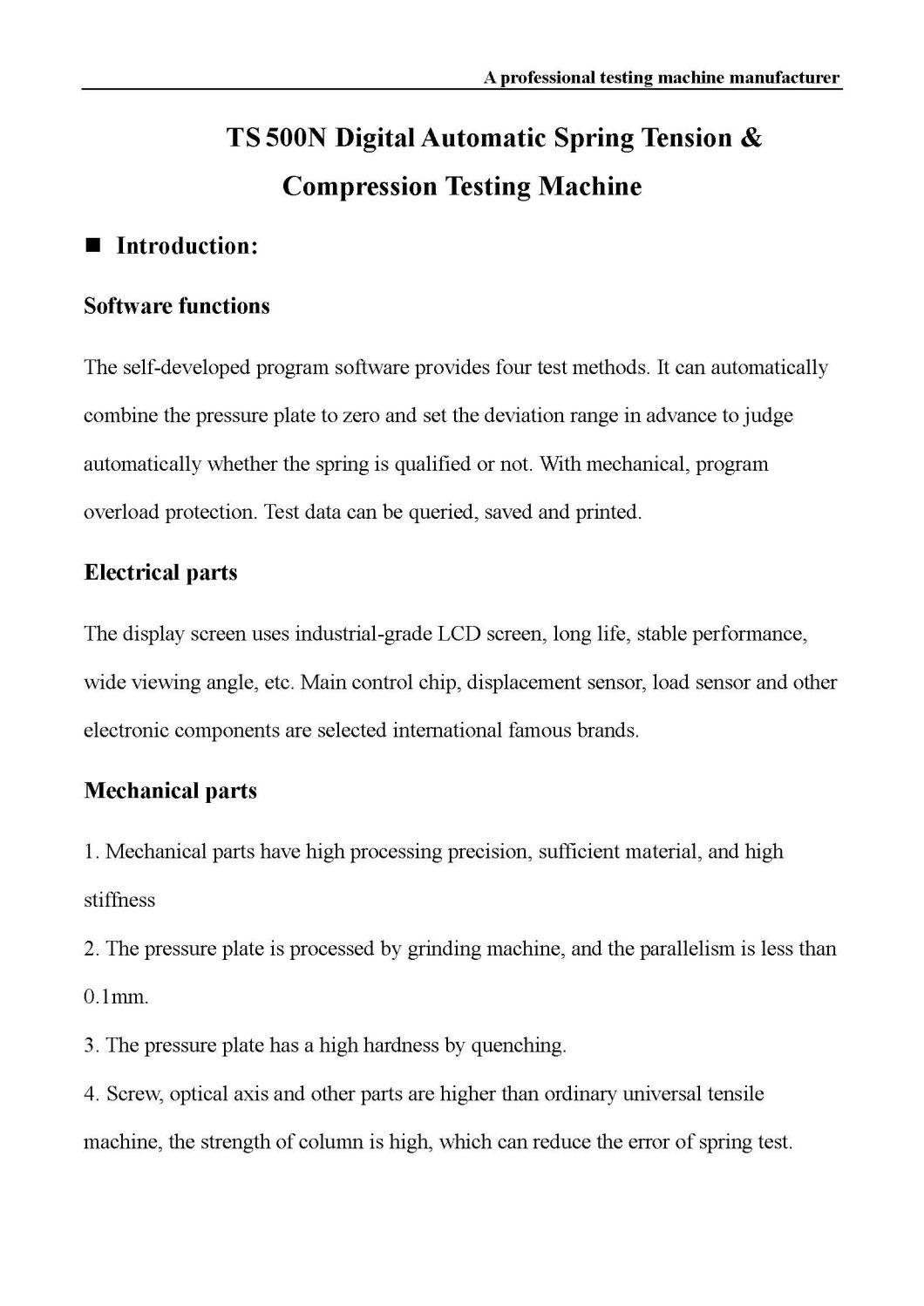

Our digital and automatic spring tension and compression tester has following characteristics:A. Testing Tension and Compression by one machine B. Industrial grade LCD Screen C. Save and Print 50 sets of data in once D. Maximum Tensile and Compression Test Space : 300mm (also can increase as customers' requirement ) F. Max pressure : 500 N (also can increase up to 5000N as customers' requirement )
