50kn Automatic Marshall Stability Testing Machine
Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.- Transport Package：Wooden Box
- Specification：50kN
- Trademark：C-Tech
- Origin：China
Base Info
- Model NO.：LD-5
- HS Code：90248000
- Production Capacity：100 Sets,Month
Description
Basic Info.
Model NO. LD-5 HS Code 90248000 Production Capacity 100 Sets/MonthProduct Description

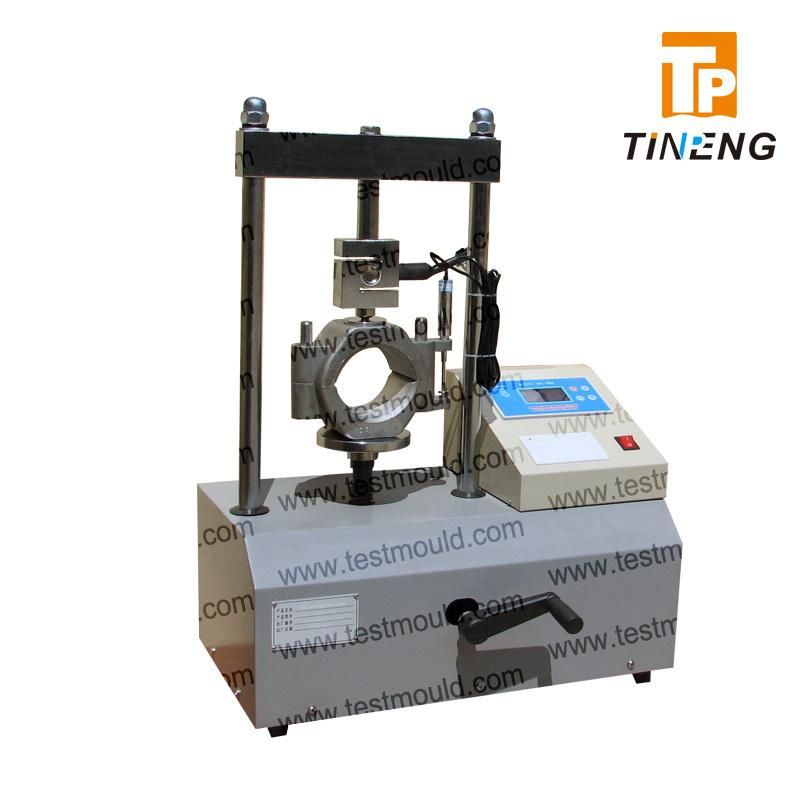

50kN Automatic marshall stability testing machine
Advance bench-mounted mechanical load frame with build-in digimatic display unit with ruggedly constructed to compass the strain loads involved with the test.
This machine supplied with high accuracy load cell & displacement transducer 15 mm stroke ± 1% indipendent linearity.
Handle provided for manual operation during calibration. 6"diameter stability mould & mini printer with graf also available as optional accessories.
Specifications:
| Model No. | LD-5 |
| Max Capacity: | 50kN |
| Test Rate: | 50.8mm/min |
| Cross Head Travel: | 70mm |
| Displacement Probe Travel: | 15mm |
| Verticial Clearance: | 300mm |
| Horizontal Clearance: | 270mm |
| Dimension(mm): | 590(L)*310(W)*750(H) |
| Approx. Weight: | 90kgs |
| Power: | 220V, 50/60Hz, 1 ph, 0.5Hp,2.3A |
Unit consist of:
| Model No. | Parts Description | Qty |
| LD-5/01 | 50 kN 'S'Type Load Cell | 1 no. |
| LD-5/02 | Dispacement Transducer Probe | 1 no. |
| LD-5/03 | 4 inch Diameter Stability Mould | 1 no. |
| LD-5/04 | Handle(Manual Adjustment) | 1 no. |
Optional Accessories:
| Model No. | Accessories Description |
| LD-5/05 | 6 inch Marshall Stability Mould |
| LD-5/06 | Mini Printer |
| LD-5/07 | Printer Paper Roll(3pcs/pack) |
| LD-5/08 | Tensile Splitting Device (100, 150 & 160 mm Dia.) |
