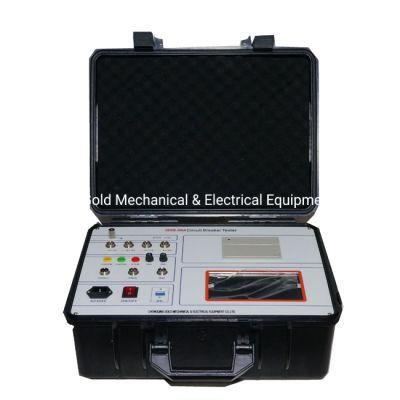

High-Voltage Switch / Circuit Breaker Dynamic Characteristic Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Apparatus：Switch Dynamic Characteristic Tester
  • Application：High Voltage Switch Dynamic Characteristics Tester
  • Function：High Voltage Switch Mechanical Characteristic Test
  • Device：Dynamic Characteristics Tester for Circuit Breaker
  • Test Standard：IEC62271
  • Time Measurement Range：6000ms, Resolution 0.1ms

Base Info

  • Model NO.：GDGK-306A
  • Time Measurement Error：<1%Rdg+0.2ms
  • Coil Current Measurement：20.00A, Resolution 0.01A, Error 2%+0.2%Fs
  • DC Power out：DC30V~250V,20A (Instantaneous)
  • Warranty：1 Year
  • Transport Package：Wooden Case
  • Specification：ISO Certificate
  • Trademark：GOLD
  • Origin：Chongqing of China
  • HS Code：9031809090
  • Production Capacity：200PCS,Month

Description

Travel measurementRange 50.0mm resolution 0.1mm max error<1%RDG+0.1%FSRange 300.0mm resolution 1mm max error<1%RDG+0.1%FSRange 600.0mm resolution 1mm max error<1%RDG+0.1%FS6Coil current measurementrange 20.00A, resolution 0.01A, error 2%+0.2%FS7Closing resistance value measurement range100~10000ohm, error: 5%RDG8DC Power outDC30V~250V/20A (instantaneous)9Power supplyAC220V±10% 50Hz±10%10Temperature-10~40°C 11Humidity<80%

GDGK Series High-Voltage Switch Dynamic Characteristic Tester GDGK-303 High-Voltage Switch Dynamic Characteristic Tester GDGK-306 High-Voltage Switch Dynamic Characteristic Tester GDGK-307 High-Voltage Switch Dynamic Characteristic Tester
