• Model NO.：HD-E702-1000K
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V

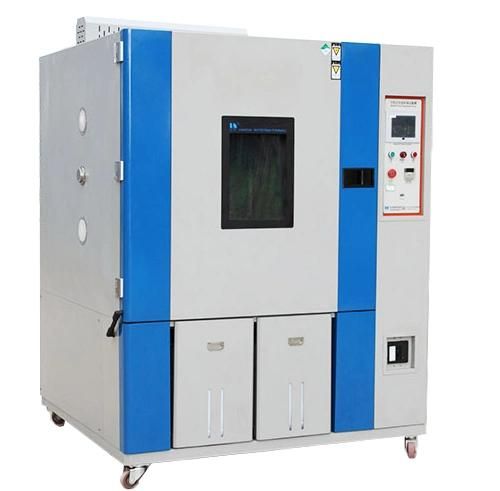

• Product Name：Programmable Environmental Chamber
• Insulation：Rigid Foam
• Certificate：ISO9001: 2008
• Humid. Range：20 ~ 98 Percent R.H.
• Interior Material：Stainless Steel Plate(SUS304)
• Interior Dimension(W*D*H)：100cm*100cm*100cm(W*H*D)
• Exterior Dimension(W*D*H)：125cm*200cm*191cm(W*H*D)
• Exterior Material：High-Quality Cold-Rolled Steel Plate Electrostatic
• System：Balanced Temperature & Humidity Control System
• Accessories：Viewing Window, Shelves (Freely Adjustable 2 PCS.)
• Transport Package：Strong Wooden Case
• Specification：GT,T10586, Gb11158, GB,T2423, GJB150.9A
• Trademark：HAIDA
• Origin：Dongguan, China
• HS Code：8479899990
• Production Capacity：150 Sets,Month

HD-E702-1000K40HD-E702-1000K70Capacity1000LInternal dimensions1000mm*1000mm*1000mm(W*H*D)External dimensions1250mm*2000mm*1910mm(W*H*D)Temperature Range-20ºC ~ + 150ºC-40ºC ~ + 150ºC-70ºC ~ + 150ºCHumidity Range20%~98%RH                            Temperature resolution0.01ºC Humidity resolution0.1%R.HTemperature deviation±0.5ºCHumidity deviation±2%R.HTemperature uniformity<= 2ºCHumidity uniformity±3%R.HTemperature fluctuation±0.5ºCHumidity fluctuation± 2%R.HHeating rate-70ºC → + 150ºC, >= 3ºC / minCooling rate150ºC → -70ºC, >= 1ºC / minHumidification systemStainless steel humidifierHeating systemNickel chromium alloy stainless steel heaterWater supply systemFront-mounted water supply tank, automatic water supply systemControllerTaiwan Visuo ControllerCase shellHigh-quality cold-rolled steel plate electrostatic spray (1.2mm thick)Chassis inner wallSUS304 # stainless steel plate (1.2mm thick)Insulation material100mm polyurethane rigid foam + 100mm high density glass fiber cottonStandard configurationφ50 test hole, lighting lamp, double-layer vacuum strengthened glass observation window.WeightAbout 700kgElectric current40A45AP ower13.5kw16kwPower supplyThree-phase, 380VSafety protection measuresThe overall equipment is over temperature, the fan is overheated, the overall equipment is under-phase / reverse-phase, the refrigeration system is overloaded, the refrigeration unit is over-pressured, the overall equipment timing, leakage, operation indication, automatic shutdown after failure alarm, etc.Refrigeration CompressorsImported French Taikang fully enclosed compressorRefrigerantEnvironmental protection refrigerant R404A / R23Cooling methodSingle-stage coolingMechanical binary refrigerationBlowerCentrifugal fan with forced circulationEvaporatorFinned tube heat exchangerCondensation methodAir-cooledCondenserAir-cooled scale condenser, cooling fan coolingStainless steel brazed plate heat exchangerFilter drierAbsorbs residual moisture and acidic substances in the refrigerant of the refrigeration system, and filters out solid rest particles and copper shavings in the system to protect the normal operation of the expansion valve and capillary from ice and dirty plugging(The table parameters for the company Standard Model parameters, we support customer customization parameters)



Applications:

1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect

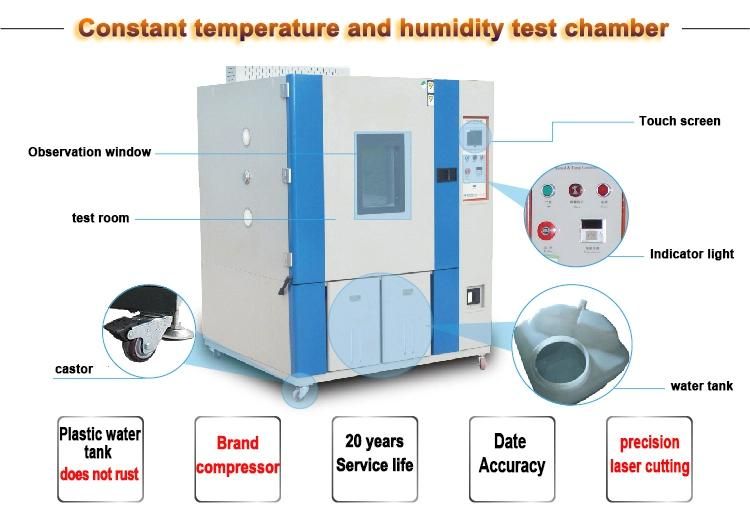

Chamber Design Features:

     1.High performance and quiet operation (68 dBA)
     2. Space-saving designed for flush installation to wall
     3.Full thermal break around doorframe
     4.One 50mm diameter cable port o left, with flexible silicone plug
     5.Direct water supply connection for continuous operation
     6.Accurate wet/dry-bulb humidity measurement system for easy mantain

Programmable Controller:

1. PIC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output





The Introduction Of Haida:
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


Our Team:

Our Services:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
    --24 Hours online service for your consult.
    --Help choose right model,and a series of service,person,advise.
2. Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convienent.
    --Promptly production and delivery,inform you in time.
    --Can provide invoice value as you like to decrease your tax.
3. After sale service
   --1 year warranty service and all life maintenance.
   --Technical Egineer are avalible for oversea trainning.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan
4. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc


Customer Feedback:



FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
