Rebar Hydraulic Reverse Bending Testing Machine for Cold Rolled Steel Bar
Jinan Chenji International Trade Co., Ltd.- After-sales Service：Whole Life
- Warranty：12 Months
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Bending Testing Machine
- Maxcapacity：<1000KN
Base Info
- Accuracy Grade：1
- Load Way：Mechanical Load
- Loading Method：Static Load
- Display：Needle
- Control：Manual Control
- Weight：500-1000Kg
- Power Source：AC220V
- Function：Steel Bar Strength Testing
- Bar Diameter：6-40mm 20-50mm
- Central Distance：165mm
- Rotating Speed：3.7r,Min
- Working Plate Diameter：760mm
- Trademark：CHENJI or OEM
- Origin：China Jinan or Others
- Production Capacity：100 PCS , Month
Description
Basic Info.
Accuracy Grade 1 Load Way Mechanical Load Loading Method Static Load Display Needle Control Manual Control Weight 500-1000Kg Power Source AC220V Function Steel Bar Strength Testing Bar Diameter 6-40mm 20-50mm Central Distance 165mm Rotating Speed 3.7r/Min Working Plate Diameter 760mm Trademark CHENJI or OEM Origin China Jinan or Others Production Capacity 100 PCS / MonthProduct Description

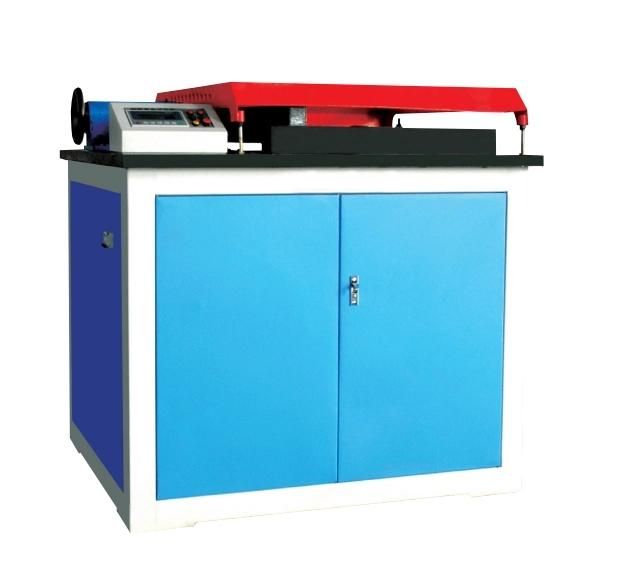

Steel bar/rebar Hydraulic Reverse Bending Testing machine for process plane rebend test for Cold Rolled steel bar
1. Feature and Usage
Steel bar bending machine is to flat steel is reverse bend test, test equipment, the equipment main technical parameters and indexes accord with YB/T5126-2003 / / GB5029 GB1499.2-2007-85 "steel flat reverse bend test method" requirement.
For the steel mills and the construction unit test an experimental equipment reinforced bar inflection performance, at the same time to adapt to the fan in the construction industry field of reinforced bending, used to test and construction.Is the original GW - 2/25 type and GW - 2140 type of alternative products, by changing the different parts with one machine can replace the two machine, saved money for our customers.
The complete equipment performance, good quality and have compact structure small volume, simple operation easy to master, 36 v safety voltage control, digital display intuitive bending Angle, smooth operation low noise, use reliable long life, simple design reasonable maintenance convenient lubrication and so on. Characteristic is limit and the vulnerability of a design more reasonable, easy to replace parts, so long service life.

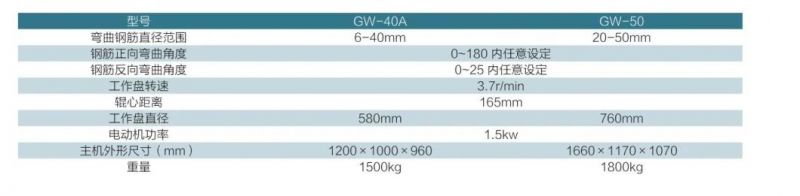

2. Technical Specification :
