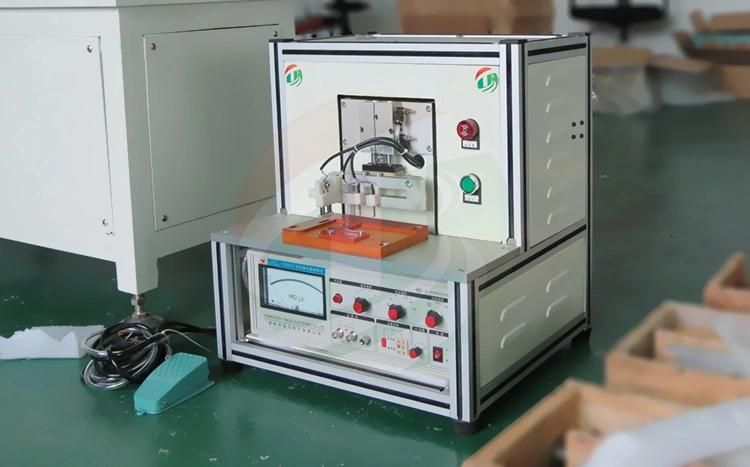

Pouch Cell Battery Short Circuit Tester

XIAMEN TOB NEW ENERGY TECHNOLOGY CO., LTD.
  • After-sales Service：1year
  • Warranty：1year
  • Type：Battery Short Circuit Tester
  • Application：Battery Short Circuit Tester
  • Transport Package：Cartons
  • Trademark：TOB

Base Info

  • Model NO.：TOB-DT-001
  • Origin：China
  • Production Capacity：1000000,Month

Description

Model

TOB-DT-001

Source voltage

AC220V, 50HZ to DC 24V

Air pressure

2.0.4-0.8Mpa

Warranty

One year limited warranty with lifetime support

Three point testing

Battery anode tab, cathode tab, pouch film

Suitable battery size

300*200mm

Machine Size (W*D*H)

About 250*500*400mm

Weight

About 50kg

Configuration

ØTest bench device

ØPricking device

Øsecurity protection plate

Øadjustable positioning plate

Øguide device

control electric box

1 set testing instrument

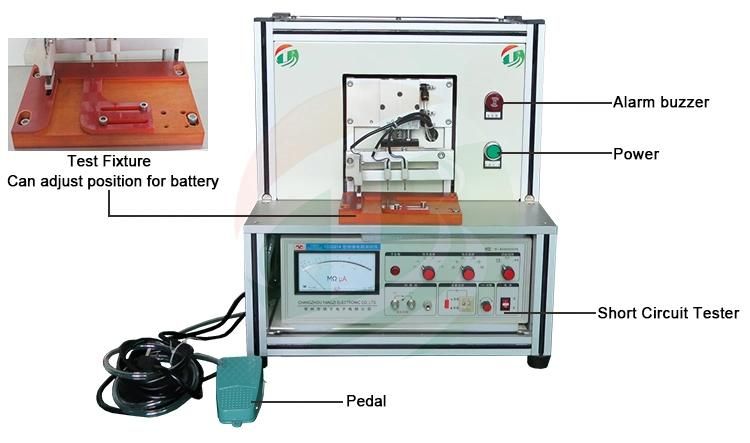

 Pouch Cell Battery Short Circuit Tester
