• Model NO.：DBT-127
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：No
• Control：Manual Control
• Weight：15kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Dbt-127 Fineness Blaine Apparatus
• Inside Diameter of Permeability Cell：Dia 12.7mm
• Height of Sample in The Cell：15mm
• Perforated Disk：35holes
• Diameter of The Hole：Dia 1
• Disk Thickness：0.1-1mm
• Motor Voltage：220V
• Motor Power Consumption：Less Than 15W
• Net Weight：3.2kg
• Size：460X220X170mm
• Transport Package：Wooden Case
• Specification：63x47x30cm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. DBT-127 Accuracy Grade 1 Load Way No Loading Method No Display No Control Manual Control Weight 15kgs Power Source AC220V Oil Cylinder Position No Product Name Dbt-127 Fineness Blaine Apparatus Inside Diameter of Permeability Cell Dia 12.7mm Height of Sample in The Cell 15mm Perforated Disk 35holes Diameter of The Hole Dia 1 Disk Thickness 0.1-1mm Motor Voltage 220V Motor Power Consumption Less Than 15W Net Weight 3.2kg Size 460X220X170mm Transport Package Wooden Case Specification 63x47x30cm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

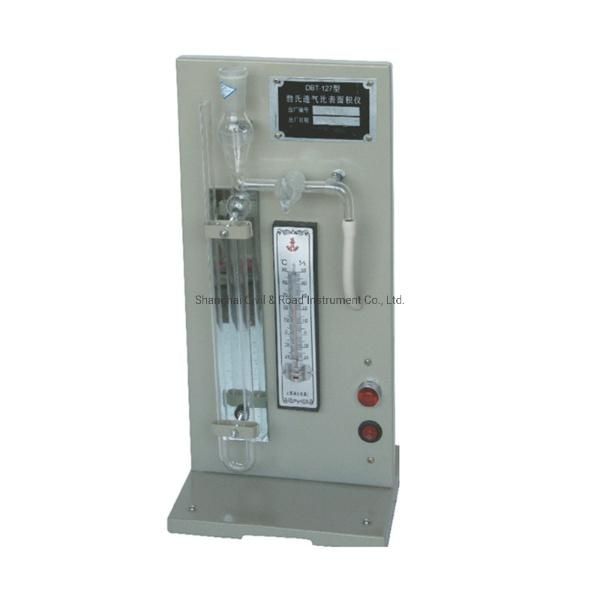

DBT-127 Cement blaine air permeability apparatus Fineness apparatus
I. Description
It is used to test particle size of Portland cement, limes and similar powders in method of specific surface.
Features:Stable performance, best price, good quality , good after-sales service. For the air permeability Measuring of cement specimen.

II. Standard
EN 196-6

Inside diameter of permeability cell	Φ12.7±0.05mm
Height of sample in the cell	15±0.5mm
Perforated disk	35holes
Diameter of the hole	Φ1
Disk thickness	0.1-1mm
Motor voltage	220V
Motor power consumption	less than 15W
Net weight	3.2kg
Size	460×220×170mm
