• Model NO.：SHT-GD130-MC
• Pressure Range：10 Bar-6000bar
• Testing Item：Hose, Tube,Pipe, Valve, Cylinder ,Guage
• Testing Medium：Water, Hydraulic Oil
• Certificate：ISO,Ce
• Transport Package：1 Set,Case by Plywood Case
• Trademark：SUNCENTER
• Origin：China
• HS Code：903120
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. SHT-GD130-MC Pressure Range 10 Bar-6000bar Testing Item Hose/ Tube/Pipe/ Valve/ Cylinder /Guage Testing Medium Water/ Hydraulic Oil Certificate ISO/Ce Transport Package 1 Set/Case by Plywood Case Trademark SUNCENTER Origin China HS Code 903120 Production Capacity 100 Sets/Month

Product Description

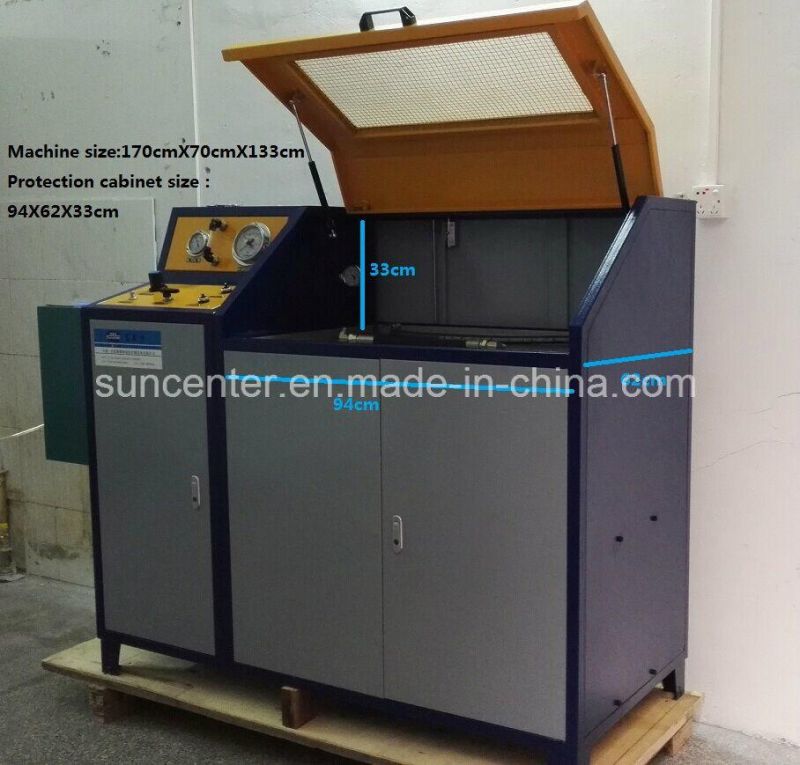

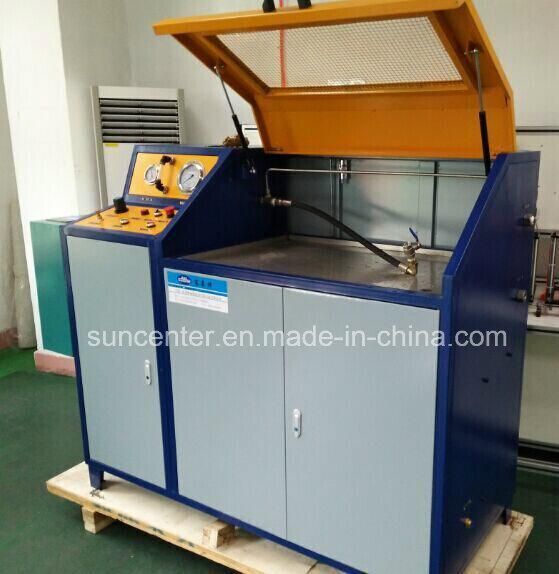

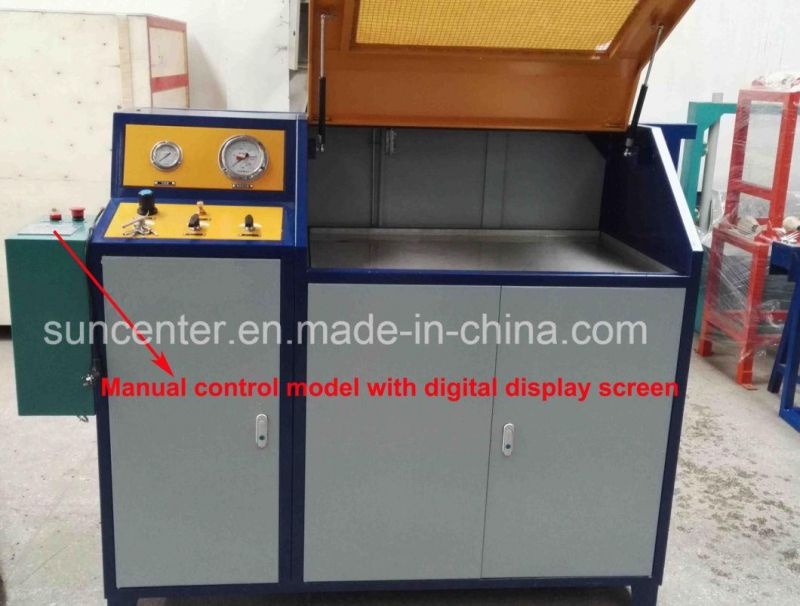

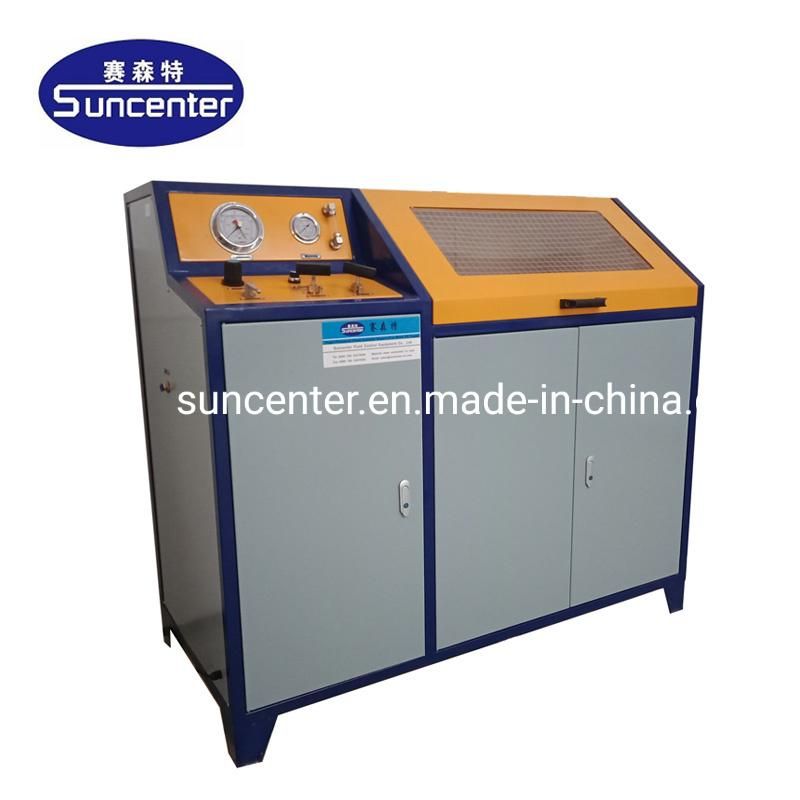

Suncenter 0-6000bar Manual Control Digital Hydraulic Pressure Testing Machine for Hose/Tube/Pipe/Valve with burst cabinet





Suncenter has rich experience in the hose/tube/pipe/valve/sensor/cylinder/gauge pressure test field, we can provide reliable performance hydraulic pressure test equipment, leakage test equipment, burst test equipment and impulse test equipment, according to the standard of (GB/T5568, GB7939, ISO6802, ISO6803, ISO8032, GB/T12722, gb16897, GB/T5563, GB/T10544 etc.)do the test to the hydraulic hose and hydraulic hose assembly, automobile brake pipe, power train pipes and other pressure parts for pressure performance test.
1.Features:By using the compressed air as the power source, the output liquid pressure and the pressure of the driving air source pressure is in proportionality. By adjusting the pressure of the inlet air source, the corresponding liquid pressure can be obtained. When the air pressure and the liquid pressure balanced, the pneumatic booster pump will stop charging pressure, the output pressure is stable in the pre adjustment of the pressure. It has the characteristics of explosion proof, adjustable output pressure, small volume, light weight, simple operation, reliable performance, wide application range, etc.. It is especially suitable for high-pressure and ultrahigh pressure blasting and pressure testing of valves, pipes, joints, pressure

2. Usage.
Applicable range of pressure (bursting) test equipment:
Automobile steering tube, brake pipe, air-conditioning pipe, oil pipe, water pipe cooling, radiator, heater hose, hydraulic equipment, condenser, evaporator, air conditioning filter hose, turbocharging system hose, car brake pump, a cylinder body, a project hydraulic hose, air hose and manifold, rigid pipe, joints, valves,cylinder, pressure gauges, pressure sensor,pressure vessel, pressure transmitter etc.


3. The model significance and model series
SHT-GD100-MC
SHT------- Air driven hydraulic pressure test machine
100------- Indicates a boost ratio of 100:1
MC------- Manual Control
Outlet pressure:100 bar-800 bar



4. Working principle

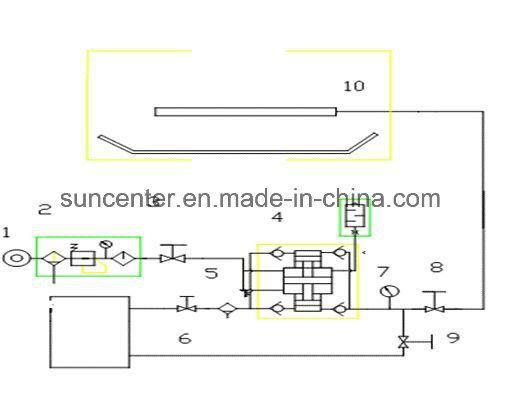

1	Driven air inlet port	6	cut-off valve
2	F.R.L Combination(Add oil ,adjust inlet pressure)	7	Pressure gage
3	Driven air stop valve	8	High-pressure valve
4	Air driven Liquid pump DGGD100	9	high pressure relief valve
5	water filter	10	High pressure outlet

5. Technical Specification

Model	Pressure Ratio	MAX Outlet Pressure(bar)*	Driven Air inlet port	High pressure Outlet port	MAX Flow (L/min)**
SHT-GD4-MC	4:1	32	G 1/2	NPT/ZG	70.0
SHT-GD6-MC	6:1	48	G 1/2	NPT/ZG	48.60
SHT-GD10-MC	10:1	80	G 1/2	NPT/ZG	30.61
SHT-GD16-MC	16:1	128	G 1/2	NPT/ZG	19.73
SHT-GD28-MC	28:1	224	G 1/2	NPT/ZG	11.30
SHT-GD40-MC	40:1	320	G 1/2	NPT/ZG	7.69
SHT-GD64-MC	64:1	512	G 1/2	NPT/ZG	4.94
SHT-GD80-MC	80:1	640	G 1/2	NPT/ZG	3.96
SHT-GD100-MC	100:1	800	G 1/2	NPT/ZG	3.13
SHT-GD130-MC	130:1	1040	G 1/2	NPT/ZG	2.4
SHT-GD175-MC	175:1	1400	G 1/2	NPT/ZG	1.81
SHT-GD255-MC	255:1	2040	G 1/2	NPT/ZG	1.23
SHT-GD400-MC	400:1	3200	G 1/2	NPT/ZG	0.79
SHT-G510-MC	510:1	4080	G 1/2	NPT/ZG	0.65
SHT-G800-MC	800:1	6400	G 1/2	NPT/ZG	0.42


Dongguan Suncenter Fluid Control Equipment Co., Ltd is the member company of Suncenter Group, which is located in Dongguan city of Guangdong province in China. With more than 15 years experiences in fluid pressure exchange and controlling field, we provide various kinds of pneumatic and hydraulic booster pumps, systems and solutions to the customers all over the world. Due to our best product quality, competitive price as well as excellent after-sales service, we have win a great reputation in the field.

Our main products including:
High Pressure Booster Pumps (Air Driven Gas Booster Pump, Air Driven Liquid Pump, Air Amplifiers)
High Pressure Systems (Gas/Liquid Booster Stations,FM200 filling machine, Tube Expanding Machine)
High Pressure Test Equipment(Hydraulic/Burst/Hydrostatic test machine,Cylinder test machine,
Valve test bench,Impulse Testing Machine, etc.)

Product ApplicationOil Industry, Gas Industry, Chemical Industry, Fire Fighting, Research Institutions etc.
Our service
13 months' free warranty since the purchasing date and free technical support during lifetime
