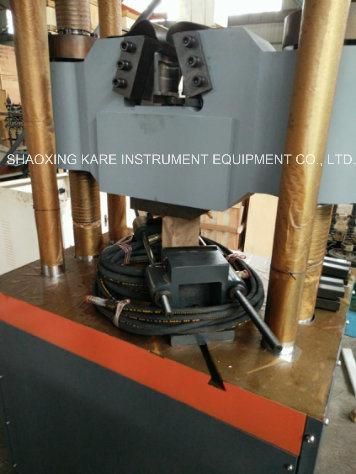

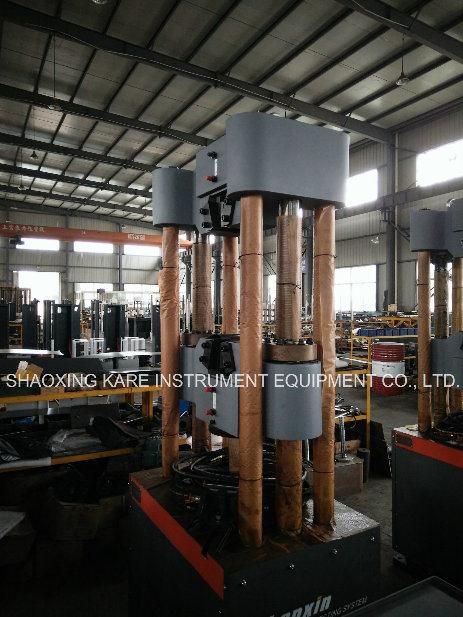

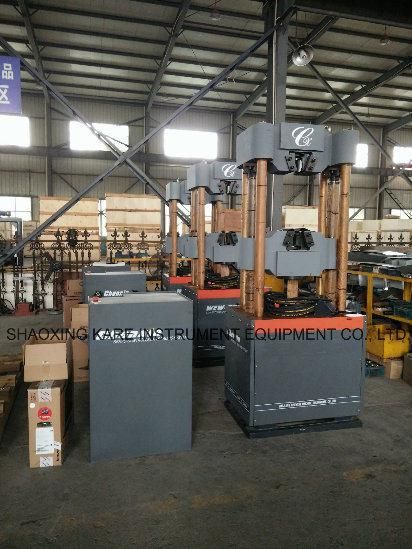

0.5 Class Accuracy Universal Testing Machine for Steel Bar (CXWAW-1000B)

SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.
  • Type：Universal Testing Machine
  • Maxcapacity：1000kn
  • Accuracy Grade：0.5

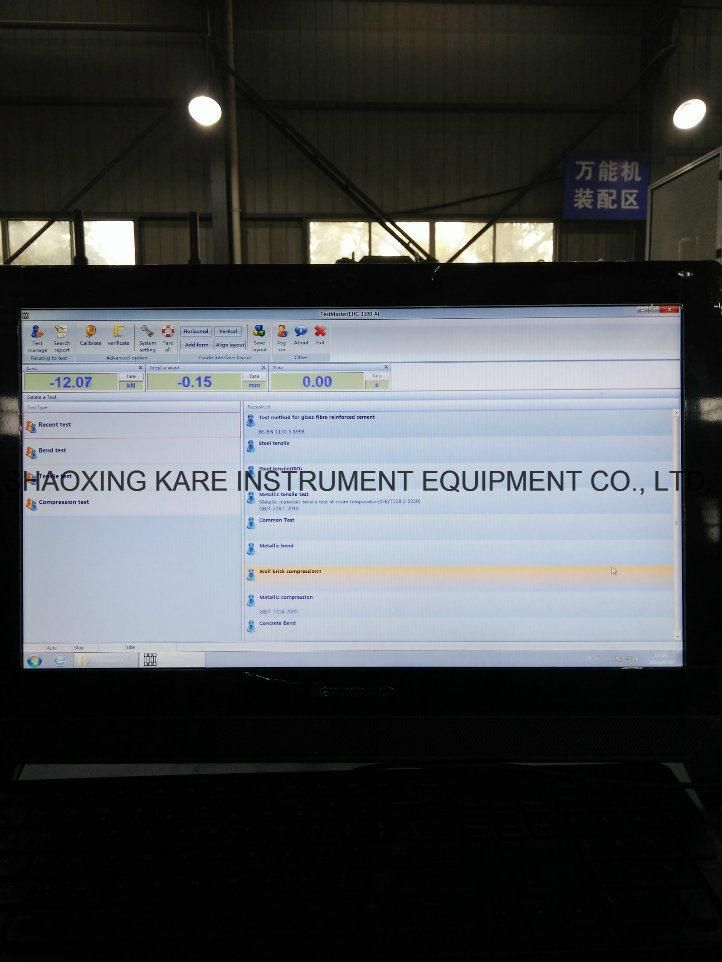

  • Display：Computer
  • Control：Computer Control
  • Weight：3500kg

Base Info

  • Model NO.：CXWAW-1000B
  • Power Source：AC380V
  • Oil Cylinder Position：Under
  • Column Qty：4
  • Lead Screw Qty：2
  • Transport Package：Wooden Case
  • Origin：Zhejiang
  • HS Code：9024101000
  • Production Capacity：20 Sets,Month

Description

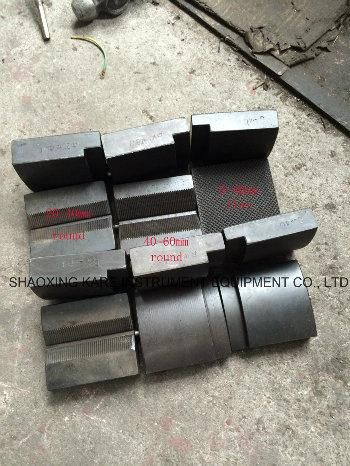

CXWAW-1000BMax. testing force1000KNMeasuring range1%~100%F.SRelative error to force value (%)±0.5Measuring isodromic ratio control0.1-100%F.S./min 0.2-100%F.S./min (precision type)Deformation isodromic ratio control0.1-100% F.S./minDisplacement isodromic ratio control0.5-50mm/minSpeed precision±5% set pointMax. tensile test space700mmMax. distance between upper and lower presser disks700mmFlat sample holding thickness0-40mmDiameter of round specimen20-60mmPiston stroke250mmUpper and lower platen size (mm)235×235Bending test pressed rolling distance30~600mmTensile and compression space between two columns650mmMax. platen rise speed≥70mm/minMax. moving beam speed≥300mm/minMotor power≈2.5KWMain body dimension (L×W×H) (mm)1000×700×2350Control & measurement cabinet dimension(L×W×H) (mm)1080×650×1200Weight≈3500KgNoise≤75dB
