• Model NO.：STMP-200
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：Digital
• Control：No
• Weight：534kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Electric Double- Abrasive Grinding Machine
• Application：Used to Prepare Rock and Concrete Specimen, in Cu
• Automatic Input：0.04- 0.12mm
• Cubes to Be Prepared：50*50*50mm-150*150*150mm
• Cylinder Specimens to Be Prepared：Dia 50-120
• Degree of Finish：Ra 3.2
• Grinding Wheel：Dia 200mm
• Cooling：by Connecting to Piped Water
• Transport Package：Wooden Case
• Specification：2.54CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STMP-200 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control No Weight 534kgs Power Source AC220V Oil Cylinder Position No Product Name Electric Double- Abrasive Grinding Machine Application Used to Prepare Rock and Concrete Specimen, in Cu Automatic Input 0.04- 0.12mm Cubes to Be Prepared 50*50*50mm-150*150*150mm Cylinder Specimens to Be Prepared Dia 50-120 Degree of Finish Ra 3.2 Grinding Wheel Dia 200mm Cooling by Connecting to Piped Water Transport Package Wooden Case Specification 2.54CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

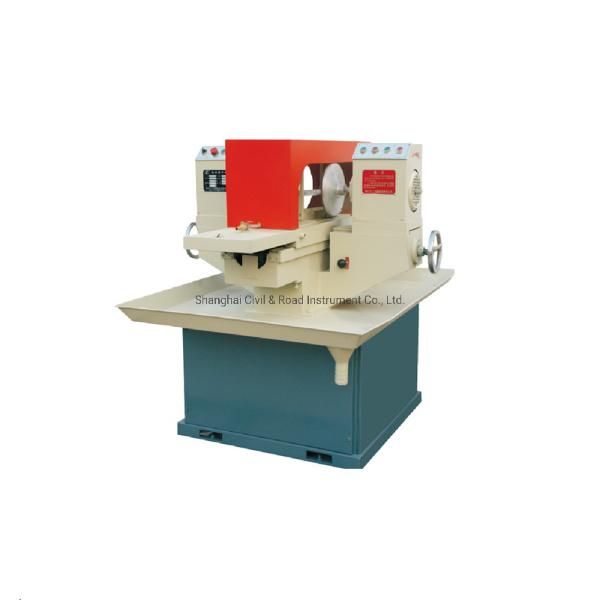

STMP-200 Electric Double- Abrasive Grinding Machine


STANDARD:   ASTM D4543

Used to grind and polish concrete specimens, natural stones, ceramic materials, rock samples etc.The cube cylinder and core specemens can be easily locked on the table and the grinding head can be radially moved either manually or automatically in both directions so the only manual operation requested is the lowering of the grinding head by the top hand wheel. The machine is supplied complete with chip guard, coolant tank, motor pump, one set of abrasive sectors and instruction manual. Diamond grinding sectors are available on request.

STMP-200 Double-Abrasive grinding machine is supplied complete with clamping element for 50, 100, 150 mm cubes. Clamping devices for cylinders are also available on request.


Automatic input	0.04- 0.12mm
Cubes to be prepared	50×50×50mm-150×150×150mm
Cylinder specimens to be prepared	Φ50-Φ120
Standard precision Degree of finish	Ra 3.2
Standard precision Degree of flatness	±0.05mm (within 50 range)
Grinding wheel	dia 200mm
Feature	Cooling by connecting to piped water
