• Model NO.：ST55-2
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：No
• Control：Manual
• Weight：4kg
• Power Source：No
• Oil Cylinder Position：No
• Product Name：Falling Head Soil Permeation Testing Apparatus
• Material：Brass
• Specimen Dimensions：Dia.61.8X40mm
• Pressure Performance：200kpa
• Max Water Leakage：100kpa
• Dimension：182X172X190mm
• Transport Package：Wooden Case
• Specification：182x172x190mm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. ST55-2 Accuracy Grade 1 Load Way No Loading Method No Display No Control Manual Weight 4kg Power Source No Oil Cylinder Position No Product Name Falling Head Soil Permeation Testing Apparatus Material Brass Specimen Dimensions Dia.61.8X40mm Pressure Performance 200kpa Max Water Leakage 100kpa Dimension 182X172X190mm Transport Package Wooden Case Specification 182x172x190mm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

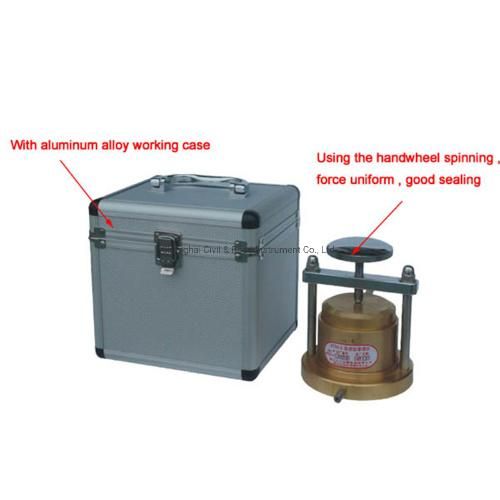

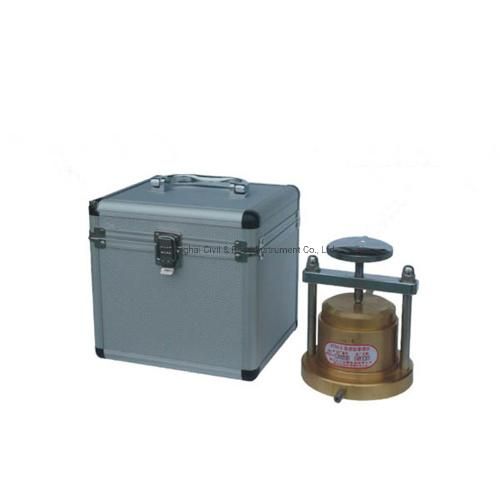

ST55-2 Falling head permeability apparatus

Application:
Used to determine the permeability coefficient of the soil, The whole system is compact. Reasonable design, Convenient to disassemble and assemble, equable stress (use the hand wheel to do the rotary extrusion in the center). All accessories made of high quality cuprum except frame.

There are two Position-limit flight of steps on the protective ring, during the process of pack stop-hydrosphere, not only assure the sample will not hang, but also protect cutting ring and control the deformation degree of rubber ring.

Features: Convenient to disassemble and assemble, equable stress (use the handwheel to do the rotary extrusion in the center), good leak-proofness.

Parameters:


Product name	Falling Head Soil Permeation Testing Apparatus
Material	Brass
Specimen dimensions	Dia. 61.8x40mm
Pressure resistant performance	200 Kpa
Max water leakage	100 Kpa
Dimension	182x172x190mm
Weight	4kg
