Fully Automatic Circuit Breaker Mechanical Characteristics Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Time Measuring Range：400ms
  • Time Measuring Resolution：0.1ms
  • Speed Measuring Range：0~20m,S
  • Speed Measuring Resolution：0.01m,S
  • Travel Measuring Range：600.0mm
  • Travel Measuring Resolution：1mm

Base Info

  • Model NO.：GDGK-307
  • DC Power：DC 30~250V, 0~20A
  • Working Power Supply：AC 220V±10% 50,60Hz
  • Working Temp.：0~50&Deg
  • Related Humidity：85% Rh
  • MOQ：1 Set
  • Delivery Time：7 Days
  • Transport Package：Standard Wooden Case
  • Trademark：GOLD
  • Origin：China
  • Production Capacity：500 Sets

Description

Speed measurement250mm linear resistance scale: 0~20m/s; error:<0.5%RDG+2D25mm linear resistance scale: 0~20m/s; error:<0.5%RDG+2DAngle sensor: 0~20m/s; error:<0.5%RDG+2DAcceleration sensor: 0~20m/s; error:<5%RDG+2DCoil current measurementRange: 0~20A; resolution: 0.001A; error:<0.01AVibration measurementRange: 0~5000G; error:<3%Internal DC power sourceVoltage: 12~265V; current:0~20AData SaveBuilt-in 8G storage memory and 2 USB interface for data export and external keyboard or mouse connectionPower supplyAC220V±10%; 50Hz±10%Working environmentTemperature: -10~50°C; Humidity:<80%



Features:

1. Measurement of closing time, opening time, time spread between poles, time spread between units of one pole, bounces etc.
2. Measurement of closing speed, opening speed and average speed.
3. Measurement of clearance between open contacts, over travel, overshoot travel and total travel.
4. Measurement of closing coil current time curve, opening coil current time curve and the maximum coil current
5. Test travel time curve, speed time curve and acceleration time curve
6. Measurement of pre-insertion resistance value and pre-insertion ion time.
7. Test contact resistance
8. Measurement of dynamic resistance time curve and length for arcing contacts
9. Vibration test, including vibration fingerprint curve acquisition, management, and vibration fingerprint curve automatic matching.
10. CO-t1-CO,O-t-CO-t1-CO,CO rated operating sequence verification test.
11. Drawing Envelopes for reference travel curve and compare travel curve with envelopes
12. Mechanical travel curve automatic compare with saved travel curve
13. Measurement of CO time (close-open time) and OC time (Opening-Closing time)
14. Graphite contact closing time, opening time, dynamic resistance curve measurement
Zoom, editors, statistics and analysis for measurement curves.
15. 12.1-inch touch screen for control and data input
16. Built-in micro printer for test result printout.
17. Generate WORD format test report automatically (all reports and data can be exported through Flash disk).

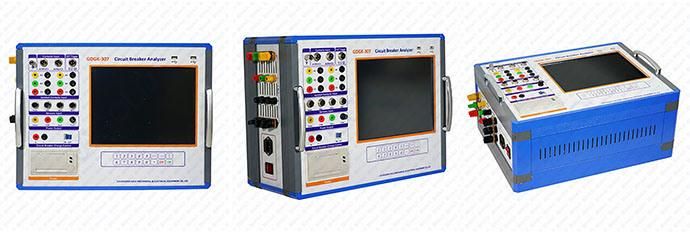

Product show

Fully Automatic Circuit Breaker Mechanical Characteristics Tester


Precautions:

1. Before using the instrument, please ground the instrument reliably to ensure the safety of people and the instrument.
2. Before using the instrument, please check whether the power supply is AC 220V power, otherwise the instrument may be damaged.
3. The instrument has 220V DC current output during operation, please pay attention to safety.
4. In the case of using the internal DC power control switch to open and close, please carefully check the control wiring before the test. Short circuits are strictly prohibited to avoid damage to the DC power supply or control contacts in the machine.


FAQ

  • What's the delivery lead time?

"For most of the products, delivery lead time is 10 days after the order is confirmed; For some customized products, please check with the sales person."

  • What's the payment term?

"For total amount below USD3,000.0, payment term is 100% T/T as deposit; For total amount above USD3,000.0, payment term is 30% T/T as deposit, the balance before delivery; The payment term is also negotiable."

  • What's the warranty period?

"Warranty period is 1 year"


Packing & Shipping

Fully Automatic Circuit Breaker Mechanical Characteristics Tester
