• Model NO.：GD-264B
• Testing Mode：Automatic
• Standards：ASTM D664
• Price Level：Low
• OEM Supply：Yes
• Warranty or Guarantee：1 Year
• Dimension：560 Mm*430mm*380mm, 21kg
• Service：Engineer Available to Service Overseas
• Transport Package：Packed in Container
• Specification：560 Mm*430mm*380mm, 21kg
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：200 Sets, Month

Basic Info.

Model NO. GD-264B Testing Mode Automatic Standards ASTM D664 Price Level Low OEM Supply Yes Warranty or Guarantee 1 Year Dimension 560 Mm*430mm*380mm, 21kg Service Engineer Available to Service Overseas Transport Package Packed in Container Specification 560 Mm*430mm*380mm, 21kg Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 200 Sets/ Month

Product Description

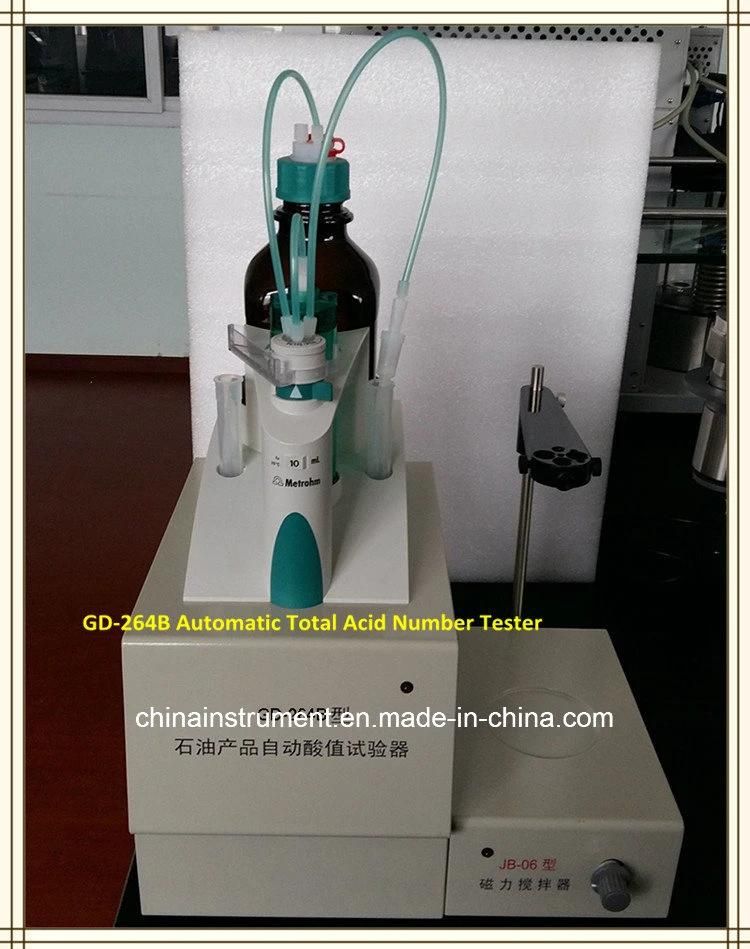

GD-264B ASTM D664 Automatic TAN Total Acid Number Titrator




Introduction:

The Automatic TAN Total Acid Number Titrator uses potentiometric titration principle. Recording the titration of the electrode potential and the titration volume, find out the equivalence point and corresponding titrant volume, and thus obtained the sample pH value. This instrument can accurately detect the acid value of transformer oil, turbine oil, anti oil, diesel, gasoline and other petroleum products;Widely used in chemical industry, electric power, oil and other industries, it's the ideal products to current meter acid number of petroleum products. Standard:GB/T264 Determination of acid number,GB7599-87 Determination of acid number in transformer and turbine oils in service(BTB),GB/T7304-2000. GB/T 18609-2001. D664-01.ASTM D664-2011)


Features:

1. Windows operating platform, Users can dialogue with the computer directly. It's easy to operate. Has a workstation features.
2. Titration curve real-time display, the titration curve and data storage and printing.
3. Imported titration unit.Measuring accuracy better stability.
4. Automatic cleaning, automatic constant liquid.
5.Automatic detection of end points, Automatic filtering false end, At the same time can determine the endpoint of artificial selection.
6. With continued dosing function.


Specifications:

1.Acid number measurement range:  ≥0.05 mgKOH/g
2.Potential measurement range:  (0~1800.0)mV
3.Burette volume: 10mL
4.Minimum titration volume: 0.001mL
5.Burette precision:  ±0.1%F•S
6.Precision:   Fit or above the relative standards
7.Power supply:   AC(220±11)V ,50±1Hz
8.Environment temperature: 5ºC~35ºC
9.Relative humidity:      Less 80%
10.Outline dimension:About 350mm*280mm*178mm(Without PC)
11.Net weight: Main unit 14Kg
