• Model NO.：GW-050
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-050
• Vertical Fixture with：25mm
• Vertical Fixture Weight：0.25-0.34 Kg
• Two Vertical Fixture Distance：6.35mm
• Reciprocating Stroke：75mm
• Reciprocating Frequency：30 Cpm
• Specimen Closed Angle：60 Deg
• Speclimen Opening Angle：30 Deg
• Transport Package：Wooden Case
• Specification：28*55*66cm
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Pieces,Year

Basic Info.

Model NO. GW-050 Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-050 Vertical Fixture with 25mm Vertical Fixture Weight 0.25-0.34 Kg Two Vertical Fixture Distance 6.35mm Reciprocating Stroke 75mm Reciprocating Frequency 30 Cpm Specimen Closed Angle 60 Deg Speclimen Opening Angle 30 Deg Transport Package Wooden Case Specification 28*55*66cm Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

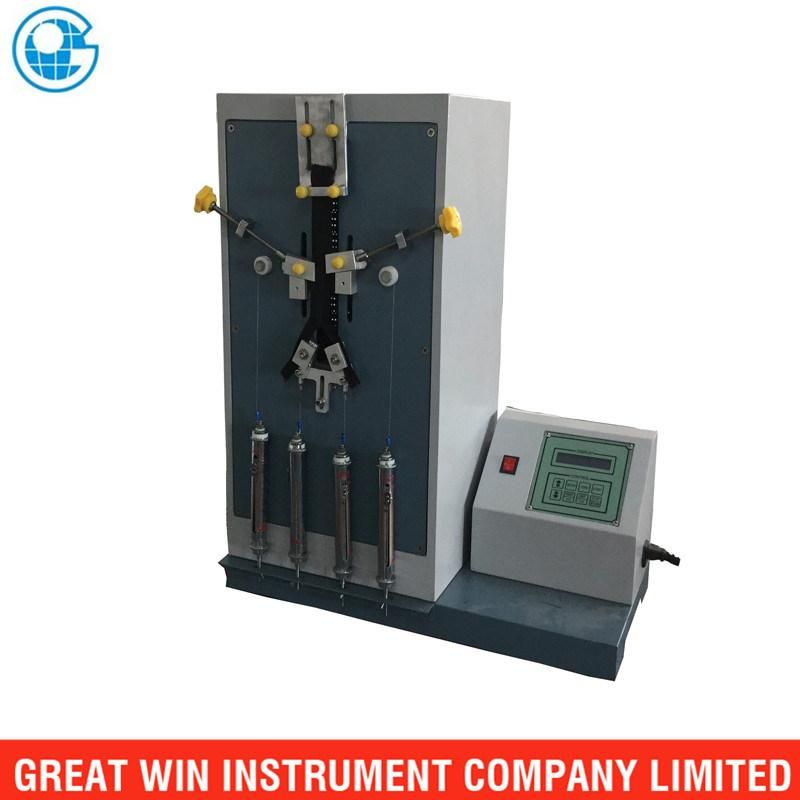

 Electronic Zipper Pull Fatigue Tester( GW-050 )

Brief introduction:
Reciprocation Tester is used to test zipper in horizontal and vertical forces, can with stand the required number
Of pulling back and forth. Stop the machine in the test after pulling the zipper pull head to the required number of
Pull 30rpm constant speed, and then view the zippers damaged cases.

Technical Specifications:

model	GW-050 Reciprocation Test for Zipper/Sliders
Vertical fixture width	25 mm
Vertical fixture weight	0.28~0.34 kg
Two vertical fixture distance	6. 35 mm
Reciprocating stroke	75 mm
Reciprocating frequency	30 cpm
Specimen closed angle	60°
Specimen opening angle	30°
Counter	6-digit
Motor	1/4 HP
Power Supply	1ø, 220V, 50Hz
Volume (W×D×H)	About  30×55×68 cm
Weight	About  35 kg

Standard for:

SATRA TM50,QB/T2171




What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
