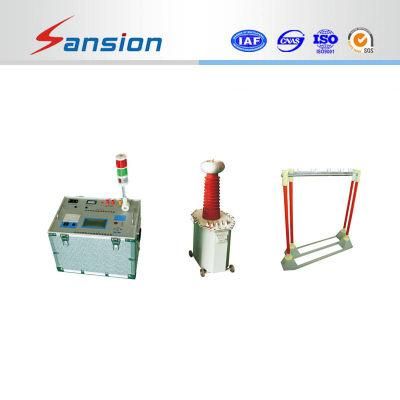

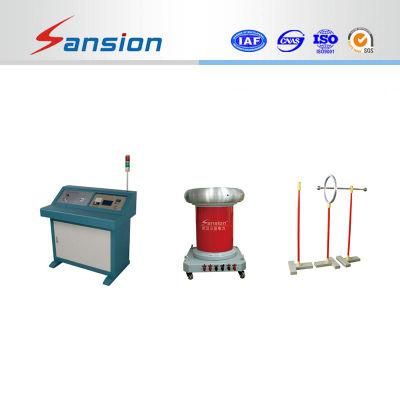

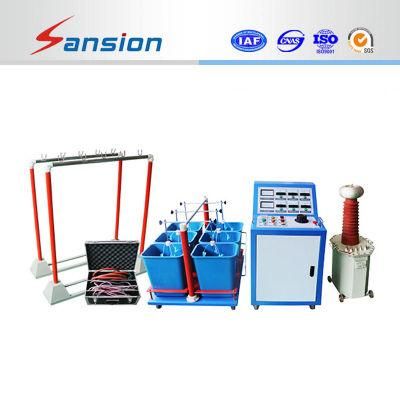

Insulating Glove and Boots Leakage Current and Withstand Voltage Tester Glove Test Machine

Sansion Power Electric Co., Ltd.
  • Type：Strength Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：1
  • Load Way：Mechanical Load
  • Loading Method：Static Load
  • Display：LCD

Base Info

  • Model NO.：SXNYZ
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC 110V,220V at Customized
  • Oil Cylinder Position：Under
  • Screen：LCD
  • Transport Package：Plywood Case
  • Specification：ISO9001 SGS
  • Trademark：Sansion
  • Origin：Wuhan, China
  • HS Code：9030339000
  • Production Capacity：100 Units

Description

Rated capacity:10kVAInput voltage:AC220VOutput voltage range:0-150kV, 66mA AC RMS
0-210kV, 47mA, DC RMSRating100%rated-1minute , 50%-continuousOutput controlAutomatic & manual controlVoltage measuring error<±(0.2%U+0.02%Umax) U is reading value, Umax is upper limit value of measuring rangeInput current range:45ACurrent measuring error<±(0.2%I+0.02%Imax) I is reading value, Imax is upper limit value of measuring rangeLeakage current range:30.0mALeakage current measuring error:±(0.5%I+2digits), I is reading valueLeakage current resolution:0.1mATiming range:10-990s

More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation. Thank you!
