• Model NO.：AS-DT-150
• Loading Method：Dynamic Load
• Display：Digital
• Control：Pid
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Wooden Case
• Specification：5kg load
• Trademark：ASLi
• Origin：China
• HS Code：8514109000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. AS-DT-150 Loading Method Dynamic Load Display Digital Control Pid Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Transport Package Wooden Case Specification 5kg load Trademark ASLi Origin China HS Code 8514109000 Production Capacity 100 Sets/Month

Product Description

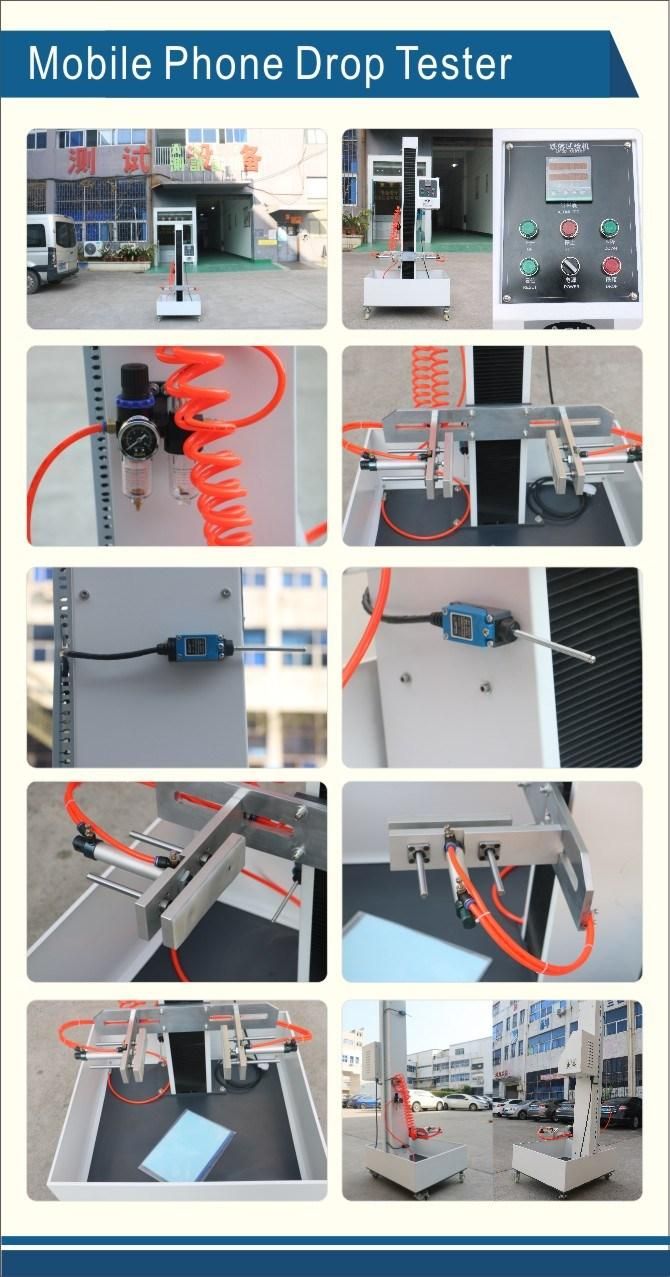

Pneumatic Mobile Phone Drop Test Machine with 5kg Max. load


Application:
This machine is suitable for free fall test of mobile phone (mobile phone), walkie-talkie, electronic dictionary, building intercom, charger, power supply, CD/MD/MP3 and other small consumer electronic products and parts.

Feature:
The machine adopts pneumatic structure, and the tested parts will be clamped in a special fixture (adjustable stroke), press the down and down button, the cylinder will be released, and the test pieces will be tested in free fall.Drop height can be adjusted up and down, with a height scale, the drop height can be known.A variety of drop floor can be selected to meet different test standards.

Meet Standard:
JIS C 0044 IEC 60068-2-32

Main Parameter:
1. Maximum Load: 5 Kg
2. Effective drop height: 300~1500mm
3. Drop height indication: 1cm
4. Drop height display: LED meter digital display
5. Maximum Dimension of Sample: 300*400mm
6. Drop floor : steel plate
7. Drop mode: edge, corner, face all-round drop
8. Transmission mode: electric lifting, pneumatic drop
7. Base plate size: 500x600x20mm
8. Use air pressure: <1Mpa
9. Machine size (approx.): W700 x D900 x H2200mm
10. Machine weight: 80kg
11. Power source: 1∮, 220V, 5A

Drop Test Machine Features of equipment:
1. The cabinet is treated with electrostatic baking varnish, the whole machine is designed reasonably, the operation is safe, stable, accurate and beautiful;
2, pneumatic clamping products, the front end of the fixture is equipped with silicone rubber, so that the product is not easy to deform;
3, test height electric lifting mode, high-precision instrument indicating test height;
4, equipped with a protective box, can prevent the product from falling out of the outside
