GDOT-3C 80kV 3 Cups Transformer Insulation Oil Dielectric Strength BDV Tester

HV Hipot Electric Co., Ltd.
  • Type：Strength Testing Machine
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：0-100Kg

Base Info

  • Model NO.：GDOT-3C
  • Power Source：AC220V
  • Output Voltage：0-80kv
  • Power Input：AC220V± 10%, 50Hz±1Hz
  • Capacity：1.5kVA;
  • Accuracy：±3%
  • Voltage Distortion Rate：≤3%
  • Voltage Increasing Speed：2.0-3.5kv,S, Adjusatble
  • Standing Time：15mins, Adjustable
  • Transport Package：Carton or Wooden Case
  • Specification：ISO, SGS
  • Trademark：HV Hipot
  • Origin：Wuhan China
  • HS Code：9030899090
  • Production Capacity：2000PCS,Year

Description

Output voltage0-80kV optional
Power distortion rate<1%
Voltage increasing speed2.0kV/s, 2.5kV/s, 3.0kV/s, 3.5kV/s optional ,Error 0.2kV/s.
Voltage accuracy2%* reading + 2 digital
DisplayLarge LCD screen
Electrode gapstandard 2.5mm
Test time6 times(1-6 times optional)
Static time5 min (1-9 min optional)
Booster Capacity1.5kVA
Power inputAC220V± 10%, 50Hz±1Hz
Power200W
Working temperature0-40ºC
Humidity<85%RH
Dimension670mm*420mm*410mm
Weight38kg

 Accessories

GDOT-3C Tester       1pc
Oil cup               1pc
Power cord          1pc
Ground cable        1pc
Spare fuse           2pcs
Stirring nut           2pcs
Standard 2.5mm      1pc
Tweezer             1pc
Print paper           1rolls
User's guide          1pc
Factory test report     1pc

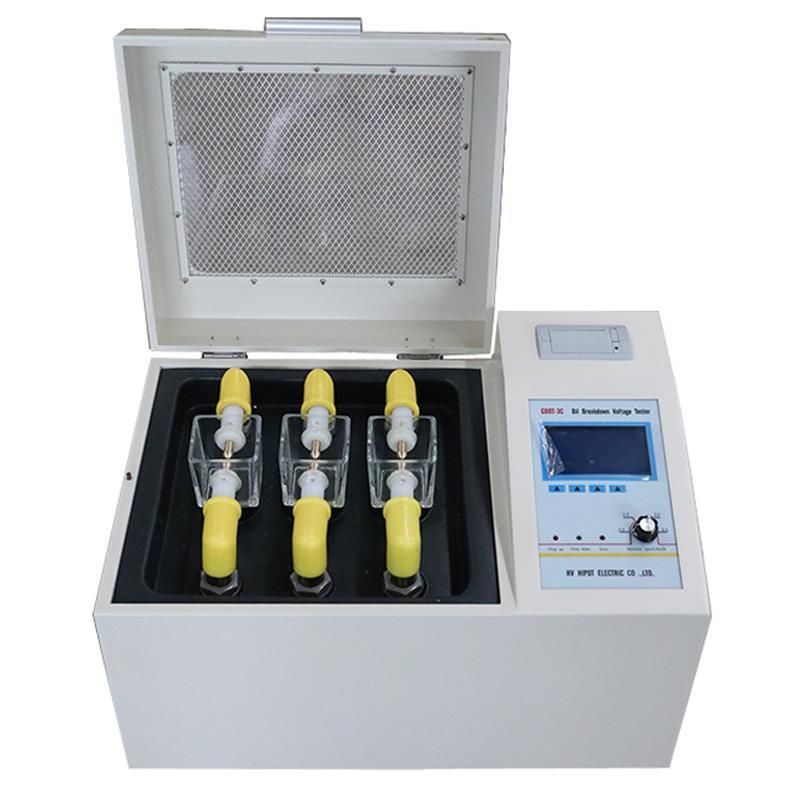

GDOT-3C 80kV 3 Cups Transformer Insulation Oil Dielectric Strength BDV Tester
