Multiple Pulse Cable Fault Tester

Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
  • Warranty：1 Year
  • Connectors：USB

Base Info

  • Model NO.：XHGG502
  • Test Mode：Saved Test
  • Usage：Network Cable Tester, HDMI Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester
  • Test Region：Forming Cable
  • Cable Type：Shielded
  • Power：Electricity
  • Certification：CE
  • Customized：Customized
  • Color：Black

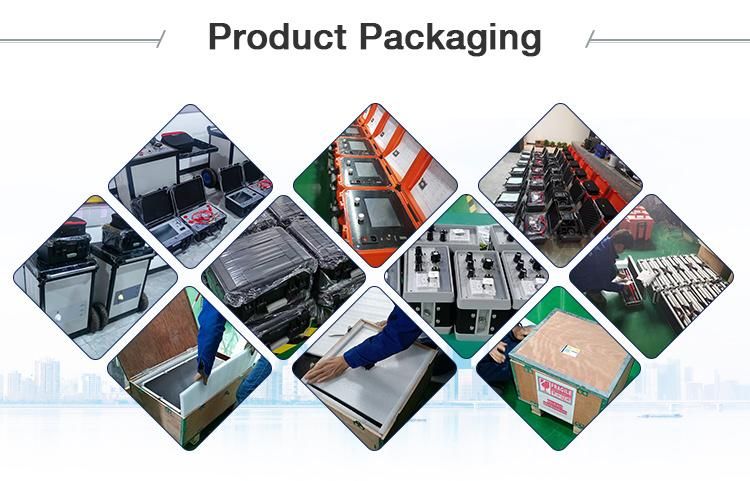

  • Transport Package：Wooden Box with Foam Inside
  • Specification：350*280*170 (mm)
  • Trademark：XZH TEST
  • Origin：China Xian
  • HS Code：8543201000
  • Production Capacity：1000 Pieces ,Year
  • Package size per unit product：35.00cm * 28.00cm * 17.00cm
  • Gross weight per unit product：8.000kg

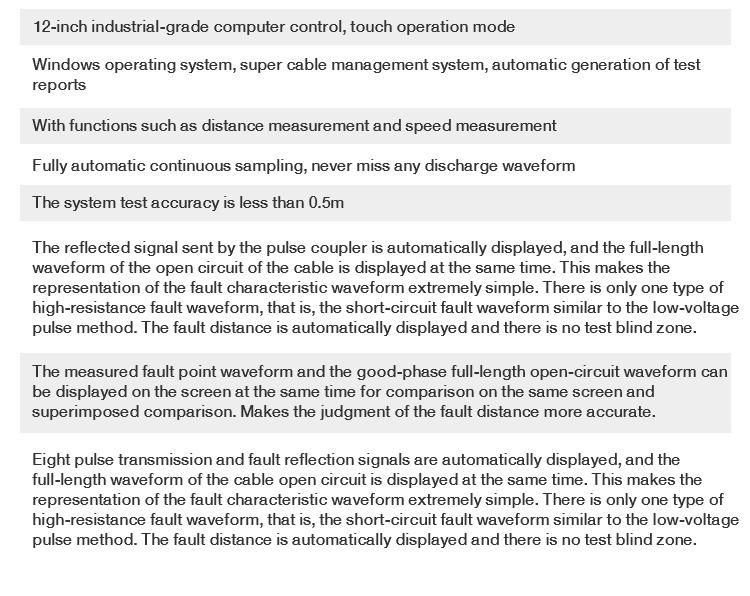

Description

Data sampling rate60MHz, 120MHz, 240MHz, 400MHzTest methodlow-voltage pulse method, high-voltage flashover method, multiple pulse methodPulse amplitude400V p-pPulse width0.1uS & 2 uSMeasuring distance> 60kmReading resolution0.1mThere are three types of test cable length<1km(short distance); <3km (medium distance); >3km (long distance) (test low-voltage pulse amplitude:400Vp-p)Pulse coupler withstand voltage38kv DCWith the function of storing massive test waveformsThe waveforms tested on site can be convenniently stored in the instrument in a prescribed order for recall and observation at any timeBuilt-in polymer lithium battary power supplyIt can work continuously for more than 4 hours after being fully charged. Fully meet the requirements of on-site testing. It can also work with an external AC power supply.Working conditionsTemperature -25ºC ~ +55ºC, relative humidity 85%, atmospheric pressure 750 ± 30mm Hg.
Multiple Pulse Cable Fault Tester
