• Model NO.：QT-1220S series
• Loading Method：Dynamic Load
• Display：PC Computer
• Control：Computer Control
• Weight：70kg
• Power Source：AC220V
• Oil Cylinder Position：Electronic
• Transport Package：Wooden Case
• Specification：360*260*940mm
• Trademark：SUZHOU QIANTONG
• Origin：Jiangsu, China
• HS Code：9024800000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. QT-1220S series Loading Method Dynamic Load Display PC Computer Control Computer Control Weight 70kg Power Source AC220V Oil Cylinder Position Electronic Transport Package Wooden Case Specification 360*260*940mm Trademark SUZHOU QIANTONG Origin Jiangsu, China HS Code 9024800000 Production Capacity 1000 Set/Year

Product Description

1. Qiantong main scope of testing machineElectronic universal material testing machine, Horizontal tension testing machine, Hydraulic universal testing machine, MFI, Charpy Impact, Izod Impact, HDT-Vicat tester, Hardness tester, Torsion tester, Metallographic series, Oven and so on. (We accept customization.)

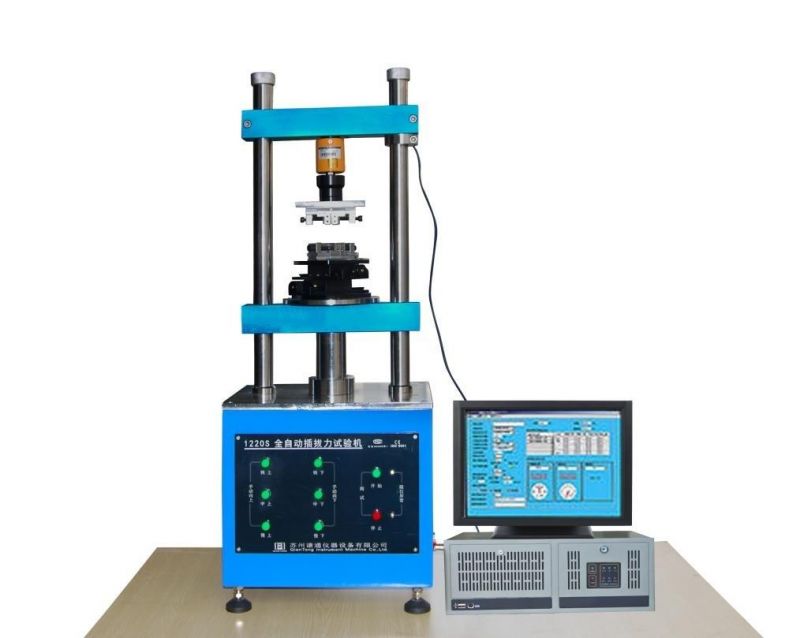

2. Product Brief:The 1220S tester is suitable for insertion force and pull out force test of various connectors and terminals.

Advantages:

1. With Qiantong professional design of automatic heart device, can measure the plug force test completely accurate;
2. English and Chinese display interface;
3. Easy to operate, and all data can be stored.

Features:

1. All the testing parameters can be set by computer and be stored
2. The reports can be stored, such as checking report, displacement curve and so on.
3. There is protective function when the machine is over the load.
4. The loading units can display N,lb,gf or kgf.
5. The testing data can be stored in HD.
6. The heater of inspection reports can be changed.
7. The inspection reports can be changed to WORD.
8. With the dynamic impedance testing system, dynamic impedance can be tested at the same time as the plug force and "load-impedance-stroke curve" can be drawn.

3. Specifications

No.	Name	Parameters
1	Maximum testing force	50,20,10Kg(optional)
2	Precision level	0.5
3	Minimum resolution	0.01Kg or 1g
4	Maximum measured height	150mm
5	Minimum trimming distance	0.01mm
6	Measuring speed range	0.05-200mm/min
7	XY axis movement range	0-75mm
8	Shape size	360*260*940mm
9	Weight	70Kg
10	Power	220V 50Hz 200W

4. Testing project

1. Connector single-hole plug test;
2. Connector whole row plug and pull test;
3.  Connector plug and pull life test;
4.  Connector Pin and plastic retention test;
5. Connector NORMAL FORCE test;
6. General compression and tensile failure test.

FAQ
Q:Are you a trade company or factory?
A:Our company is a factory and directly sales.
Q:Can your company accept customization?
A:Yes. Our machines can be customized by client.
Q:How to guarantee your after-sales service?
A:Our philosophy is one year warranty and lifetime service. After the warranty period is exceeded, if there is any problem, we will provide support for you in time. (only charge travel expense and parts cost at most.)
Q:What is the language about software?
A:It can switch between Chinese and English.
Q:May the customer not use your company's computer?
A:Sure. But please tell us what type your computer is. We need to confirm your computer can install the software. And we can subtract the price of computer from offer.
Q:Can the machine be upgrade?
A:Yes, it can.
Q:Can the machine install a protective door?How much?
A:Yes, we can. About 368$(standard model with one protective door).
