• Loading Method：Pneumatic Hydraulic Pump
• Display：Pressure Gauge
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Material：Stainless Steel and Aluminum Alloy
• Application：Mainly Used for Pressure Testing for Kinds of Pipe
• Maximum Output Pressure：3200 Bar Base on 8 Bar Air Driven Pressure
• Core Element：Air Driven Liquid Pump
• Warranty：One Year Warranty, Long Life Service
• Transport Package：Wooden,Plywood Box.
• Specification：150KG
• Trademark：Terek
• Origin：Shandong
• Production Capacity：5000pieces,Year

Type

Pressure ratio

Max outlet pressure  (bar)

Max flow   (L/min)

Connection size(inch)Drive

Connection size(inch)   Inlet

Connection size(inch)   Outlet

THT-LDD-6-MC

6:1

48

48.6

G1/2

NPT 1/2

NPT 1/2

THT-LDD-10-MC

10:1

80

30.61

G1/2

NPT 1/2

NPT 1/2

THT-LDD-16-MC

16:1

128

19.73

G1/2

NPT 1/2

NPT 1/2

THT-LDD-28-MC

28:1

224

11.3

G1/2

NPT 1/2

NPT 1/2

THT-LDD-40-MC

40:1

320

7.69

G1/2

NPT 1/2

NPT 1/2

THT-LDD-64-MC

64:1

512

4.94

G1/2

NPT 1/2

NPT 3/8

THT-LDD-80

80:1

640

3.96

G1/2

NPT 1/2

NPT 3/8

THT-LDD-100

100:1

800

3.13

G1/2

NPT 1/2

NPT 3/8

THT-LDD-130

130:1

1040

2.4

G1/2

NPT 1/2

M14*1.5

THT-LDD-175

175:1

1400

1.81

G1/2

NPT 3/8

M14*1.5

THT-LDD-255

255:1

2040

1.23

G1/2

NPT 1/4

M14*1.5

THT-LDD-400

400:1

3200

0.79

G1/2

NPT 1/4

M14*1.5

The diameter of the drive cylinder:160mm
Drive cylinder stroke:50mm
High pressure Cylinder stroke:50mm
The maximum driving pressure of the drive air is 8 bar/116psi
In order to extend the lifetime of the booster pump,
The driving air pressure should not be higher than 8bar.
High pressure test Interface connection screw size can be customized according to customer requirements. NPT1/2  NPT1/4  NPT3/8  ZG1/2 and so on.

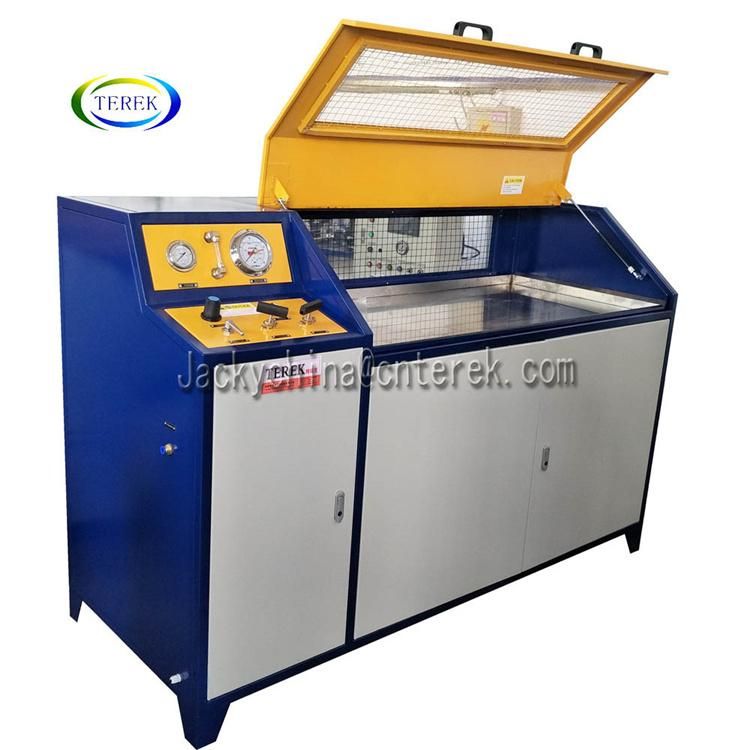

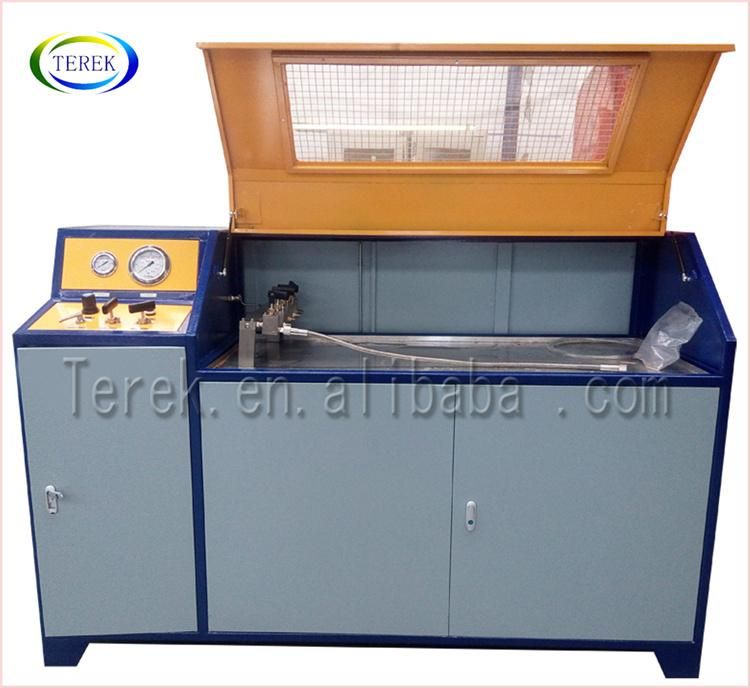

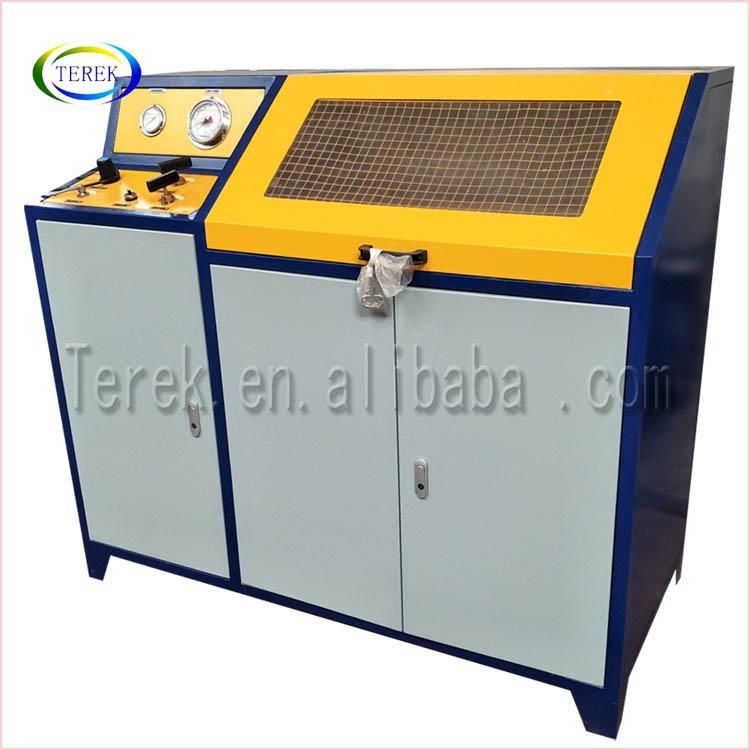

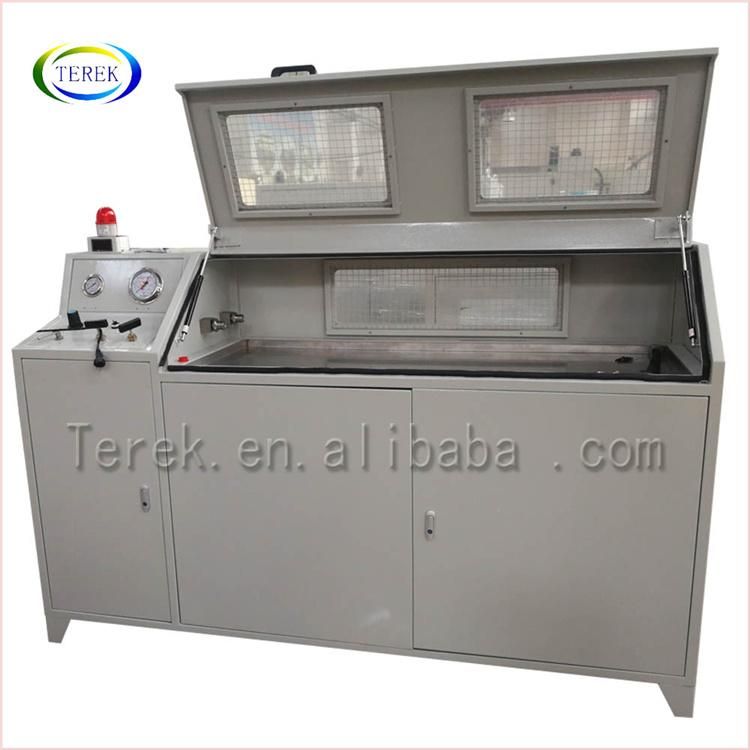

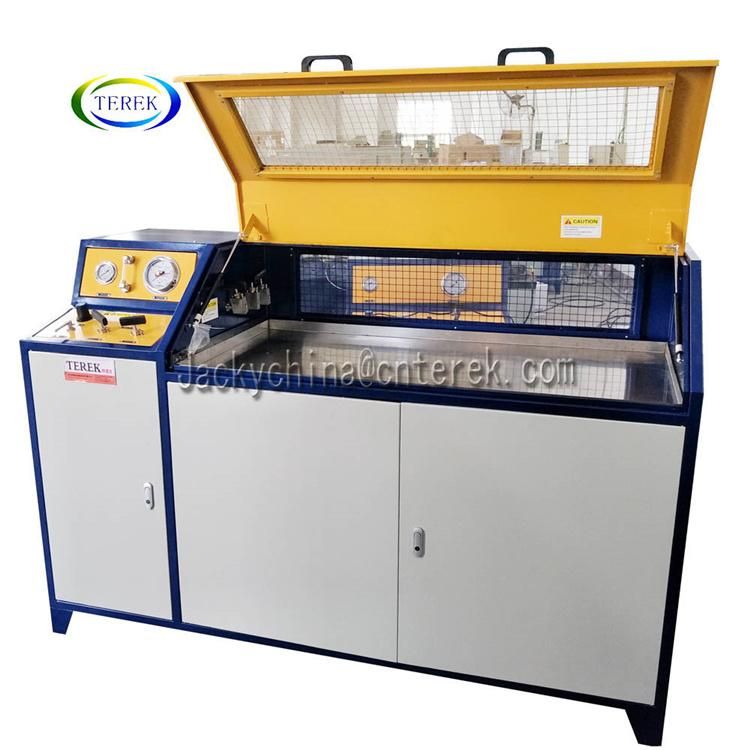

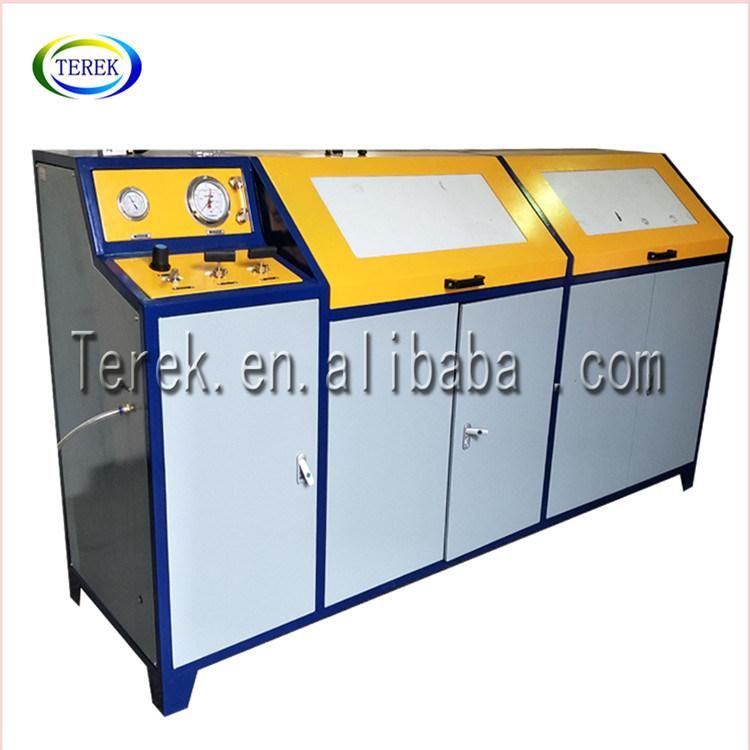

Detailed Images



Product advantages

1.wide range of applications for 6-200mm diameter pipeline hydrostatic burst test.

2. No heat, flame or spark risk

3. Infinitely variable output pressure and flow capability

4.it is easy to finish testing by a few buttons and the valve

5.high degree of integration, which integrated seal tooling, testing bench, pressure gauge display in a single device.

5.Good observation via real-time observation window.With comprehensive security protection; observation window with security protection mechanism which cannot operate before turn off. Meanwhile with emergency stop switches, safety valves and other hardware protection measures.

6.strong anti-corrosion; components and equipment are made of stainless steel.1. Reliable ,Easy to Maintain ,compact and robust.

7.Seals system designed for long working life, No lubricated required.

8. Wide range of standard and customized liquid pressure test systems

9.The test fluid system and driving fluid system are separated; it is more convenient for test temperature control and test media diversification

Application Fields

1. Water pressure test, pressure leak detection. Wide range of applications for 6-200mm diameter pipeline hydrostatic burst test.

2. Pressure resistance and burst test of the valve and pipeline

3. pressure vessel pressure test and blasting test

4. Static pressure and burst test of various metal and non-metal pipes

5. Withstand pressure test of various oil tools

6. Pressure testing and blasting testing of fire fighting equipment such as fire hoses and fire extinguishers

7.According to the customer's pressure requirements, pneumatic liquid pressure test pumps are used to different types of pressure testing machines.

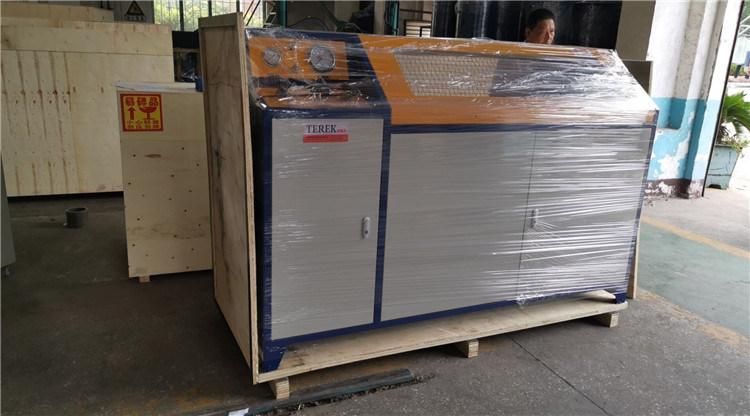

Packaging & Shipping
