• Model NO.：HD-B609B-S
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Product Name：Tensile Strength Testing Machine
• Test Speed：0.1-500mm,Min(Convertible)
• Motor：Panasonic Servo Motor
• Panasonic Servo Motor：0.001mm
• Stroke：1000mm
• Sensor：Celtron Load Cell
• Operate and Display：Computer
• Screw：High Precise Ball Screw
• Power：One Phase, AC 220V
• Load Cell：Celtron Sensor
• Transport Package：Strong Wooden Case
• Specification：Atsm
• Trademark：HaiDa
• Origin：Guangdong China
• HS Code：9024109000
• Production Capacity：60sets,Month

ItemDescriptionMax. Force100 kg (1KN)Load cellGermany brand load cell for high accuracyControl system LCD / PC with windows 7 systemMotorPanasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rodForce readingkgf, Ibf, N, KN, T etcStoke900mm including fixtureLoad cell Resolution1/250,000Load Precision≤0.5%Test speed0.1~500mm/min (adjustable)Software TM 2101Curves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strainData displayMax. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm²) etc…Safety features E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat (The table parameters for the company Standard Model parameters, we support customer customization parameters)

ADVANTAGE:
1.High-Tech, Low Noise
2.Humanized Industrial Design, Easy To Place And Transport
Security Protection System
Technical Engineer Support After Service
Manufacturers Direct Sales, Factory Prices
1 Year Warranty , Free The Use Of Equipment Manual
Sales In Stock, Fast Delivery Time

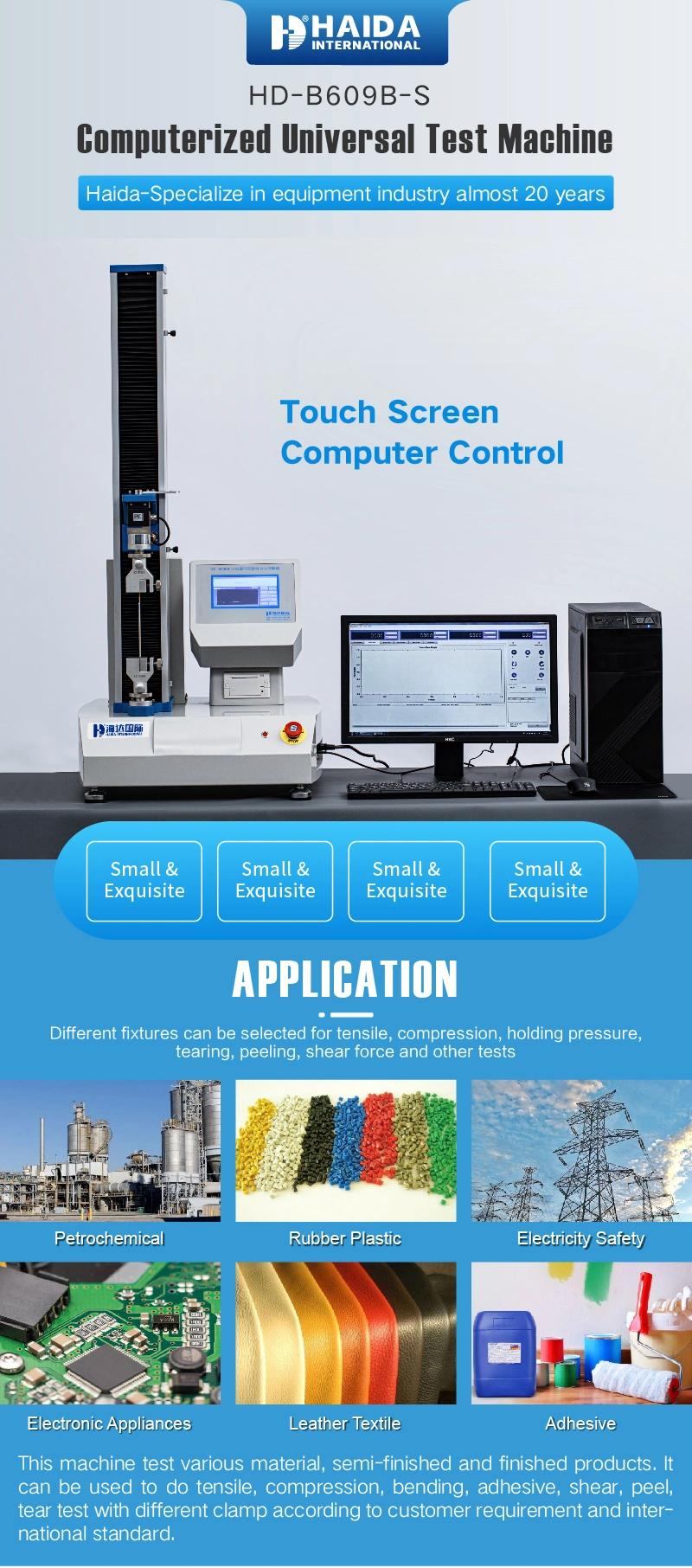

 Applications:

1. Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.
2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample
5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Product Features:

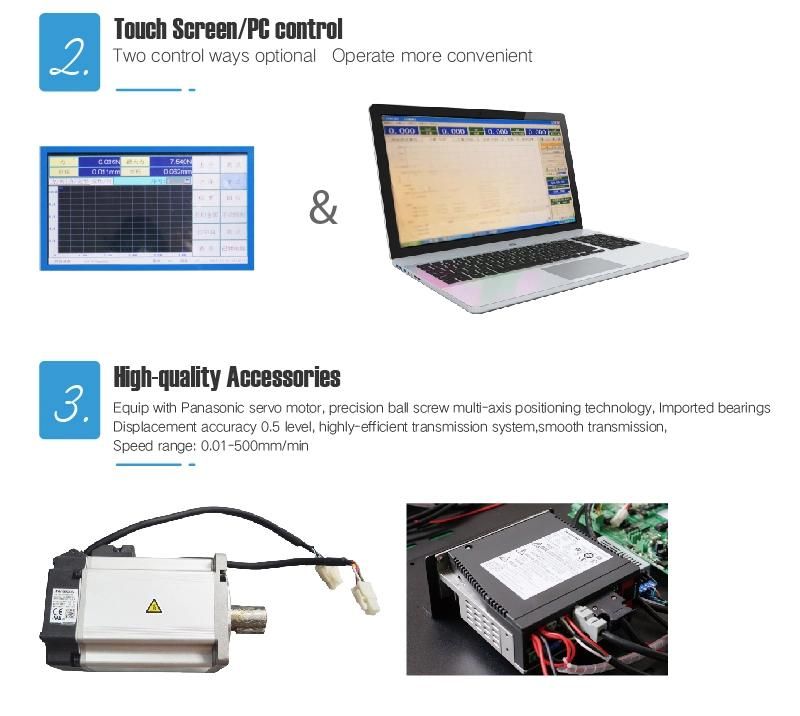

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)

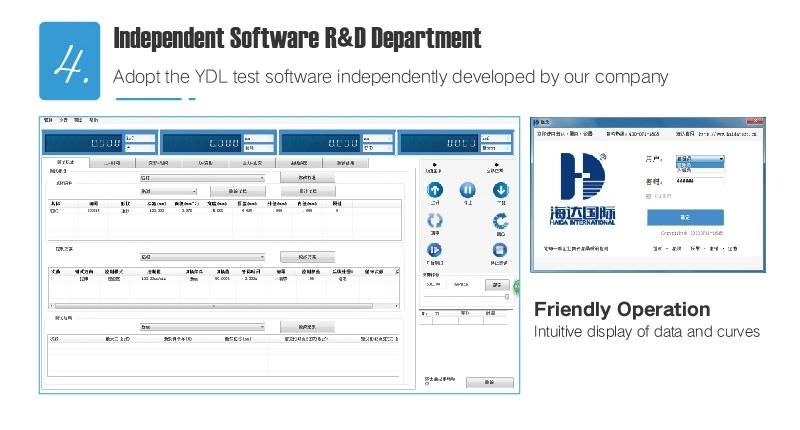

2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.

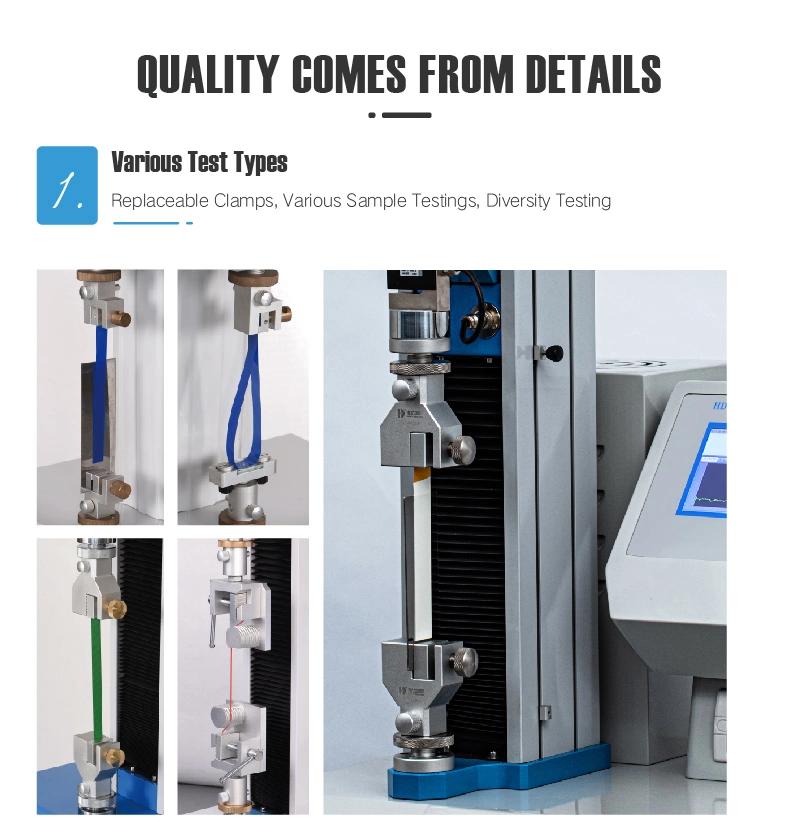

Tensile Tester Fixtures:



The Introduction Of Haida:
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


Our Services:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
    --24 Hours online service for your consult.
    --Help choose right model,and a series of service,person,advise.
2. Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convienent.
    --Promptly production and delivery,inform you in time.
    --Can provide invoice value as you like to decrease your tax.
3. After sale service
   --1 year warranty service and all life maintenance.
   --Technical Egineer are avalible for oversea trainning.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan
4. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc

Customer Feedback:



FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
