• Model NO.：GD2673
• Display mode：digital display
• Transformer capacity：750VA
• Timing：1-99s
• Dimension：405*150*360mm
• Usage：Voltage withstand testing machine
• Delivery time：10 working days
• Transport Package：Wooden Case
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan China
• HS Code：9030332000
• Production Capacity：20000 Pieces,Year

Basic Info.

Model NO. GD2673 Display mode digital display Transformer capacity 750VA Timing 1-99s Dimension 405*150*360mm Usage Voltage withstand testing machine Delivery time 10 working days Transport Package Wooden Case Specification ISO, SGS Trademark HV Hipot Origin Wuhan China HS Code 9030332000 Production Capacity 20000 Pieces/Year

Product Description

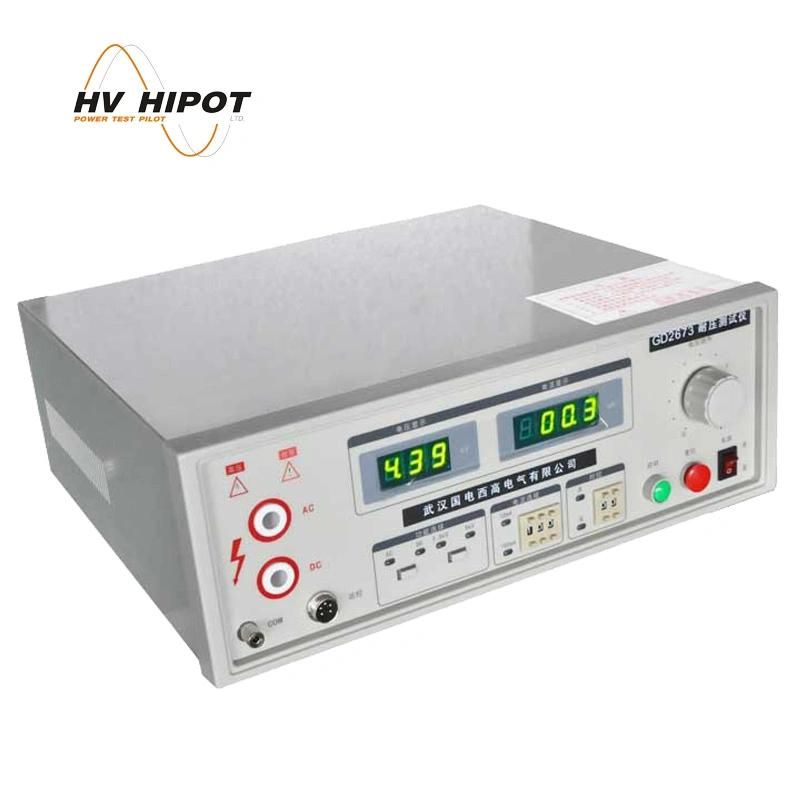

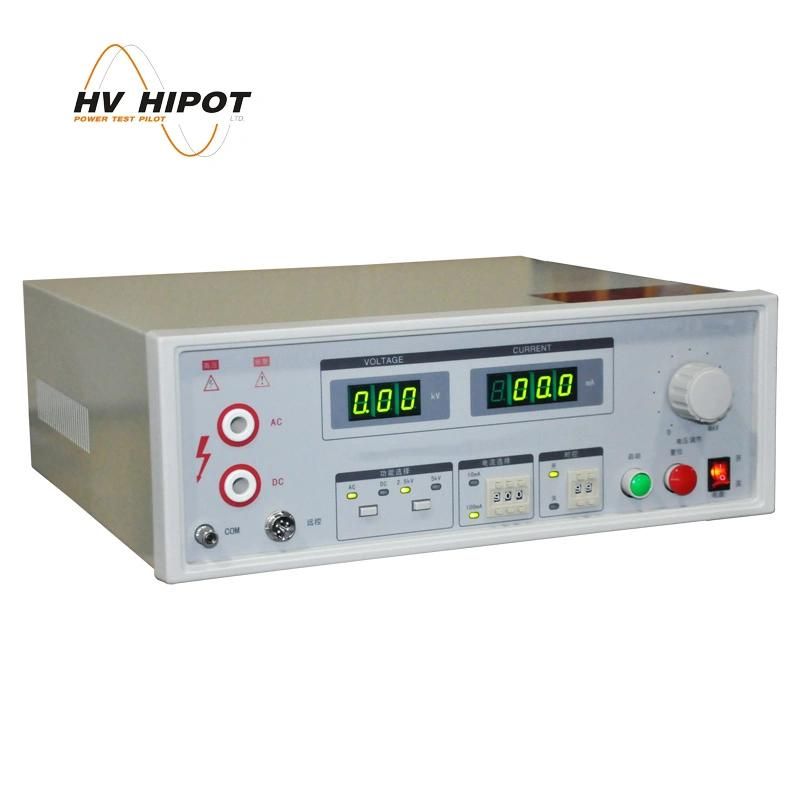

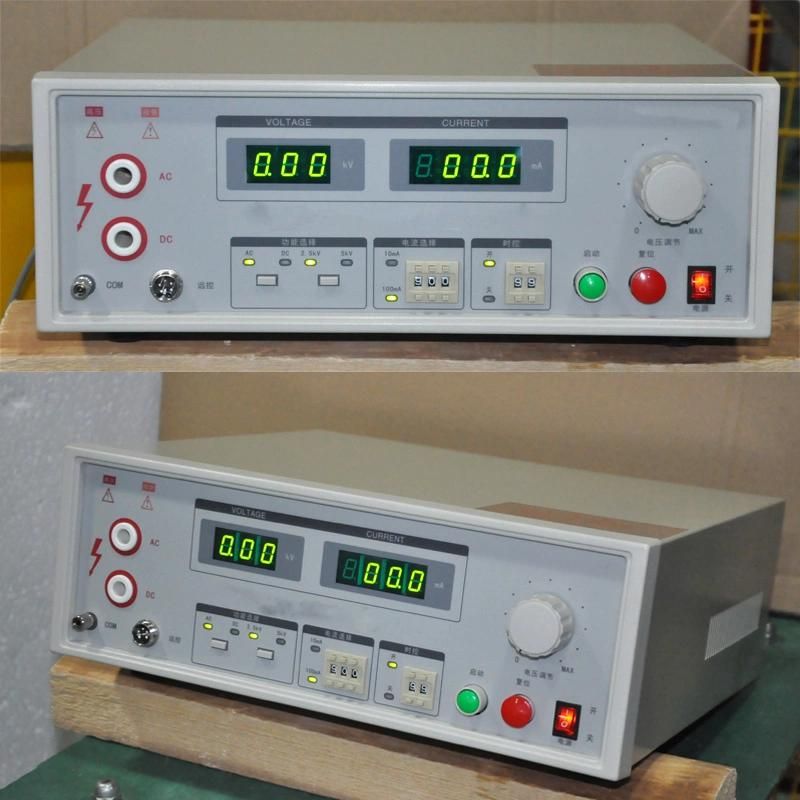

Series AC Hipot Test Insulation Strength Test Equipment




GD2673 series Voltage Withstand Tester can be used for withstand voltage test of household appliances, electronic equipment, electronic components, wire and cable and other electrical products. Transformer output power is not less than 750VA.


Features

• With discriminant function of qualified and unqualified.
• Sound and light alarm function.
• Test time automatic control function.
• Simple operation, beautiful appearance, fast over current cutting speed.

Specifications


Output voltage	0~2.5KV/5KV(AC/DC); accuracy: ±(3%+3digits)
Cut-off current	AC:0.5~100mA DC:0.5~20mA; ±(5%+3digits)
Display mode	digital display
Transformer capacity	750VA
Timing	1-99s
Dimension	400*150*360mm


More Products:

Model	Output Voltage and Accuracy	Cut off Current and Accuracy	Display	Transformer capacity
GD2673	0~2.5KV/5KV(AC/DC) Error ±(3%+3 digital)	AC:0.5~100mADC:0.5~20mA Error ±(5%+3 digital)	Digital	750VA
GD2673B	0~2.5KV/5KV (AC) Error ±(3%+3 digital)	AC:0.5~100mA Error ±(5%+3 digital)	Digital	750VA
