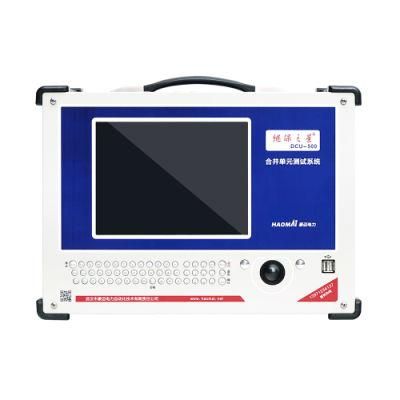

Six-Phase Portable Automatic Electric Protective Smart Substation Mu Protection Relay Test Kits
Haomai Electric Power Automation Co., Ltd.- DC Output Accuracy：≤0.1%( Within Main Range)
- Phase：Range: 0~360°accuracy:0.1°resolution: 0.0;
- Transport Package：Standard Export Wooden Package
- Specification：378× 260× 100mm
- Trademark：relaytestar
- Origin：Hubei China
Base Info
- Model NO.：Relaytestar DCU-500
- Production Capacity：1000set,Month
Description
Product Description
EMC The Product Adheres To The Electromagnetic Compatibility (EMC) Directive 2004/108/EC(CE Conform). IEC 61326-1; IEC 61000-6-4; IEC 61000-3-2/3 Safety The Product Adheres To The Low Voltage Directive 2006/95/EC(CE Conform). IEC 61010-1 MU Test System DCU-500 can output analog signal, SV message, GOOSE message, FT3 message to merging unit as standard channels, and acquire these standard channels inside. The tested Merging Unit receives standard channel output simultaneously, after processing it will be sent to Tester via SV or FT3 mode. MU Tester will compare tested channel and standard channel, then get amplitude, frequency and phase error of Merging Unit automatically. The main test modules are as following: Ratio Error & Phase Displacement Error Test: Company Profile
Harmonic Accuracy Test
Time & Message Characteristic Test
SV Fault Test
GOOSE Edit Test
