• Model NO.：HZ1721
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Name：Automatic Interfacial Tension Tester
• Measuring Range：0-200mn,M
• Accuracy：0.1%( Test Result)±0.1 Mn,M
• Mains Voltage：AC220V±20% 50Hz±10%
• Maximum Power Dissipation：20W
• MOQ：1
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9024109000
• Production Capacity：1000 PCS,Month

Basic Info.

Model NO. HZ1721 Control Computer Control Weight 0-100Kg Power Source AC220V Name Automatic Interfacial Tension Tester Measuring Range 0-200mn/M Accuracy 0.1%( Test Result)±0.1 Mn/M Mains Voltage AC220V±20% 50Hz±10% Maximum Power Dissipation 20W MOQ 1 Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9024109000 Production Capacity 1000 PCS/Month

Product Description

Oil Interfacial Surface Tension Meter Du Nouy Ring Tensiometer ASTM D971

HZ1721 Mechanical Surface/Interfacial Tension Meter is an instrument that uses physical methods for liquid surface/interface tension testing. It is easy to use and can quickly and accurately measure the surface and interfacial tension values of various liquids. In the petroleum, chemical, scientific research and other departments, the instrument has been widely used. It can clearly express the principle and process of surface tension testing by the ring method, adopts a purely mechanical structure, is durable and has relatively low cost, so it is especially suitable for colleges and universities' laboratories and teaching use.

The HZ1721 mechanical surface /interface tension meter adopts a sophisticated mechanical structure. It is composed of torsion wire, platinum ring, sample holder, dial, vernier pointer, bracket, lever frame, fine-tuning worm gear pair, test worm gear pair and sample holder. During operation, the torsion force is applied to the torsion wire through the rotation of the worm gear pair, and the surface tension of the platinum ring in contact with the liquid surface is balanced by the torsion force.When the torque of the torsion wire continues to increase and the surface of the liquid to be measured is broken, the twisting angle of the torsion wire, which is the value indicated by the cursor on the dial, is multiplied by the correction factor to obtain the measured surface/Interfacial tension value of the liquid.

This product implements JB/T9388-2002 "Technical Conditions of Interfacial Tension Meter", ISO1409-1995 "Determination of Surface Tension of Plastics, Rubber, Polymer Dispersion and Latex", SH/T 1156-95 "Surface Tension Measurement of Synthetic Latex" And other technical standards.

HZ1721 Main technical parameters of HZ1721 mechanical surface tensiometer/interface tensiometer:

1. Measuring range: 0~180mN/m

2. Reading accuracy: 0.1mN/m

3. The basic test method: use the ring method to test the surface/ interfacial tension

4. Platinum ring specifications: platinum ring R9.55mm, platinum wire r0.3mm

5. Dimensions: 240×270×325 (mm)

6. Net weight of the instrument: 4.3Kg

IV.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

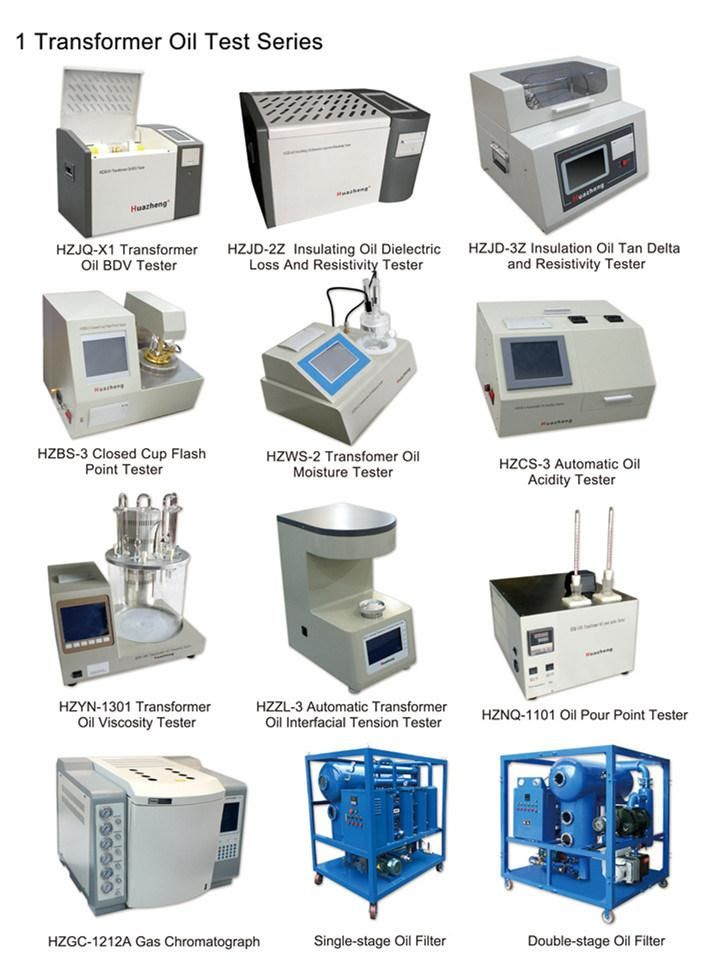

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
