Universal Testing Machine Single Column

Jinan Hiwoc Group Co., Ltd.
  • Mass Scope of Workpiece：Could Bd Customized
  • Type：Universal Testing Machine

Base Info

  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：Customzied
  • Oil Cylinder Position：None
  • Maximum Test Force (Kn)：05 1 2 5 10 20 50 100
  • Test Machine Level：1 or 0.5
  • Operation Mode：Microcomputer Control (Chinese or English Software
  • Force Measurement Range：2%-100% or 4%-100% of The Maximum Test Force
  • Deformation Display Error：±1% or±0.5%
  • Test Stroke：Could Be Customized
  • Working Environment：Temperature -45 ° C, Humidity 20% -80%
  • Protection Function：Overload Protection, Limit Protection
  • Meet The Standard,：Accord to National GB,T2611 Standard
  • OEM：Support
  • Transport Package：Plywood Case
  • Specification：700x580x1720mm
  • Trademark：Hiwoc
  • Origin：China
  • Production Capacity：50000sets,Year

Description

Main SpecificationWDW05   1   2   5StructureSingle-arm structureMaximum test force (KN)05   1   2   5   10   20   50   100Test machine level1 or  0.5Operation ModeMicrocomputer control (Chinese or English software operation)Force measurement range2%-100% or 0. 4%-100% of the maximum test forceTest force accuracy±1% or ±0.5%  better than indication valueDeformation display error±1% or±0.5%Speed adjust rangeStandard model:0.01-500mm/min
High configuration:0.001-500mm/minTest Stroke≥600mm(could be customized according to customer need)Test space adjustment mechanismE-type imported AC servo motor, low noise synchronous belt driveMeet the standard,Accord to national GB/T2611 standardProtection functionOverload protection, limit protectionSupply power220VWorking environmenttemperature -45 ° C, humidity 20% -80%Fixture toolAccording to the customer's requirementsOverall450x260x1470mmWeight120KG

Welcome to our factory to inspect!!

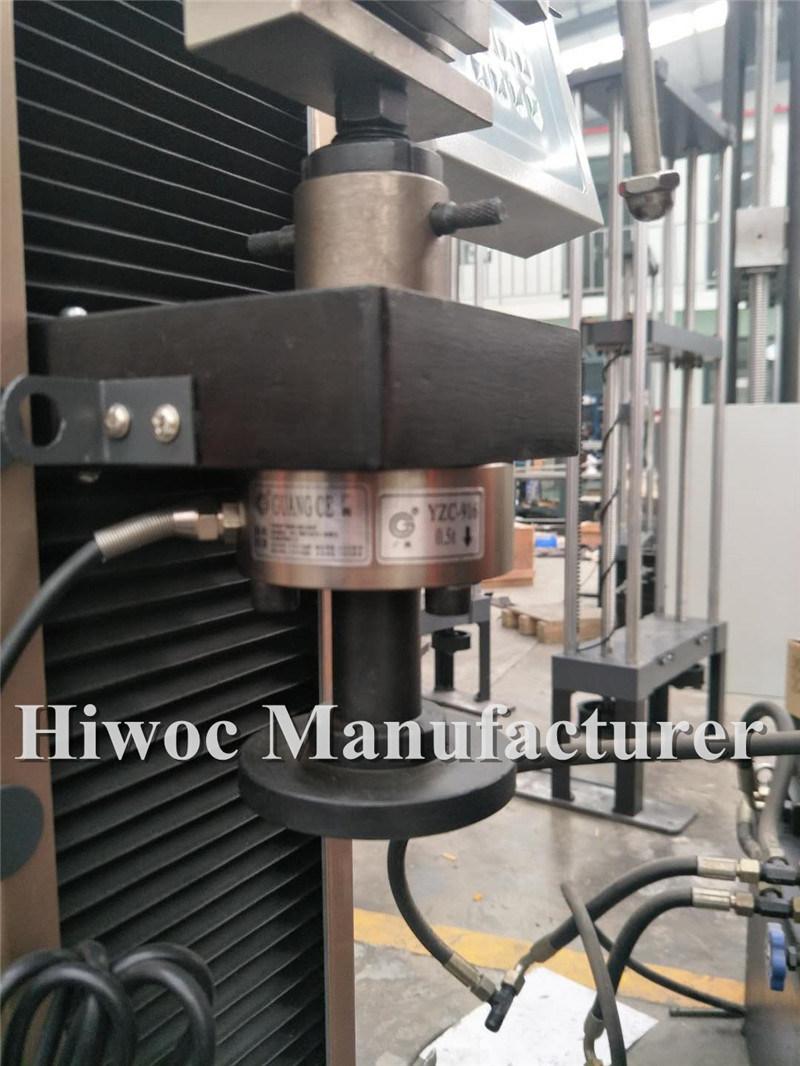

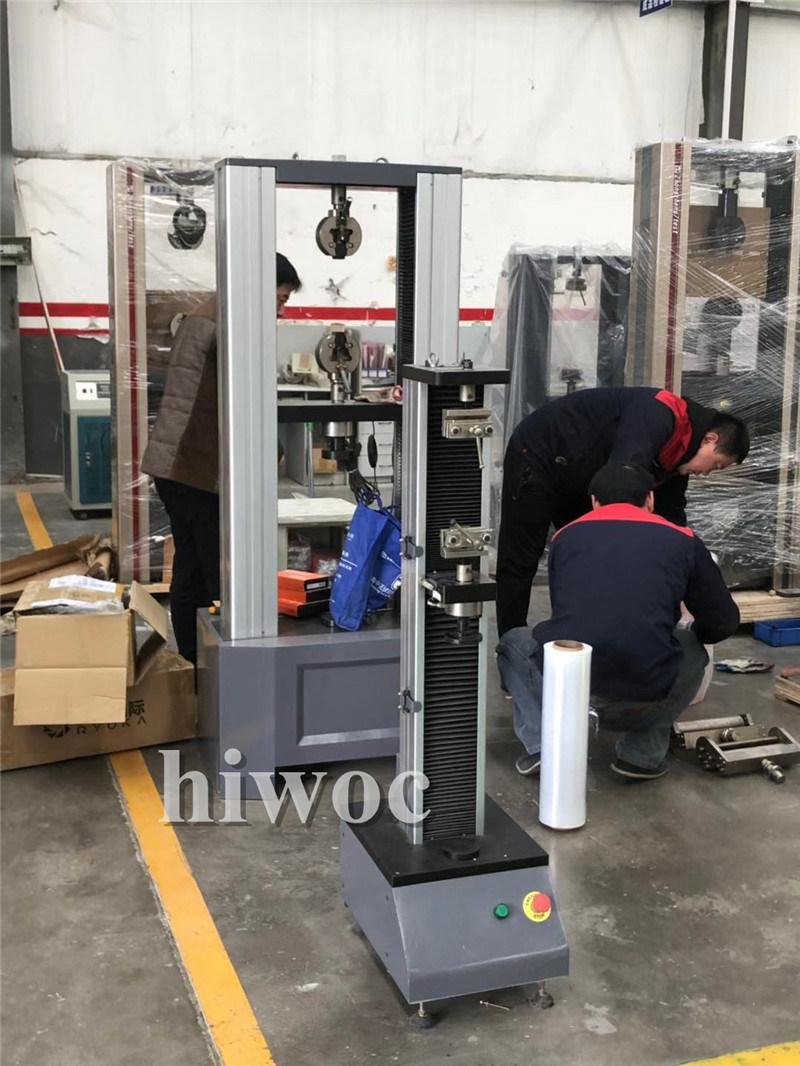

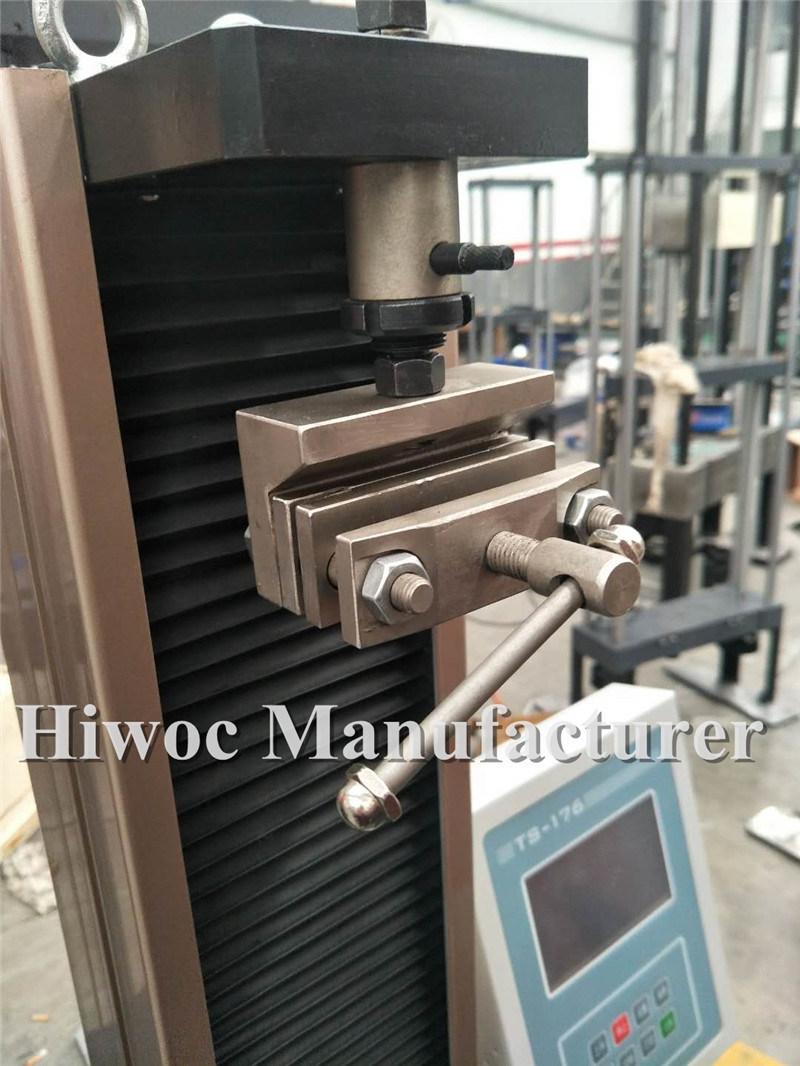

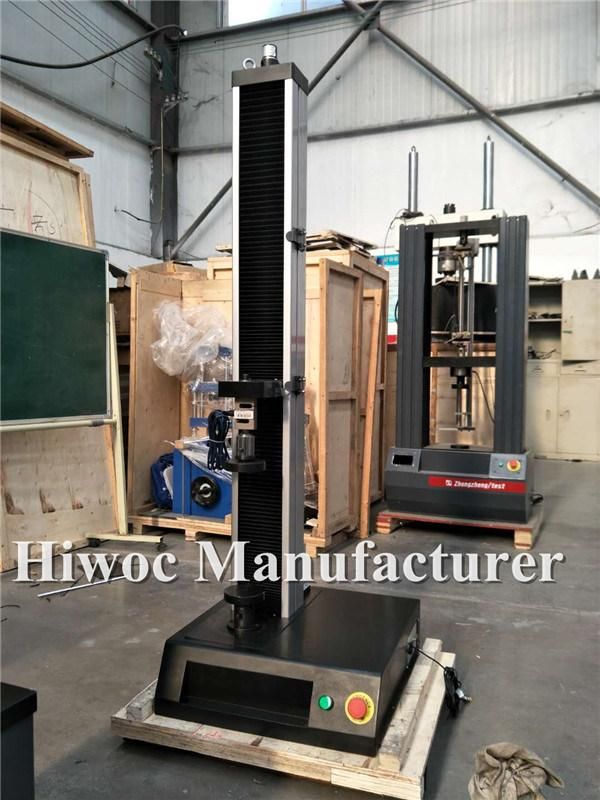

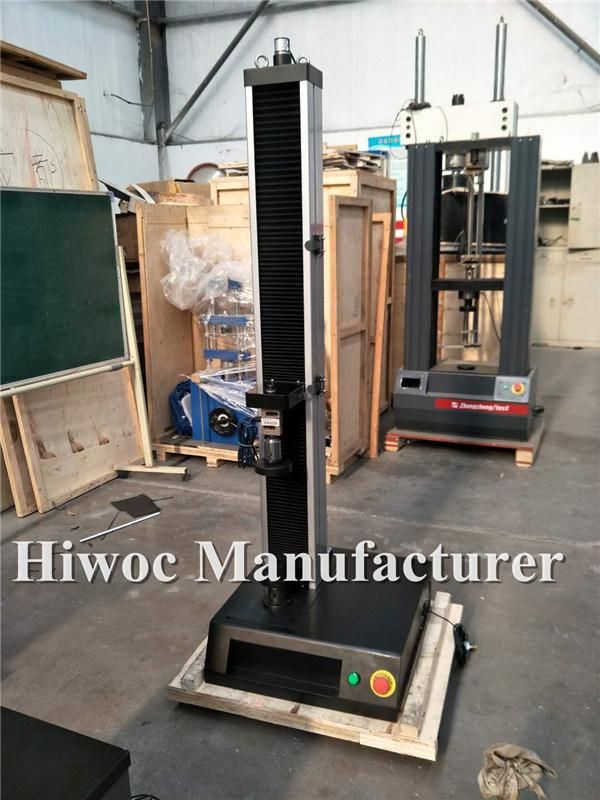

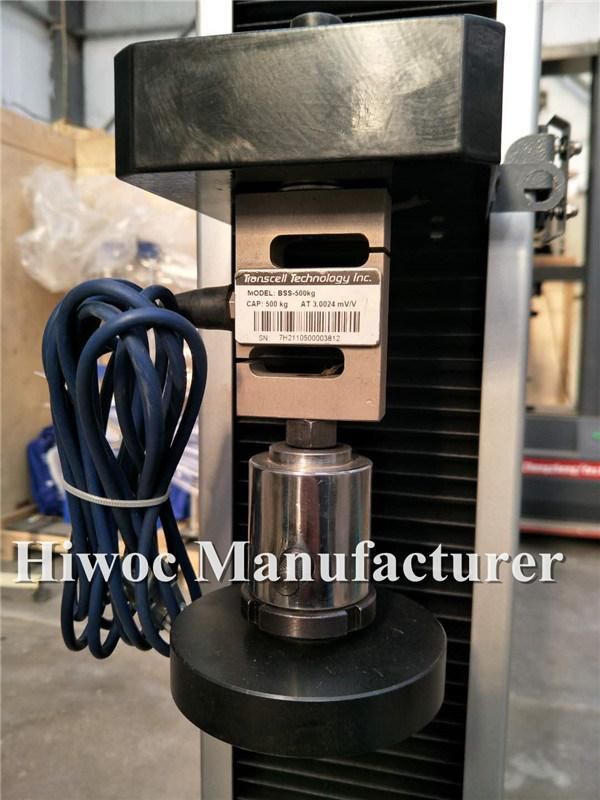

machine detaisl
Universal Testing Machine Single Column
Universal Testing Machine Single Column
Universal Testing Machine Single Column
Universal Testing Machine Single Column
Universal Testing Machine Single Column
Universal Testing Machine Single Column

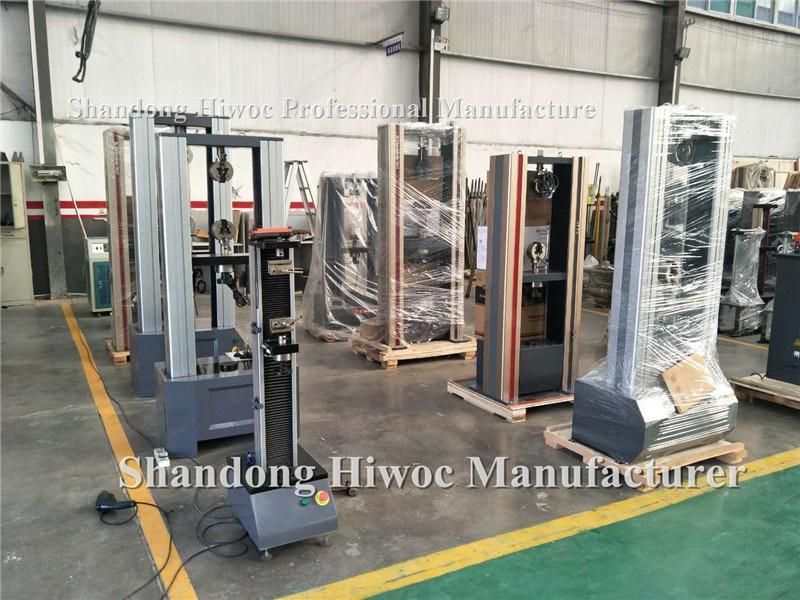

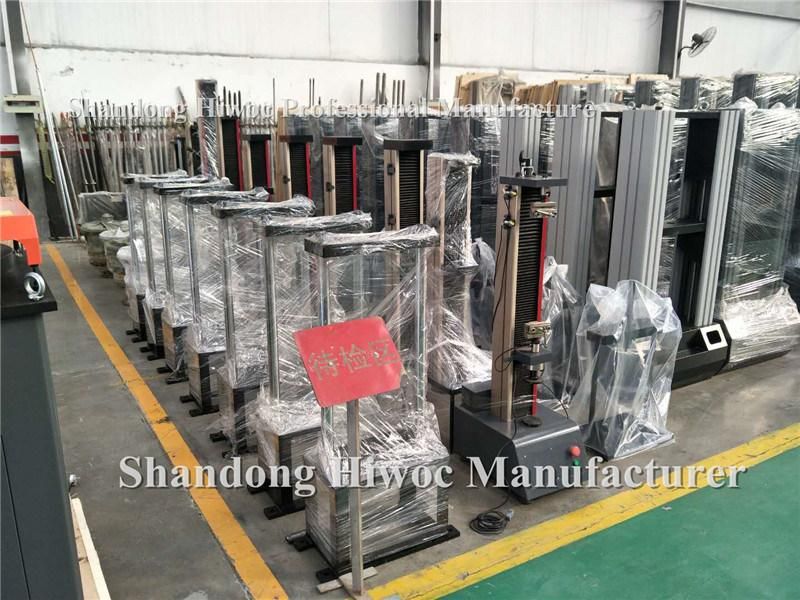

other machines shows:
Universal Testing Machine Single Column
Universal Testing Machine Single Column
Universal Testing Machine Single Column

Universal Testing Machine Single Column
