Burst Test Equipment Transient Electromagnetic Simulator with Calibration Kit

Shanghai Shinegil Trading Co., Ltd.
  • Max Diameter of Workpiece：2000mm
  • Mass Scope of Workpiece：<900kg
  • Type：Electrical Fast Transient Inteference Test
  • Maxcapacity：Na
  • Accuracy Grade：Na
  • Load Way：Electronic Load

Base Info

  • Model NO.：EFT S4
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Na
  • Product Name：Electrical Fast Transient Generator
  • Application：Eft, Burst Inteference Test
  • Standard：IEC, En 61000-4-4
  • Power Supply：220V 50Hz
  • Output Voltage：5kv
  • Warranty：1 Year
  • Custom Service：Available
  • Certificate：ISO9001
  • Delivery：Within 5 Days
  • Calibration Certificate：Available
  • Transport Package：Export Wooden Case
  • Specification：weight: 45kg
  • Origin：Shanghai

Description

ModelEFT S4Output Voltage0.1~ ±5KVFrequency1KH~1.2MHz ±10% , continuous adjustablePulse PolarityPositive/ negative/ alternatingRunning Time1~9999s, continuous adjustableInternal Resistance50Ω ±10%Pulse Front Edge5ns ±30%Pulse Width50ns ±30% (50Ω load),
35ns~150ns (1kΩ load)Pulse Number1~255, continuous adjustablePhase Angle0~359°synchronous, asynchronous, or automaticBurst Period0.15~99.99s, continuous adjustableCoupling/ Decoupling networkBuilt-in, single-phase three-wire, 16A
(customer specific on demand)Power SupplyAC 220V ±10% 50/ 60HzAmbient Temperature15ºC~35ºC
Company Information
Shanghai EMCSOSIN/ Shanghai SHINEGIL is a professional supplier that specialized in R&D, manufacturing and selling EMC testing equipments. We've been committed to the electromagnetic compatibility (EMC) testing field, offering professional equipments which are widely used in electronics manufacturing, electric power, new energy, telecommunication, aerospace, teaching, renewable energy, automotive and other industries, as well as scientific research. We provide customers with professional EMC system integration solutions. We are also ISO9001 certified.
Our self-developed electrostatic discharge (ESD) generator, electrical fast transient (EFT)/ burst generator, lightning surge generator, voltage dips simulator and so on enjoy a high reputation both at home and abroad. To provide best service and create value for customers is our eternal pursuit!
Burst Test Equipment Transient Electromagnetic Simulator with Calibration Kit

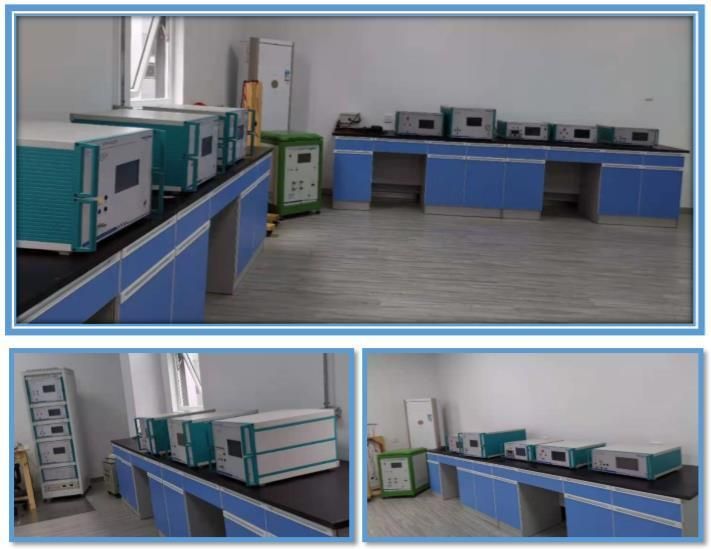

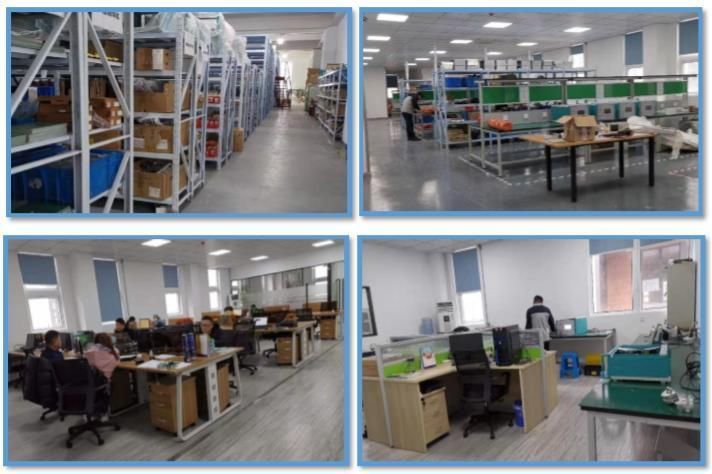

Manufactory and Office
Burst Test Equipment Transient Electromagnetic Simulator with Calibration Kit
Burst Test Equipment Transient Electromagnetic Simulator with Calibration Kit
Burst Test Equipment Transient Electromagnetic Simulator with Calibration Kit

Qualification and Certificate
Burst Test Equipment Transient Electromagnetic Simulator with Calibration Kit

Our Client
Burst Test Equipment Transient Electromagnetic Simulator with Calibration Kit

Packing
Burst Test Equipment Transient Electromagnetic Simulator with Calibration Kit

Our Service
1) Our product engineers and application technicians answer various questions and deal with emergencies in real time.
2) Professional engineers will guide the installation & debugging of equipments so that users can operate devices independently and solve problems in daily test.
3) Free warranty for 1 year and lifelong maintenance.
4) Free upgrade service for the users is available as per international standard updates requirements.

If you have any further query on EMC/ EMI testing equipments, electrical fast transient/ burst generators, pls do not hesitate to contact us at linda<at>shinegil<dot>com

We look forward to working with you sincerely!
