• Model NO.：HD-E808
• Product Name：Salt Spray Test Chamber
• Warranty Period：12 Months
• Delivery Time：15 Days After Receive The Order
• pH：Nss Acss6.5~7.2 Cass 3.0~3.2
• Spray Quantity：1.0~2.0 Ml , 80cm2 , Hr
• Brine Temperature：35°c±1°c
• Test Chamber Temperature：Nss Acss 35±1°c Cass:50±1°c
• Temperature Precision：±1°c
• Design Criteria：Cns, JIS, K5400, Z2371, ASTM
• Power：Single Phase,AC220V
• Transport Package：Strong Wooden Case
• Specification：ISO9001: 2008, CE
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9031809090
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HD-E808 Product Name Salt Spray Test Chamber Warranty Period 12 Months Delivery Time 15 Days After Receive The Order pH Nss Acss6.5~7.2 Cass 3.0~3.2 Spray Quantity 1.0~2.0 Ml / 80cm2 / Hr Brine Temperature 35°c±1°c Test Chamber Temperature Nss Acss 35±1°c Cass:50±1°c Temperature Precision ±1°c Design Criteria Cns, JIS, K5400, Z2371, ASTM Power Single Phase,AC220V Transport Package Strong Wooden Case Specification ISO9001: 2008, CE Trademark Haida Origin Dongguan, China HS Code 9031809090 Production Capacity 150 Sets/Month

Product Description

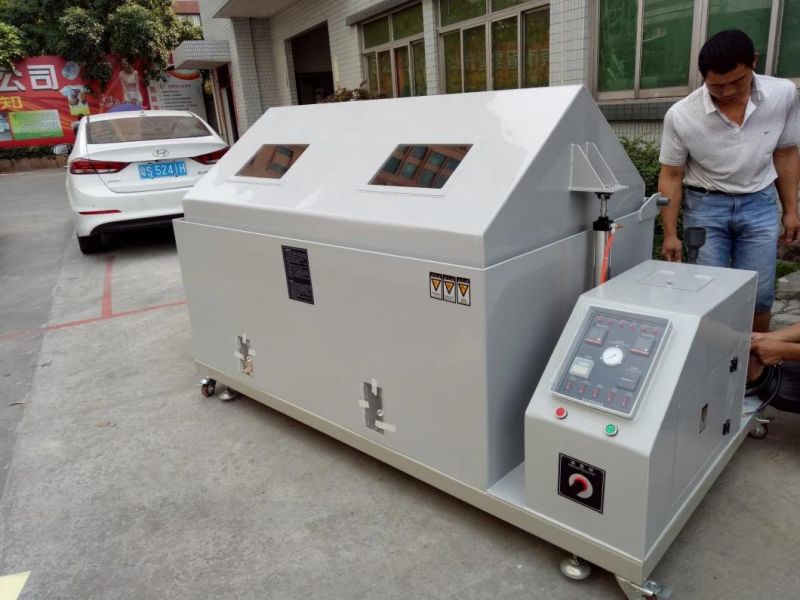

                     Automatic Salt Fog Spray Corrosion Resistant Tester

Product Description:
Programmabe Salt spray Chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.

Design standard:
CNS:3627,3385,4159,7669,8886;
JIS:D0201,H8502,H8610,K5400,Z2371;
ISO: 3768,3769,3770;
ASTM: 8117,B268.

Chamber Structure:
1. Salt spray chamber cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample.

2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow.

3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.

General Specification:
Packaging Dimensions: (WxDxH) 2250*1450*1600mm
Power supply source: single-phase, 220V±10%, 50Hz (can be appointed)
Gross Weight: 250kg
HS Code: 8479899990

Standard Parameters

Model	HD-E808-120
Internal Dimension (W*D*H)	1200*1000*500mm
External Dimension(W*D*H)	2050*1250*1400mm
Equipment Material	P.V.C rigid plastic plate, thickness 8mm
Sample tray	Diameter 10mm glass fiber rod, anti-rust V-shape plastic steel to make sure sample in 15~30 degree inclined
Temperature Range	Room temperature ~ 55ºC
Temperature Fluctuations	≤±0.5ºC
Temperature Uniformity	≤±2ºC
Temperature Precision	±1ºC
Spraying method	Continuous and Periodic spray type
Test Chamber Temperature	Salt Spray Method (NSS ACSS)35±1ºC  Corrosion-resistant Testing Method (CASS) 50±1ºC
Saturated air Barrel Temperature	Salt Spray Method (NSS ACSS)47±1ºC  Corrosion-resistant Testing Method (CASS) 63±1ºC
Brine Temperature	35ºC±1ºC
Spray Quantity	1.0~2.0 ml / 80cm2 / hr
PH value	Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume	600L
Brine Tank Capacity	40L
Multiple Safety Protection Devices	Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories	Testing Salt/ Measuring tank/Nozzle Equipment x 1 set
Air source	1HP Air pump (provided by buyer)
Test criteria	ASTM B117-08, ISO 9227...

Product Features:
1, Durable hard 8 mm PVC construction, anti-corrosion and easy to clean.
2, Reservoirs with mixing system on stand.
3, Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4, Exposure zone lined with corrosion-resistant PVC sheets.
5, Clear cover allows viewing of test conditions.
6, Peaked cover prevents dripping of condensation onto samples.
7, Water seal and water level protection system.
8, Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9, Automatic DI water fills to humidifying tower.
10, Digital temperature control.
11, Integral over-protection on heaters.
12, Low water cut-off protection on humidifying tower.
