• Model NO.：GW-003
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-003
• Grip：Max.12 Sets
• Bending Angle：90 Deg
• Bending Speed：100+,-3 Cpm
• Size：50*61*55 Cm
• Transport Package：Wooden Case
• Specification：110*56*62cm
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Pieces,Year

Basic Info.

Model NO. GW-003 Loading Method Static Load Display Digital Control Manual Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-003 Grip Max.12 Sets Bending Angle 90 Deg Bending Speed 100+/-3 Cpm Size 50*61*55 Cm Transport Package Wooden Case Specification 110*56*62cm Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

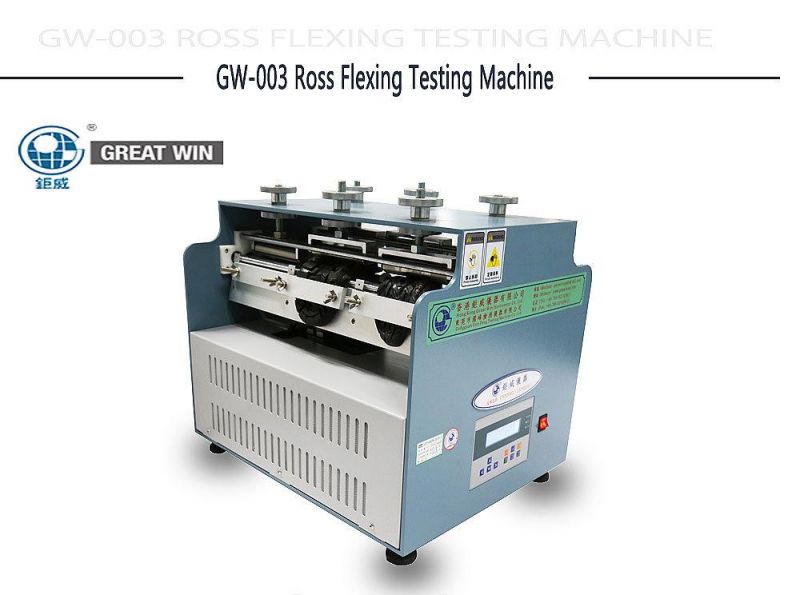

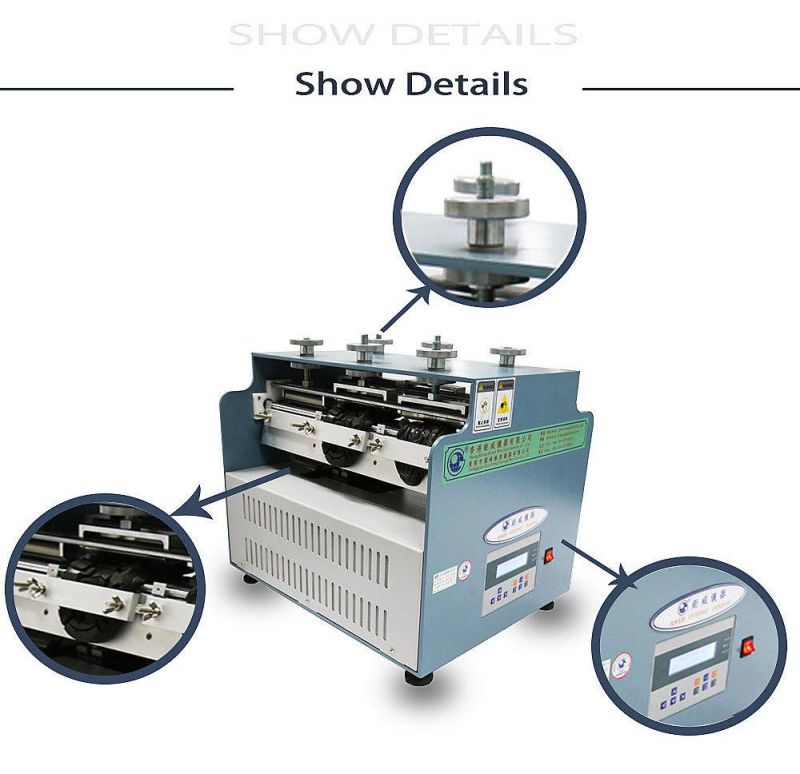

ROSS sole flexing testing machine/equipment(GW-003)

•Brief introduction:
 Specially test the flex-   endurance of rubber, sole, PUetc. materials. Observe whether the specimen develops the damag e and crack at right angle after repeated bending.

•Technical specifications:

Model	GW-003 ROSS flexing testing machine
Grips:	can test 12 specimens at the same time
Bending angle:	90 degrees
Bending speed:	100±3 CPM
Size:	500 * 610 * 550 mm
N.W.:	105 kg

•Standard for :
ASTM - D1052, ISO - 5423, SATRA TM60

•Attached accessories:
1pc standard die mould
1pc hole puncher

What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
