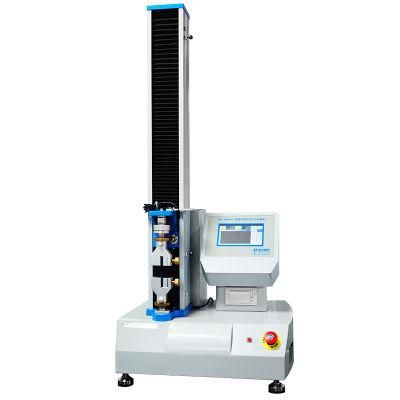

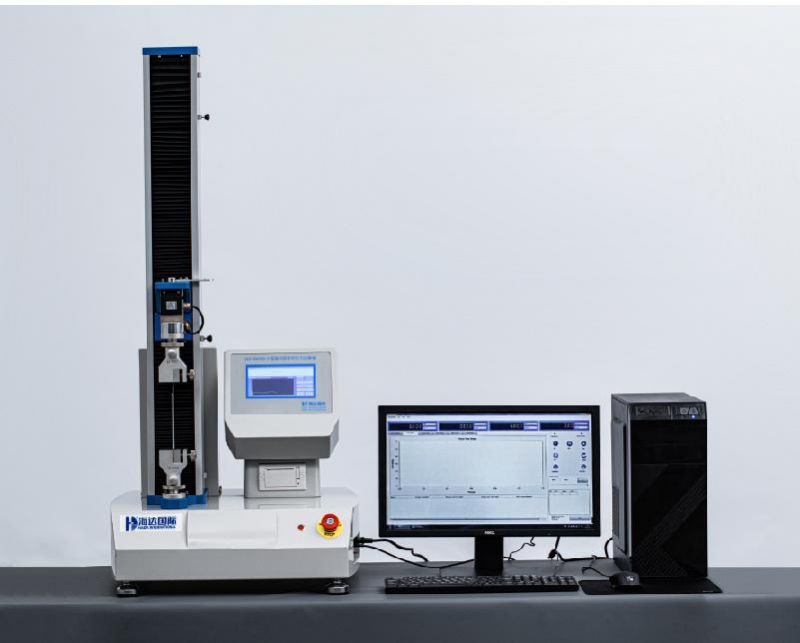

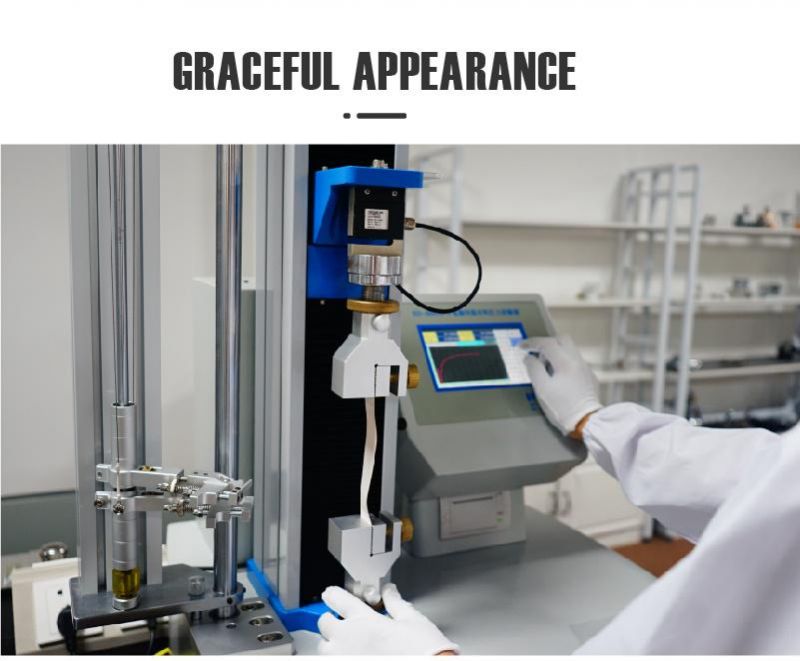

Economical Single Column Universal Tensile Testing Machine
Dongguan Haida Equipment Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Rubber Tensile Testing Equipment
- Maxcapacity：200kg
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：HD-B609B-S
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Product Name：Tensile Strength Testing Machine
- Test Speed：0.1-500mm,Min(Convertible)
- Motor：Panasonic Servo Motor
- Panasonic Servo Motor：0.001mm
- Stroke：1000mm
- Sensor：Celtron Load Cell
- Operate and Display：Computer
- Screw：High Precise Ball Screw
- Power：One Phase, AC 220V
- Load Cell：Celtron Sensor
- Transport Package：Strong Wooden Case
- Specification：Atsm
- Trademark：HaiDa
- Origin：Guangdong China
- HS Code：9024109000
- Production Capacity：60sets,Month
Description

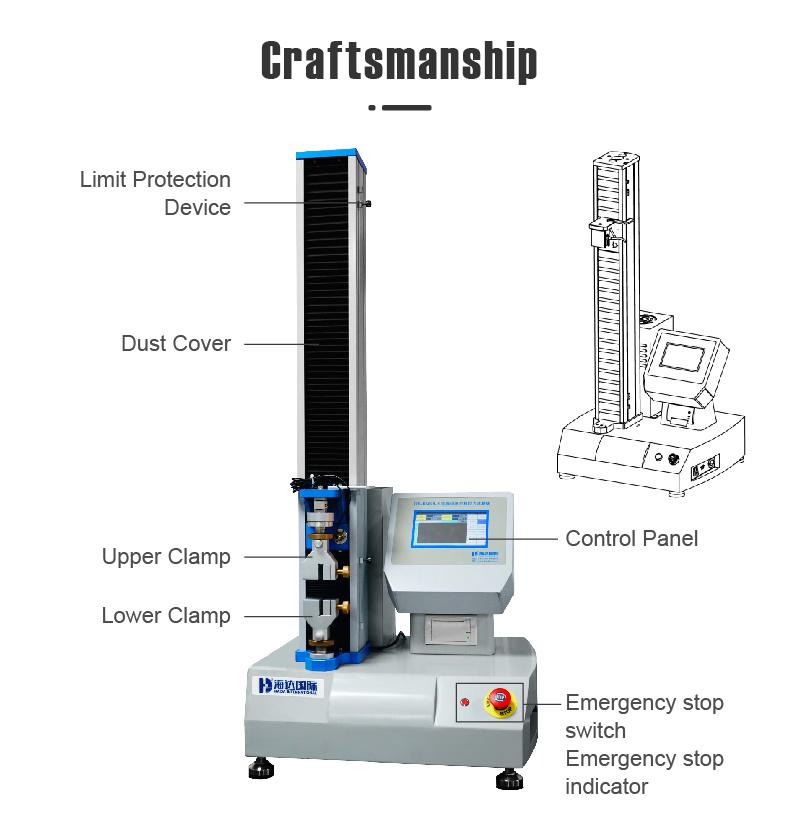

Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
Advantage:
1.High-Tech, Low Noise
2.Humanized Industrial Design, Easy To Place And Transport
Security Protection System
Technical Engineer Support After Service
Manufacturers Direct Sales, Factory Prices
1 Year Warranty , Free The Use Of Equipment Manual
Sales In Stock, Fast Delivery Time
Applications:
- Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.

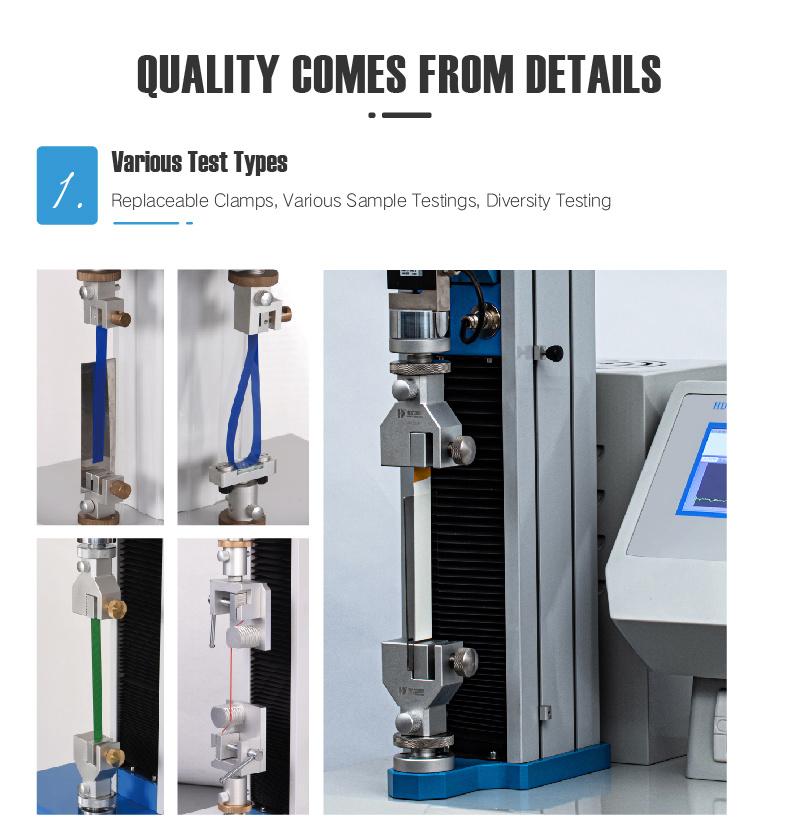

- Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
- Deformation under defined load: Test deformation under defined load of tested sample
- Load under defined deformation: Test load under defined deformation of tested sample
- Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
Product Features

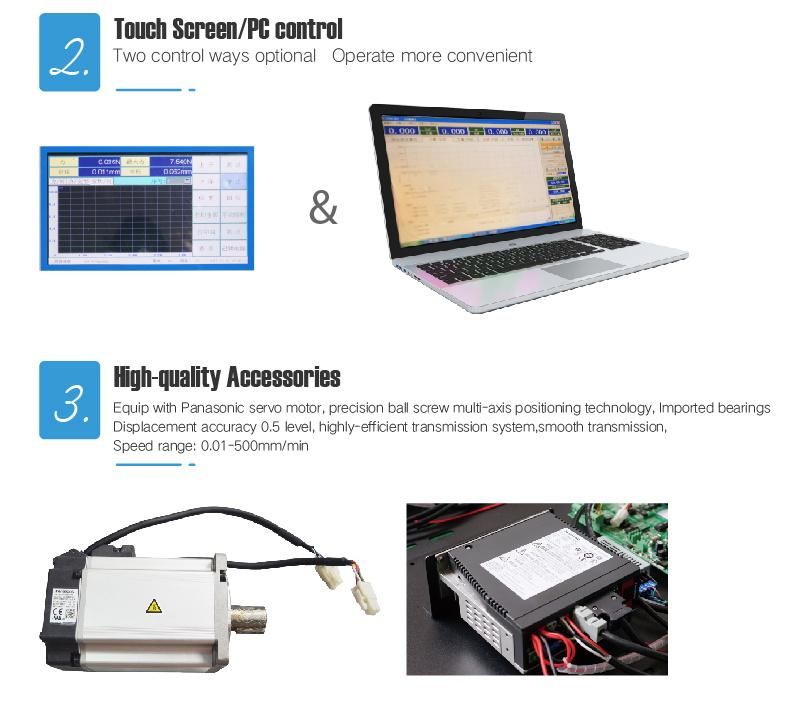

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)

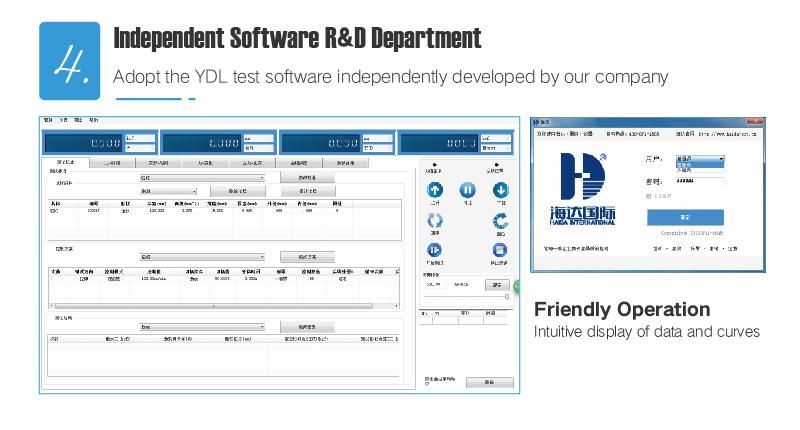

2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm

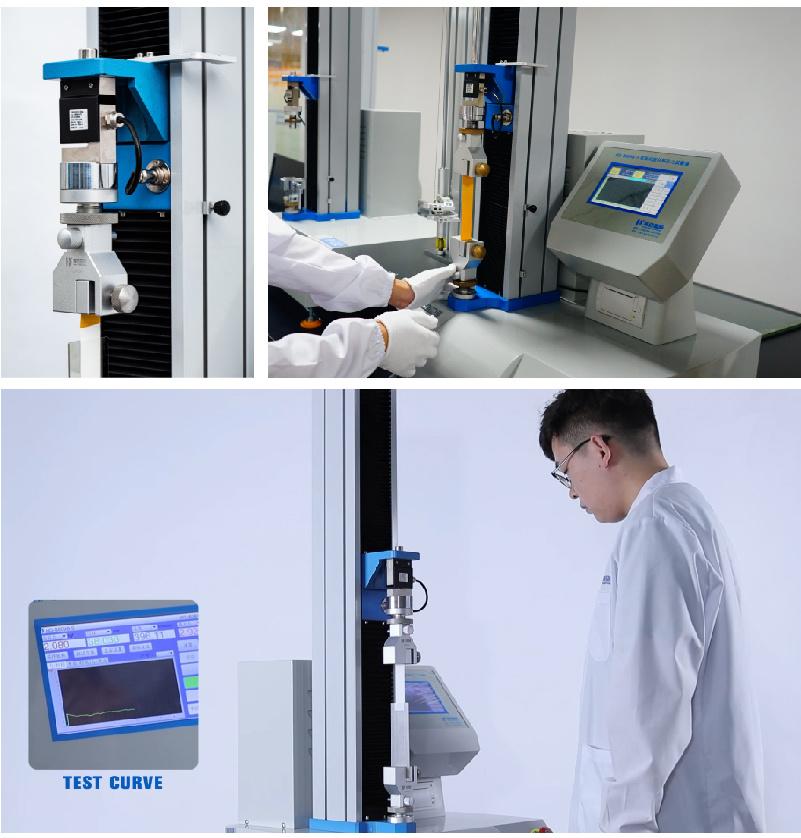

5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.
Thanks letter from one of our customer
After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
